FLUX Full Series
Product Comparison

Units
ModelAdorbeamoHEXA
Dimensions637 x 488 x 226 mm615 x 445 x 177 mm1110 x 670 x 273 mm
Weight19 kg22 kg58 kg
Work Area430 × 300 mm300 x 210 mm730 x 410 mm
Work Area DepthWithout Prism: 30 mm With Prism: 20 mm With Extension Base Add-on: 155 mm45 mm125 mm Autofocus: 60 mm
Camera Preview Area430 x 300 mm300 x 195 mm730 x 395 mm
PowerAC 110V / 220VAC 110V/220VAC 110V/220V
Speed1 - 400 mm/s1 - 300 mm/s1 - 900 mm/s
Touch Panel5" HD LCDHD LCD Touch ScreenHD LCD Touch Screen
Camera8 MPHD CMOSHD CMOS
I/OWi-Fi / USB Ethernet (by USB Adaptor) Direct Network Cable (by USB Adaptor)Wi-Fi / Ethernet / Direct Network CableWi-Fi / USB / Ethernet / Direct Network Cable
Laser Spec10W / 20W Diode Laser 2W Infrared Laser30W CO2 Laser60W CO2 Laser
WavelengthDiode: 405 nm Infrared: 1064 nm10640 nm10640 nm
Resolution1000 DPI 300 DPI / Printing Single Color 150 DPI / Printing Blended Color1000 DPI1000 DPI
Supported Materials

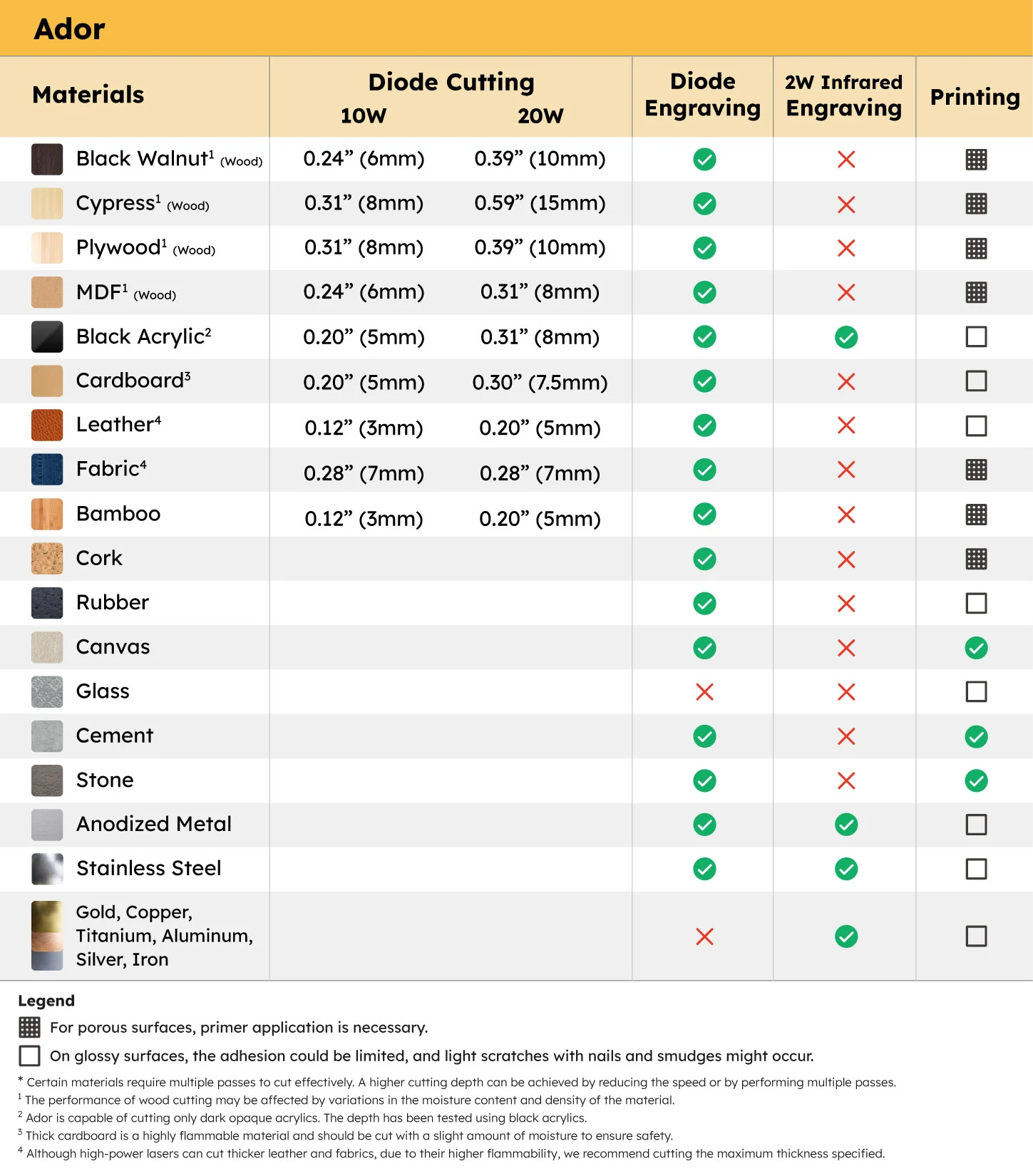

Ador Material List

Ador Material List

beamo Material List

beamo Material List
MaterialsCuttingEngraving
Black Walnut1 (Wood)0.20″ (5mm)✓
Cypress1 (Wood)0.28″ (7mm)✓
Plywood1 (Wood)0.20″ (5mm)✓
MDF1 (Wood)0.12″ (3mm)✓
Acrylic0.24″ (6mm)✓
Cardboard20.30″ (7.5mm)✓
Leather30.20″ (5mm)✓
Fabric30.31″ (8mm)✓
Bamboo0.20″ (5mm)✓
Cork—✓
Rubber—✓
Glass—✓
Cement—✓
Stone—✓
Anodized Metal—✓
Stainless Steel—✓Spray paint required

Legend

* Certain materials require multiple passes to cut effectively. A higher cutting depth can be achieved by reducing the speed or by performing multiple passes.

* The maximum cutting depth may decrease after a certain period of usage of the laser tube in CO2 laser cutters.

1 The performance of wood cutting may be affected by variations in the moisture content and density of the material.

2 Thick cardboard is a highly flammable material and should be cut with a slight amount of moisture to ensure safety.

3 Although high-power lasers can cut thicker leather and fabrics, due to their higher flammability, we recommend cutting the maximum thickness specified.

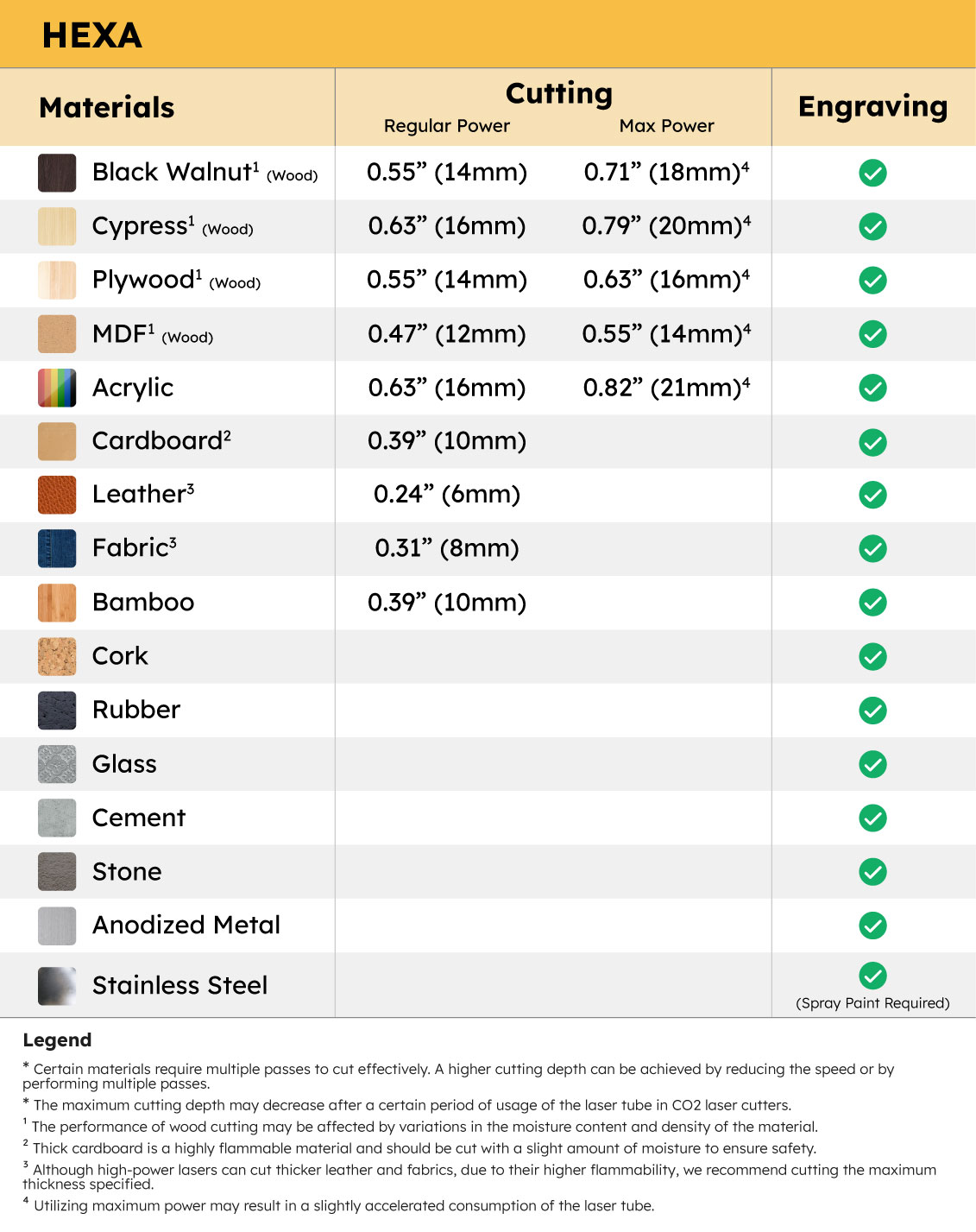

HEXA Material List

HEXA Material List
