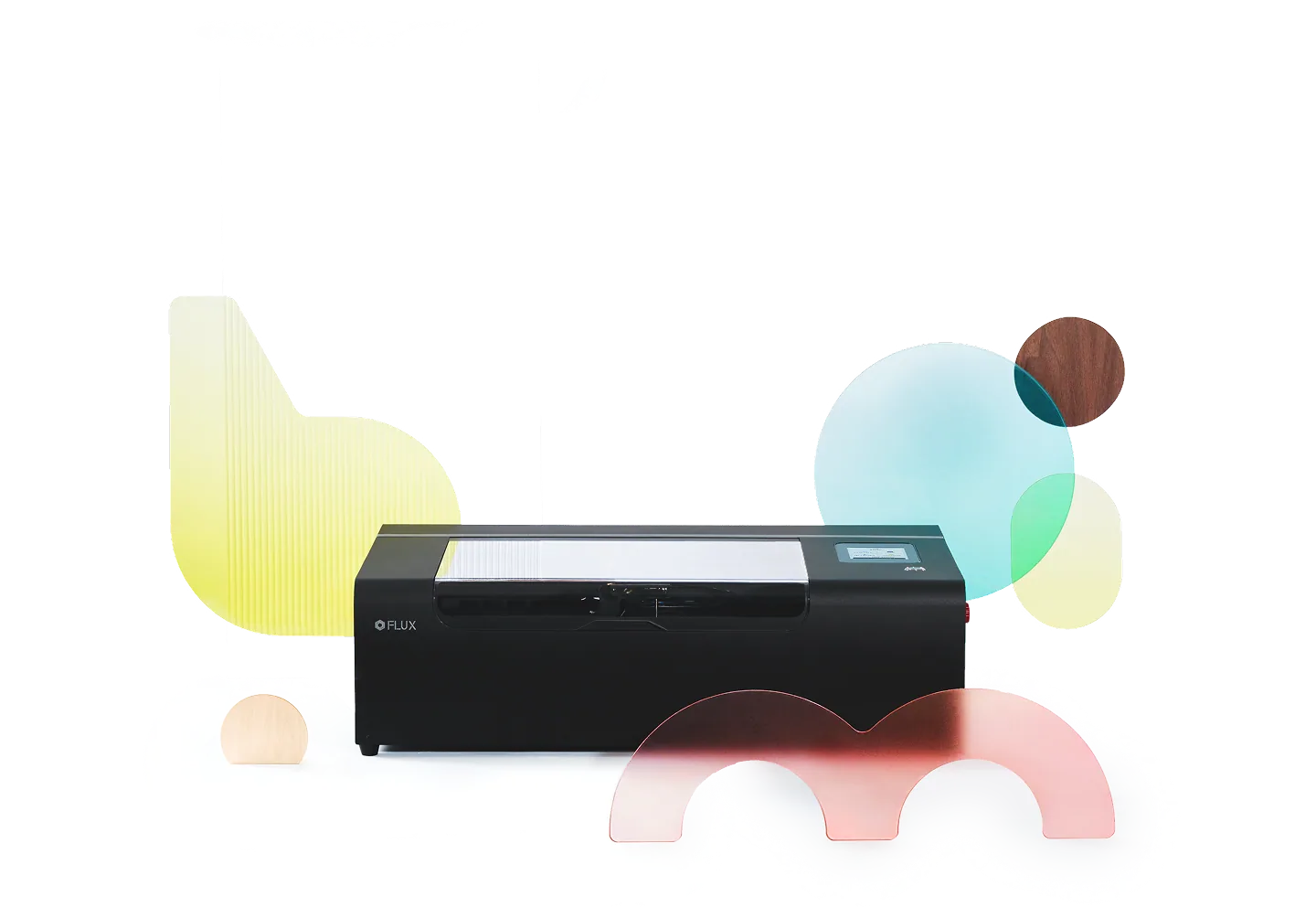

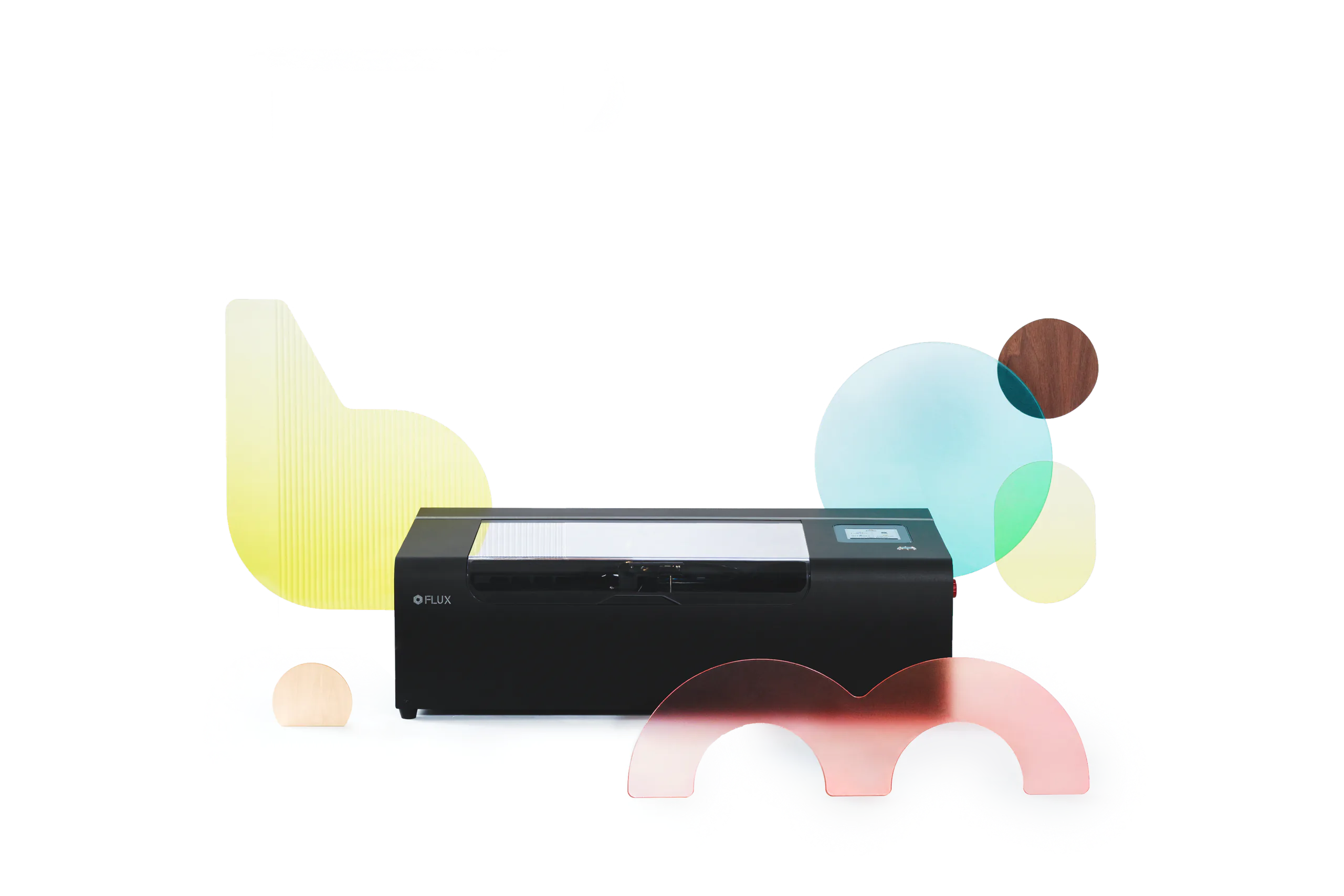

beamo II compact laser cutter surrounded by colorful acrylic objects

beamo II

The Compact CO2 Laser You Loved, Now Built for More

A Small Machine Built for Your Next Big Move

FLUX introduces beamo II, the ultimate evolution of the desktop laser cutter. Blending industrial-grade speed with an expandable dual-laser ecosystem, beamo II features a high-performance 30W CO2 laser and an optional infrared module for metal marking. With its built-in auto-focus and 750mm/s speed, it’s the most powerful, safe, and compact tool for creators and small businesses to expand their crafting limits.

Watch Full Video

Get the highlights.

High-Precision

CO230W

LightBurn Compatible

Class 1 Certification

Top Laser Safety

IEC 60825-1 / EN 50689 Certified laser safety shield

Certified laser safety shield

One ShotHD 8MP Wide-AngleCamera Preview

Camera preview of a cat artwork inside the beamo II work area

Cuts

Transparent &Any Color Acrylic

up to 9/32″7 mm

750 mm/s

max engraving speed

Designed for Longer& Thicker Materials

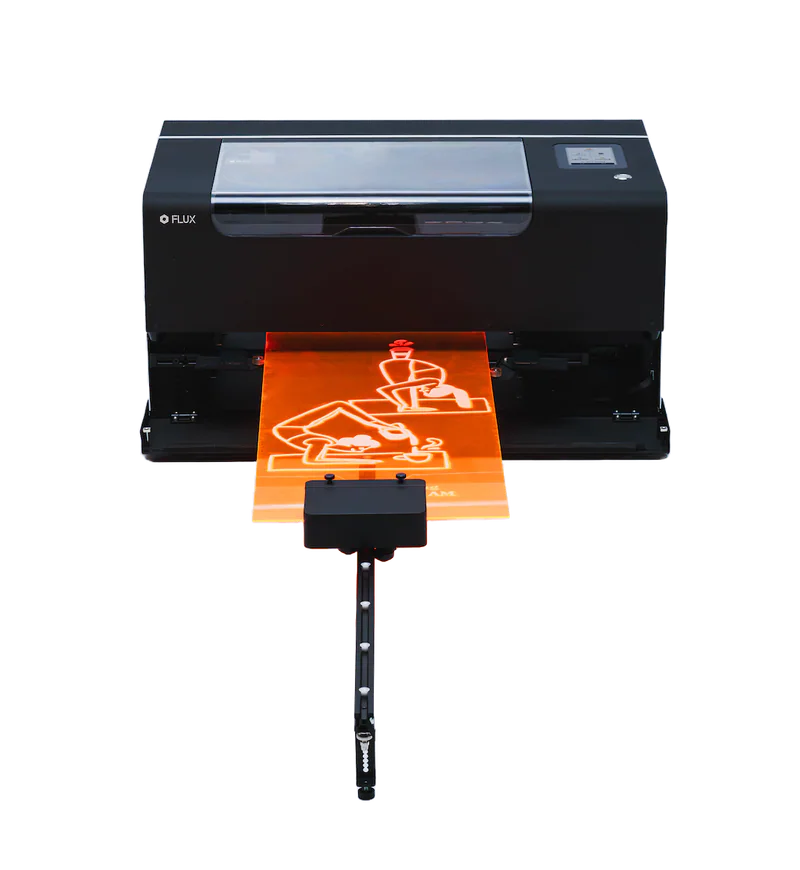

beamo II with the Auto Feeder processing an extended workpiece

1000 mmMax Process Length

155 mmWork Area Depth

*Auto Feederoperates as Class 4

*optional Add-on

Working Area

14.2″ × 9.5″360 × 240 mm

All Metal Solution

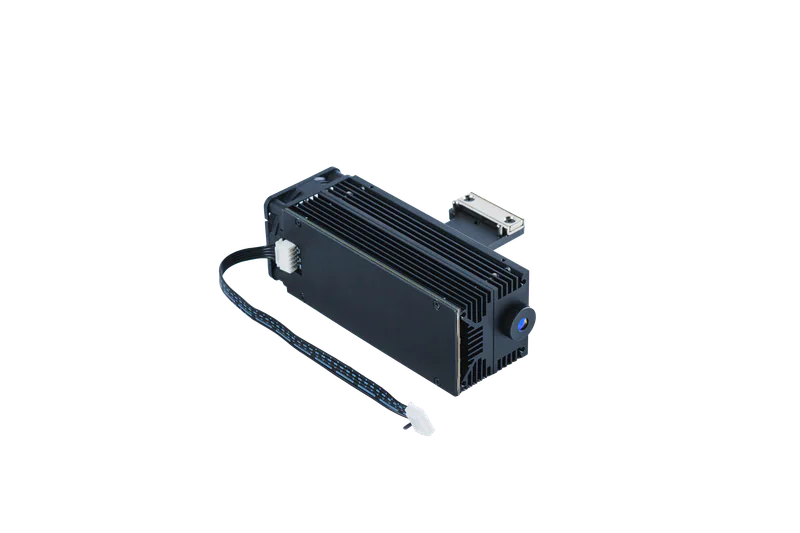

Infrared Laser

*optional Add-on Optional beamo II infrared laser module

Optional beamo II infrared laser module

Ready For Your Custom

Owala & Stanley Business

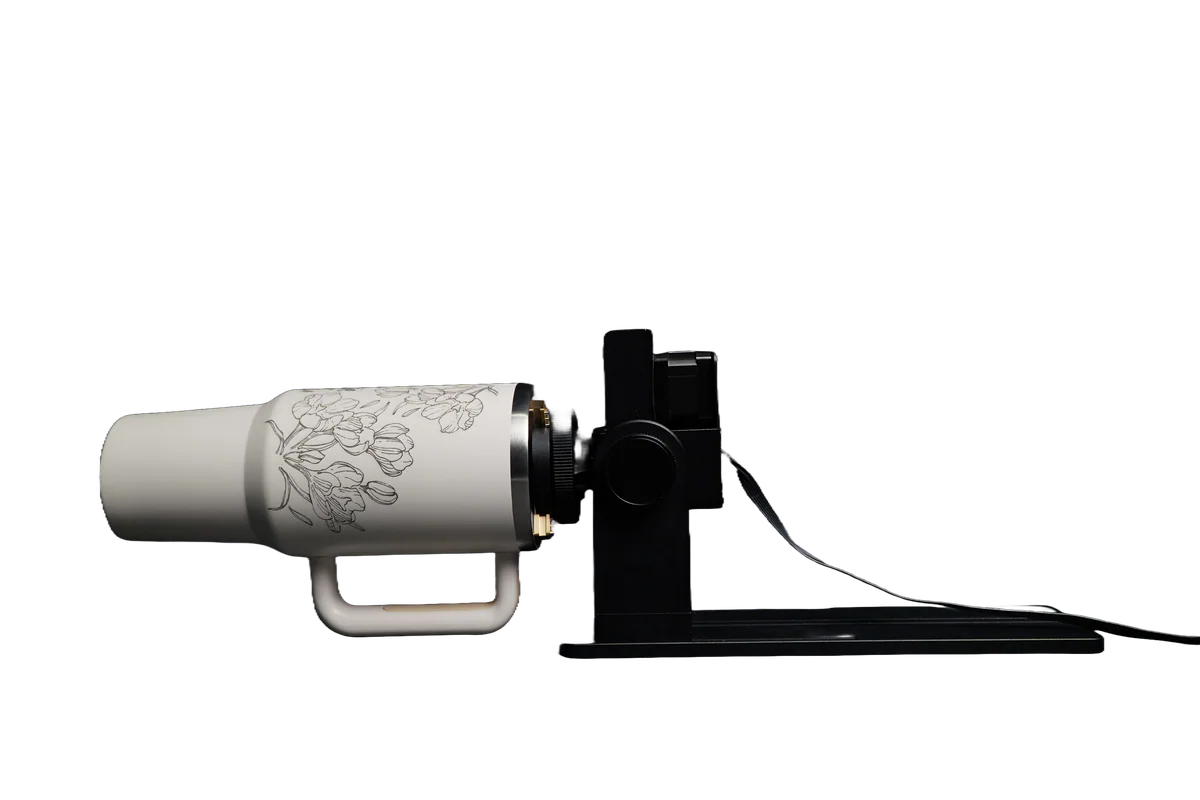

Custom engraved tumbler mounted in a rotary fixture

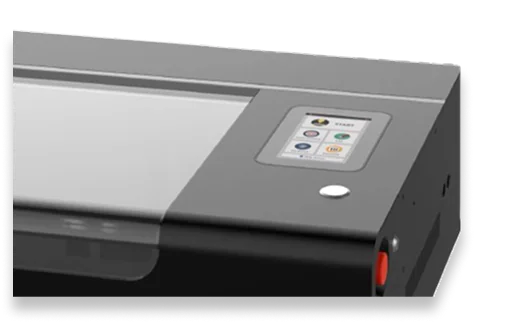

Smart Panel Control

beamo II smart touchscreen control panel

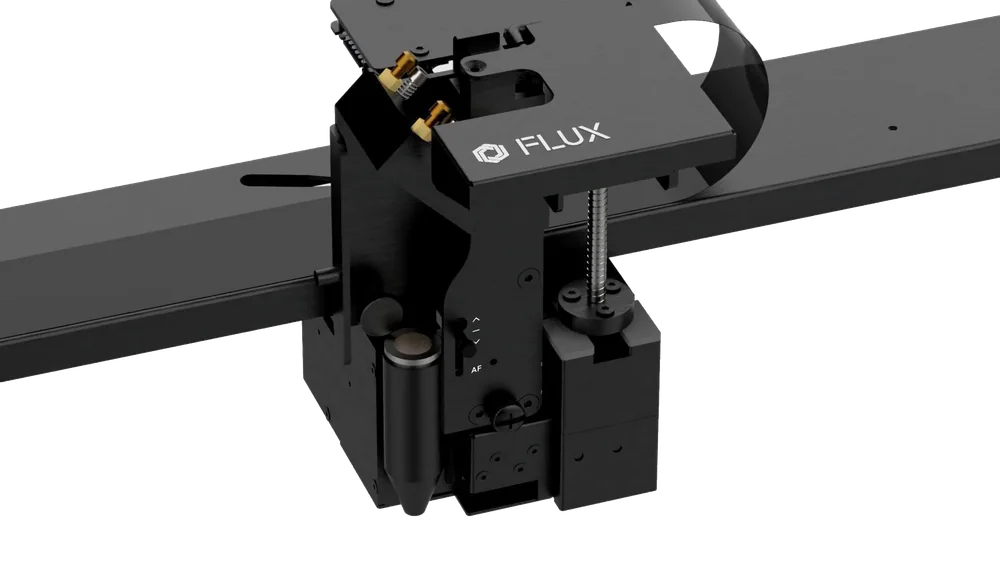

beamo II laser head with autofocus and red light preview

Built-in

Auto Focus & Red Light Preview

High-Precision

CO230W

LightBurn Compatible

Class 1 Certification

Top Laser Safety

IEC 60825-1 / EN 50689 Certified laser safety shield

Certified laser safety shield

One ShotHD 8MP Wide-AngleCamera Preview

Camera preview of a cat artwork inside the beamo II work area

Cuts

Transparent &Any Color Acrylic

up to 9/32″7 mm

750 mm/s

max engraving speed

Designed for Longer& Thicker Materials

beamo II with the Auto Feeder processing an extended workpiece

1000 mmMax Process Length

155 mmWork Area Depth

*Auto Feederoperates as Class 4

*optional Add-on

All Metal Solution

Infrared Laser

*optional Add-on Optional beamo II infrared laser module

Optional beamo II infrared laser module

Working Area

14.2″ × 9.5″360 × 240 mm

Ready For Your Custom

Owala & Stanley Business

Custom engraved tumbler mounted in a rotary fixture

Smart Panel Control

beamo II smart touchscreen control panel

beamo II laser head with autofocus and red light preview

Built-in

Auto Focus & Red Light Preview

See the Big Upgrades

2.5×

Faster Engraving Speed

Speed up your workflow. Jump from 300 mm/s to 750 mm/s and finish projects faster than ever.

Compare to beamo

3×

Faster Camera Preview

Set up in seconds. Use the one-tap wide-angle camera for instant previews and effortless alignment.

Compare to beamo*Preview speed depends on network conditions.

37%

Larger Working Area

Scale up your projects. Enjoy an expanded 360 × 240 mm working area for your larger projects.

Compare to beamo

Upgrade 1 / 6

Cutting Any Color Acrylic isButtery Smooth.

Create vibrant, ready-to-sell acrylic projects effortlessly, straight from your beamo II.

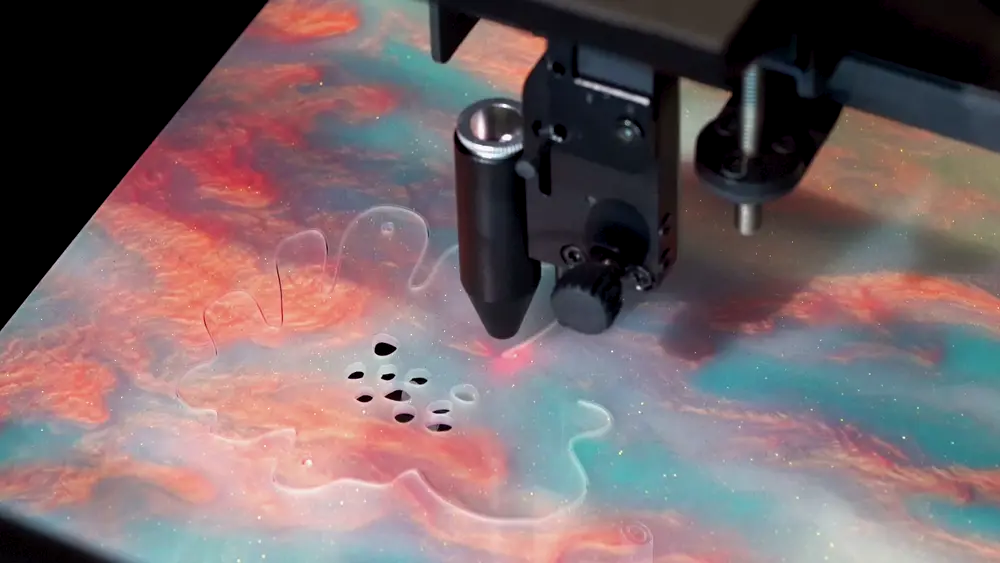

beamo II cutting a detailed design from colorful acrylic

Colorful acrylic project 1 made with beamo II

Colorful acrylic project 2 made with beamo II

Colorful acrylic project 3 made with beamo II

Colorful acrylic project 4 made with beamo II

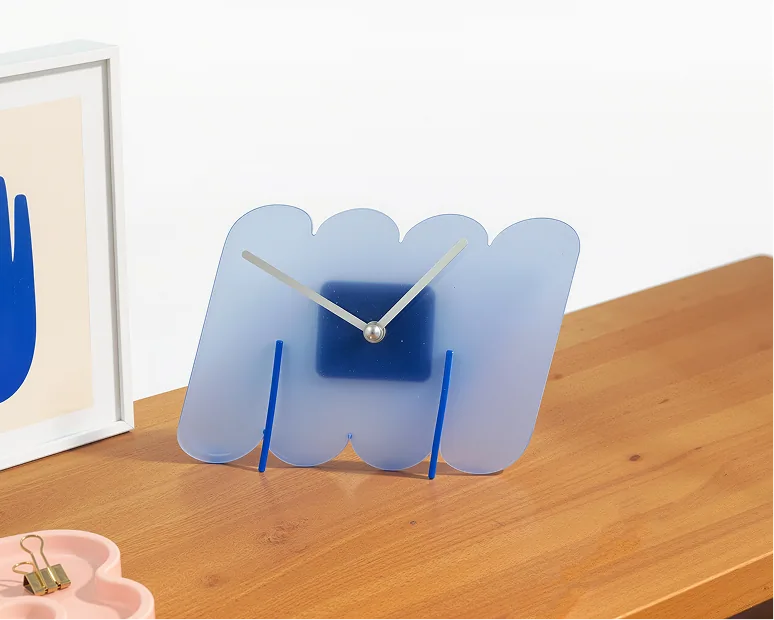

Colorful acrylic project 5 made with beamo II

Colorful acrylic project 6 made with beamo II

Two Laser Sources.One Compact Machine.

Cut acrylic, wood, leather, and more—and engrave surfaces such as glass—with the built-in 30W CO₂ laser. Swap in the optional 2W infrared module for crisp, durable marks on metal and engineering plastics. Two purpose-built laser sources, one compact workflow.

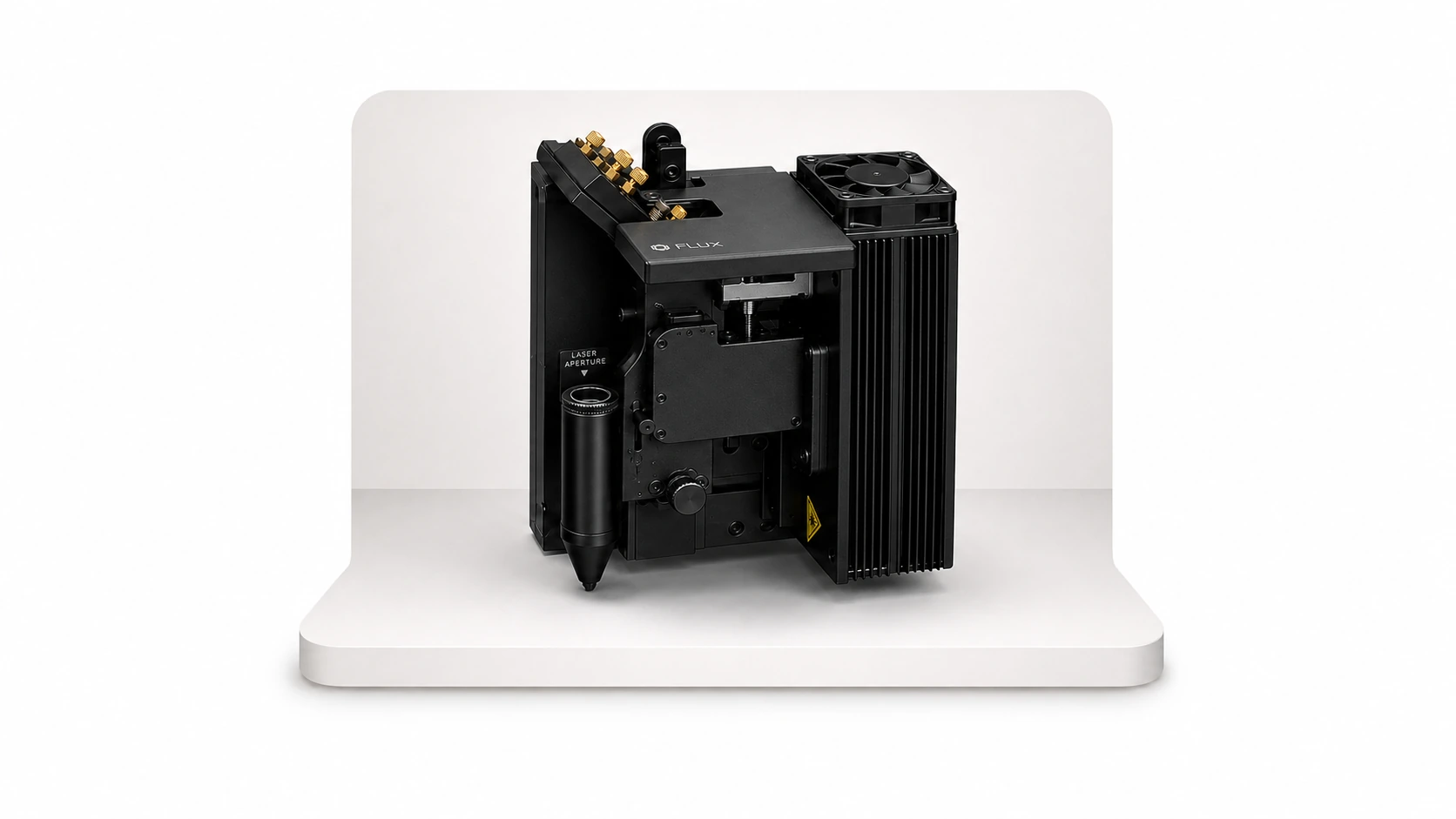

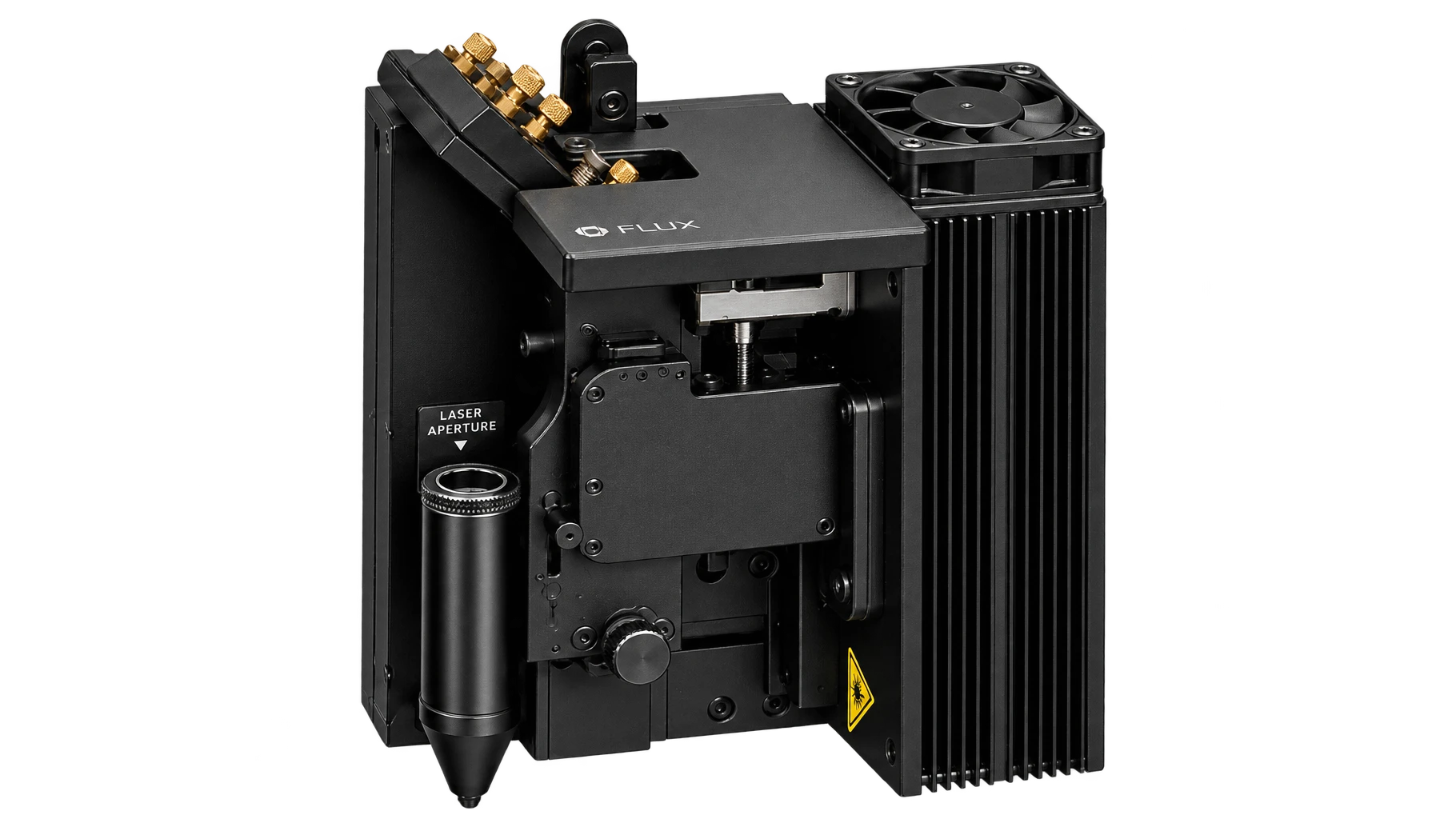

beamo II dual-laser head centered on a white display platform

30W CO₂ laser

Cut & engrave

Acrylic
Wood
Leather
Glass

2W IR laser

Direct metal marking

Optional add-on

Gold
Silver
Copper
Stainless steel

30W CO₂ laser

Cut Bold. Engrave Fine.

Move from clean through-cuts to fine surface detail with one built-in laser source.

Use the same CO₂ workflow across flexible stock, lightweight sheets, and hard surfaces.

Compatible Materials

Materials	CO₂Cutting	CO₂Engraving	2W InfraredEngraving
Acrylic (all colors; IR: opaque only)⁴	7 mm
Black Walnut¹(Wood)	6 mm
Cypress¹(Wood)	8 mm
Plywood¹(Wood)	6 mm
MDF¹(Wood)	4 mm
Cardboard²	7.5 mm
Leather³	5 mm
Fabric³	7 mm
Bamboo	5 mm
Cork	—
Rubber	—
Glass	—
Cement	—
Stone	—
Anodized Metal	—
Stainless Steel	—
Gold, Copper, Titanium, Aluminum, Silver, Iron	—

Certain materials require multiple passes to cut effectively. A higher cutting depth can be achieved by reducing the speed or by performing multiple passes.

¹The performance of wood cutting may be affected by variations in the moisture content and density of the material.

²Thick cardboard is a highly flammable material and should be cut with a slight amount of moisture to ensure safety.

³Although high-power lasers can cut thicker leather and fabrics, due to their higher flammability, we recommend cutting the maximum thickness specified.

⁴Infrared engraving supports opaque acrylic only.

Acrylic: Up to 7 mm
Wood: Up to 7 mm

Plywood
Bamboo
Leather
Fabric
Rubber
Glass
Stone

CO2 laser project 1

CO2 laser project 2

CO2 laser project 3

CO2 laser project 4

CO2 laser project 5

CO2 laser project 6

CO2 laser project 7

CO2 laser project 8

CO2 laser project 9

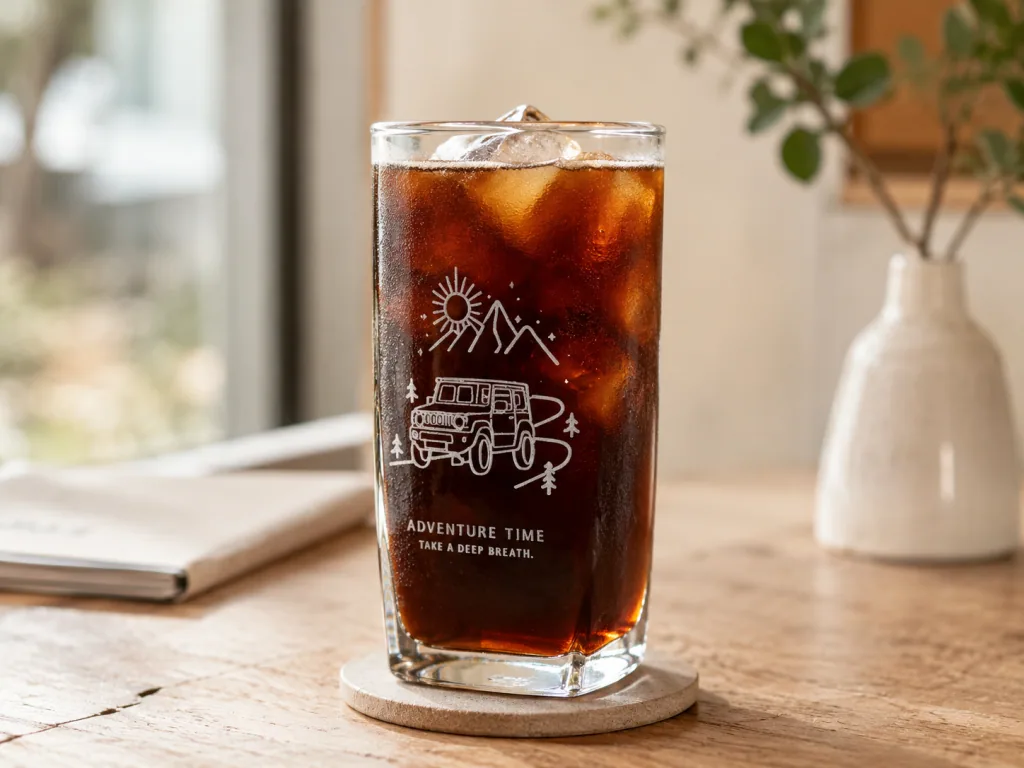

CO2 laser project 10

CO2 laser project 11

CO2 laser project 12

Optional 2W infrared laser

Make Your Mark on Metal.

Create fine, durable marks on stainless steel, aluminum, gold, silver, titanium, and selected plastics.

Infrared laser marking project 1

Infrared laser marking project 2

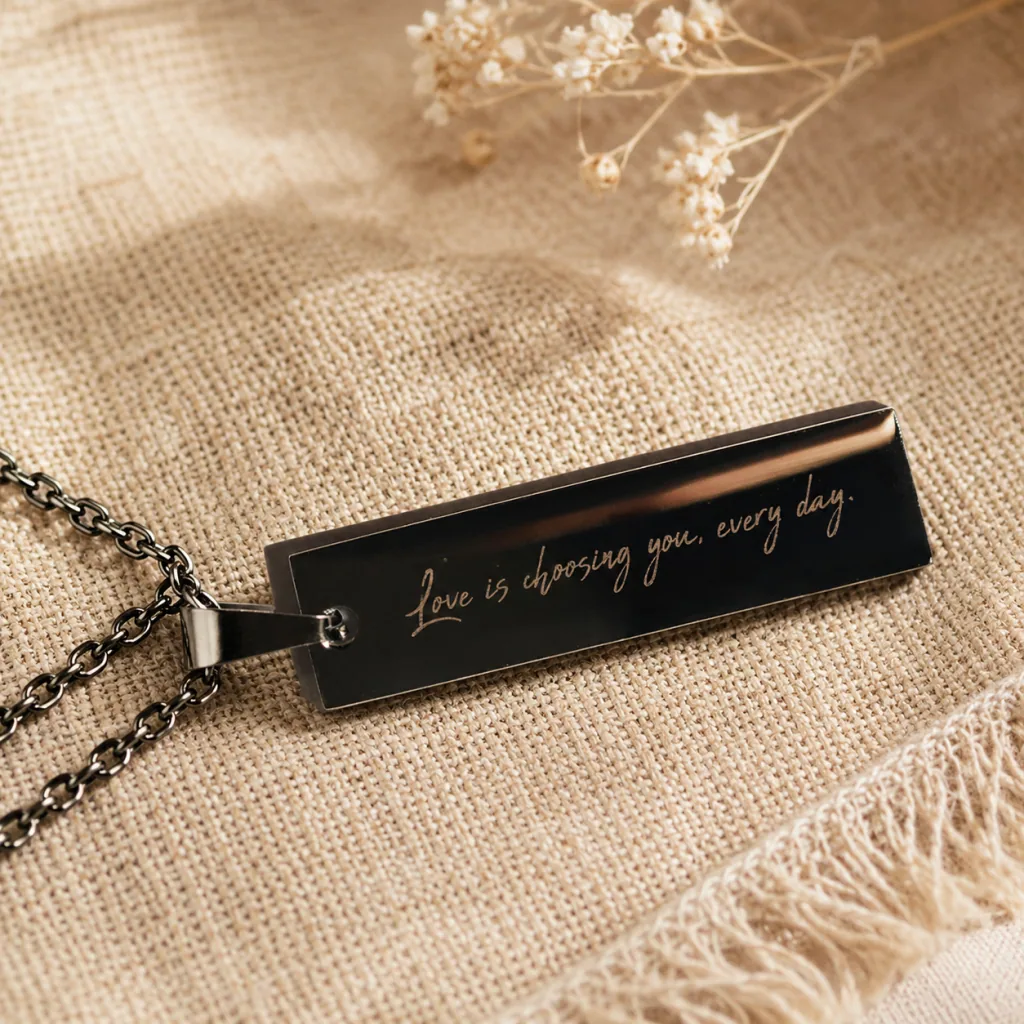

Infrared laser marking project 3

Infrared laser marking project 4

Infrared laser marking project 5

Infrared laser marking project 6

See the Potential Behind the Craft

Explore how product pricing, material costs, and monthly sales can turn beamo II into a practical business tool.

Acrylic Flower Vase Decor

Unit Retail Price$39.00Unit Retail Cost$13.50Monthly Sales Volume12Target volume ramps to 30%, 60%, 80%, 90%, 95%, and 100% across months 1–6.

Slate Fish Serving Board

Unit Retail Price$29.99Unit Retail Cost$10.00Monthly Sales Volume18Target volume ramps to 30%, 60%, 80%, 90%, 95%, and 100% across months 1–6.

Compact Yet Enough

The work area grows without turning beamo II into a machine that dominates the room.

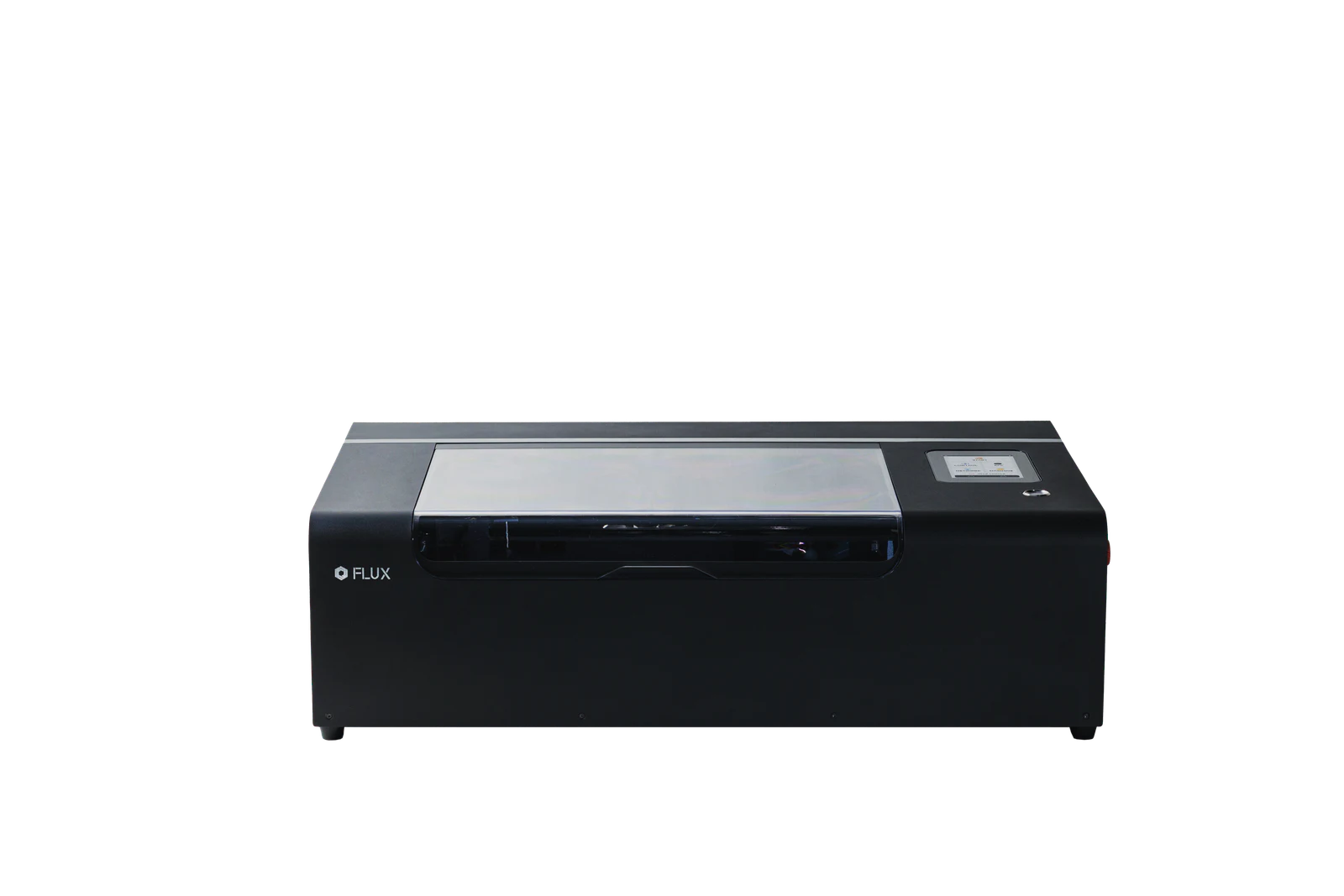

beamo II compact laser cutter extending beyond the workspace grid

CO2 laser working area: 360 x 240 mm
Infrared laser working area: 270 x 190 mm
Depth with honeycomb: 7 mm
Depth without honeycomb: 30 mm
Depth with Extension Base: 155 mm

Effortless Control. Professional Results.

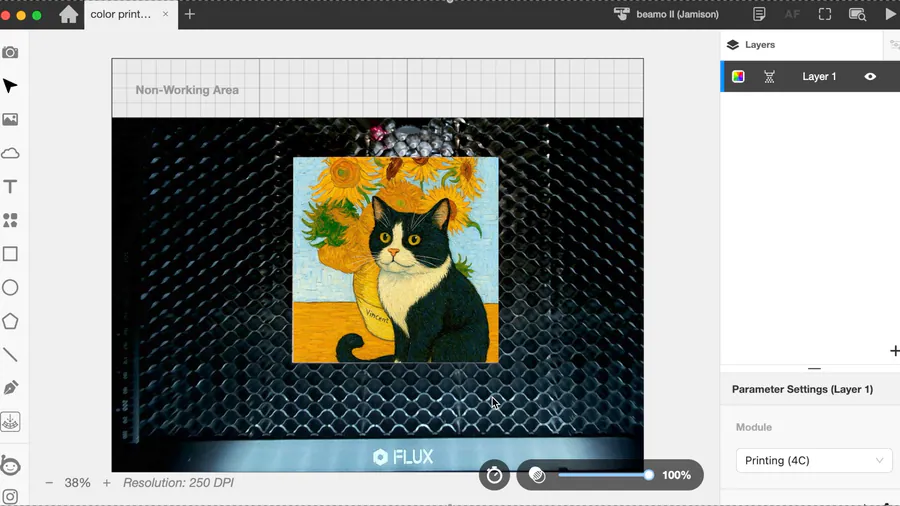

01 · Camera Preview

See the layout before the laser starts

The 8 MP camera captures the bed so artwork can be placed directly over the material in Beam Studio.

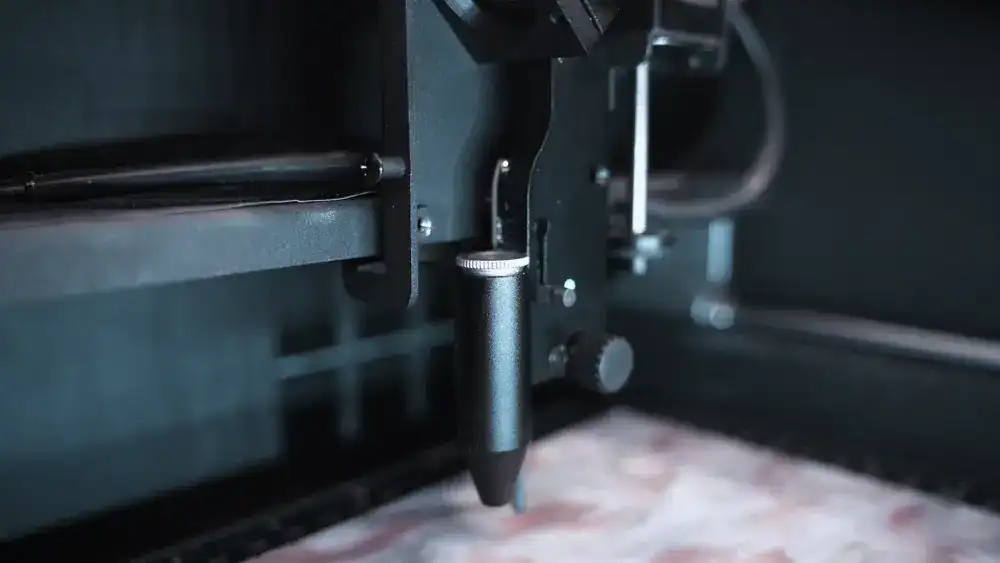

beamo II automatically focusing its laser head

02 · Auto Focus

Focus at a tap

Built-in autofocus measures the material height and puts the laser in the right working position.

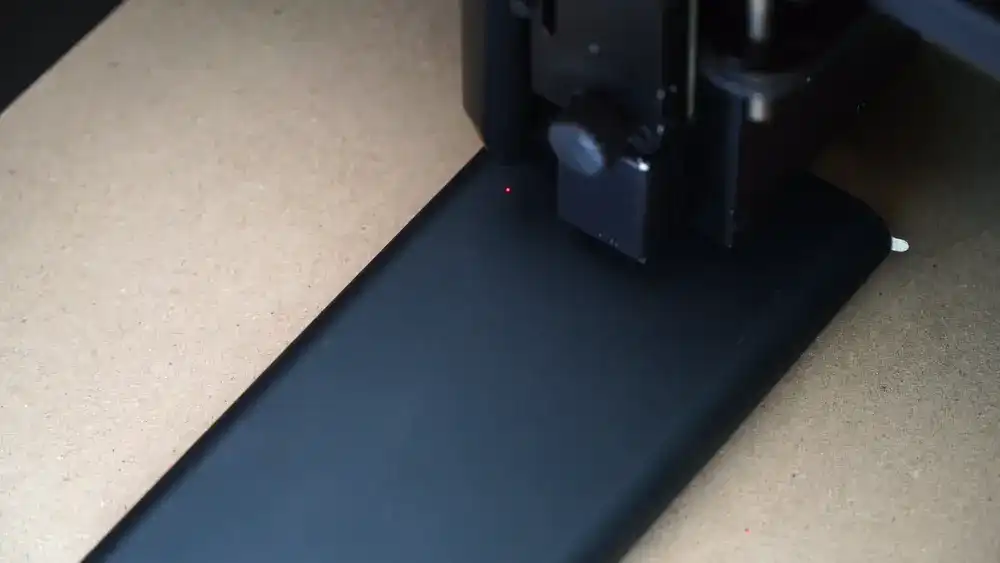

beamo II tracing a project boundary with red light preview

03 · Red Light Preview

Know exactly where the job begins

A visible framing light gives quick alignment feedback before cutting or engraving.

Unlock More Than You Imagine

01

Make room for taller objects

Increase the working depth to 155 mm for boxes, vessels, and other dimensional pieces.

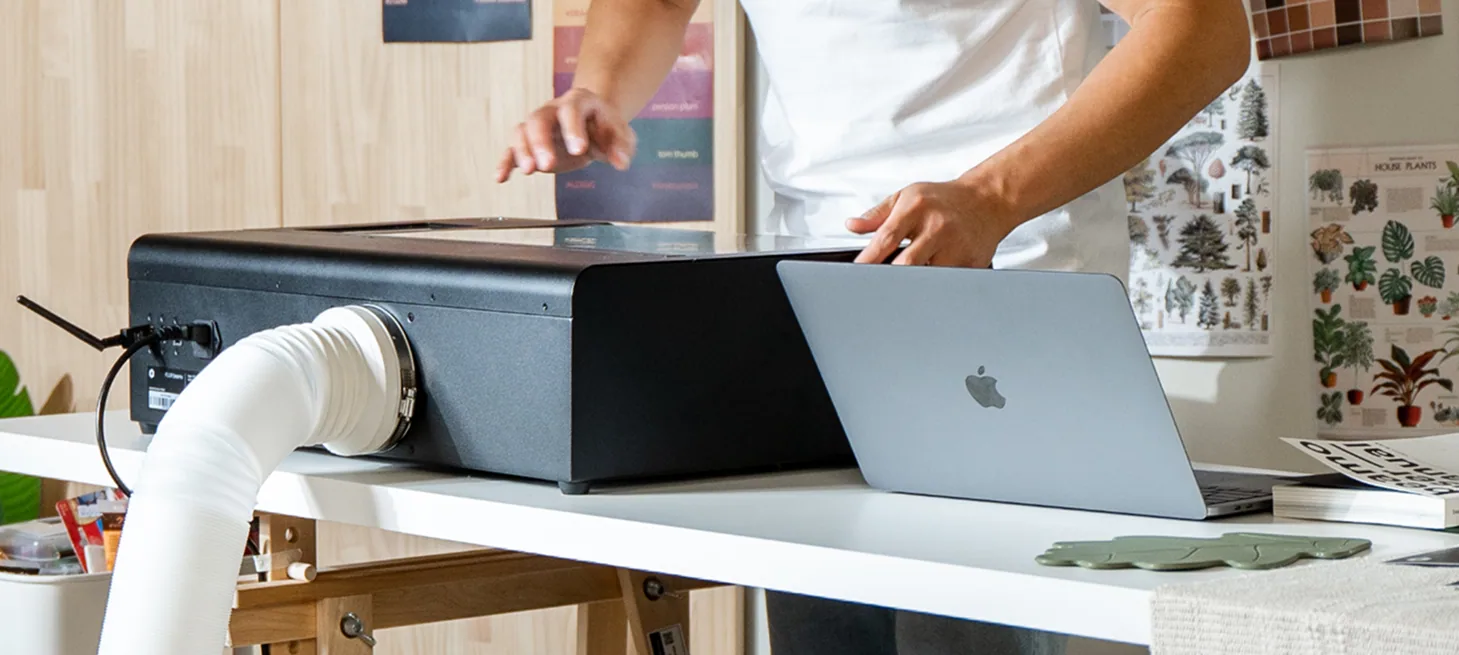

How beamo II Is the Perfect Fit for You

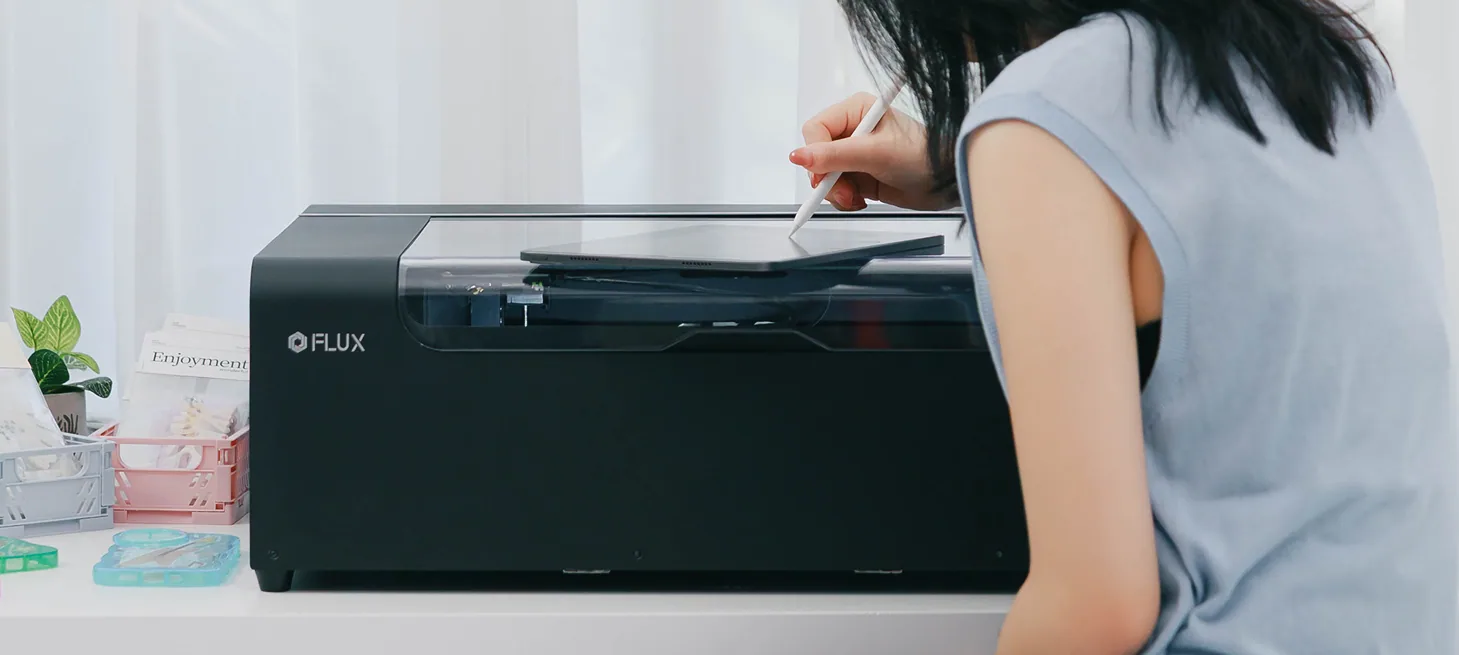

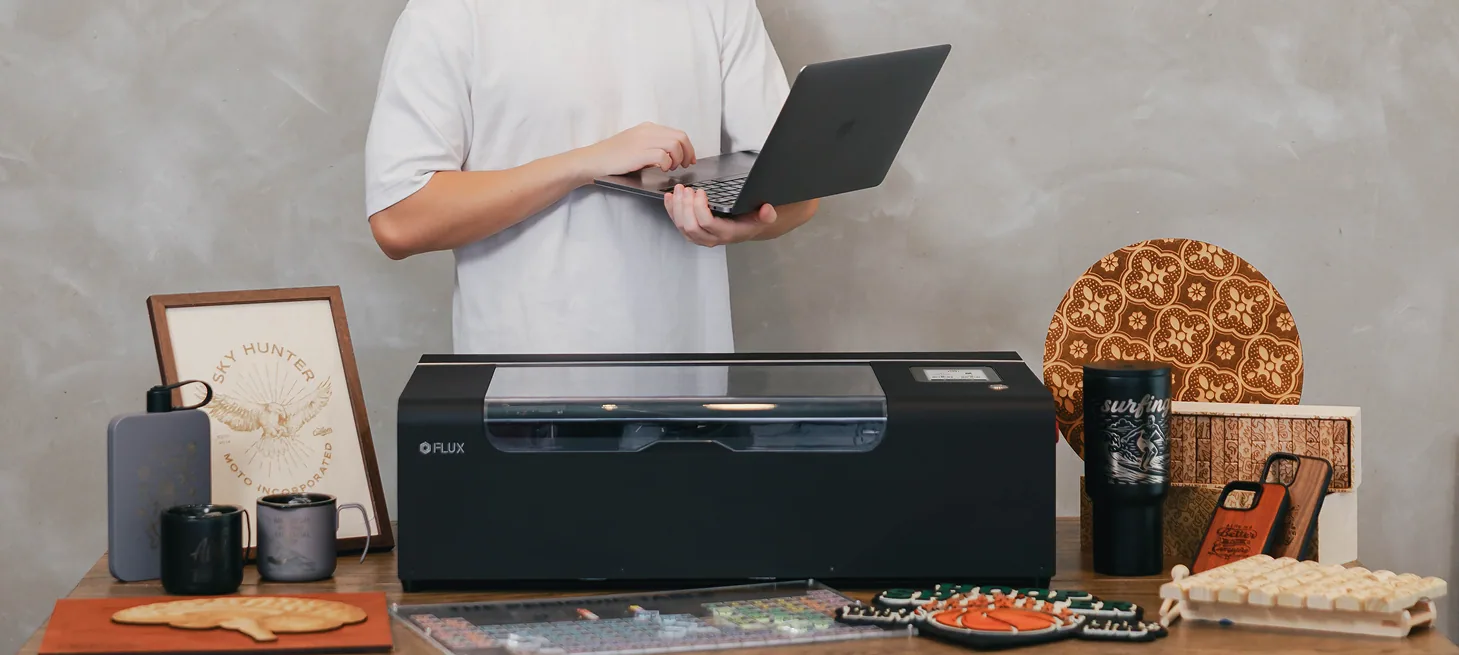

A first-time maker using beamo II in a home studio

“I want to start creating from day one.”

Camera-guided placement, autofocus, and material presets flatten the learning curve without hiding the controls you will grow into.

Story 1 / 4

Beam Studio tools and compatible platform icons surrounding the software

Simple Enough for First-Timers, Powerful Enough for Pros.

Beam Studio brings design placement, laser settings, and production tools into one clear workspace on macOS, Windows, Linux, and ChromeOS.

Explore Beam Studio

From Ideas to Products in Just Three Steps

Three-step beamo II workflow from importing artwork to a finished laser-cut product

01
Place
Put the material in the machine.
02
Preview
Position the design with the camera.
03
Create
Choose settings and start the job.

Design, Preview, and Prepare in Beam Studio

01

Start with proven settings

Choose a material preset, then fine-tune power and speed whenever the work calls for it.

LightBurn Compatible

Prefer LightBurn? Connect beamo II to a familiar professional workflow while keeping Beam Studio ready for camera-guided jobs.

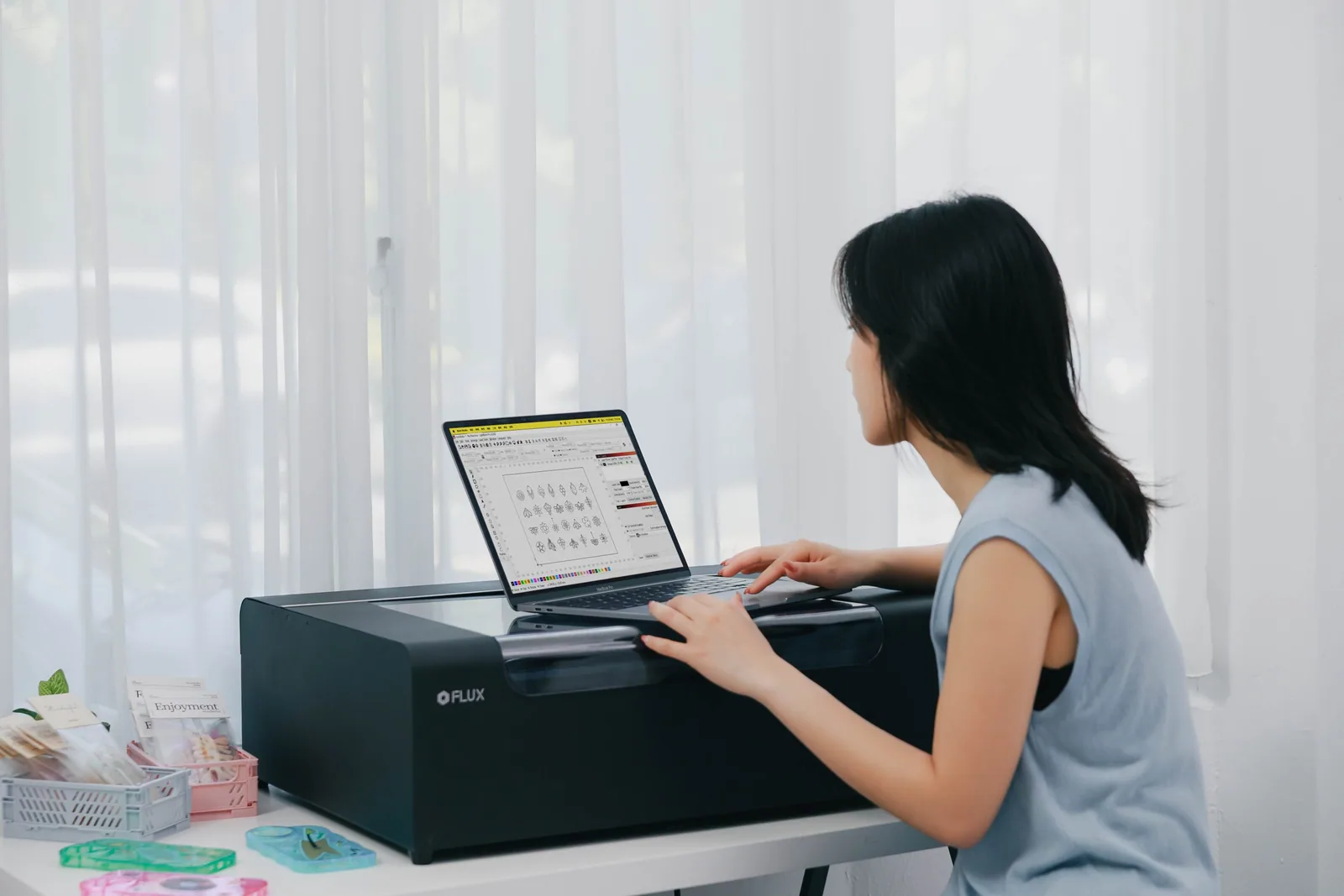

LightBurn design software displayed with beamo II

Your Safety Always Comes First.

beamo II meets CE, FCC, and FDA certifications, aligning with globally recognized safety and quality standards. Combined with IEC 60825-1 and SGS testing, it’s designed to give you a secure, reliable workspace.

A creator working beside beamo II in a bright home studio

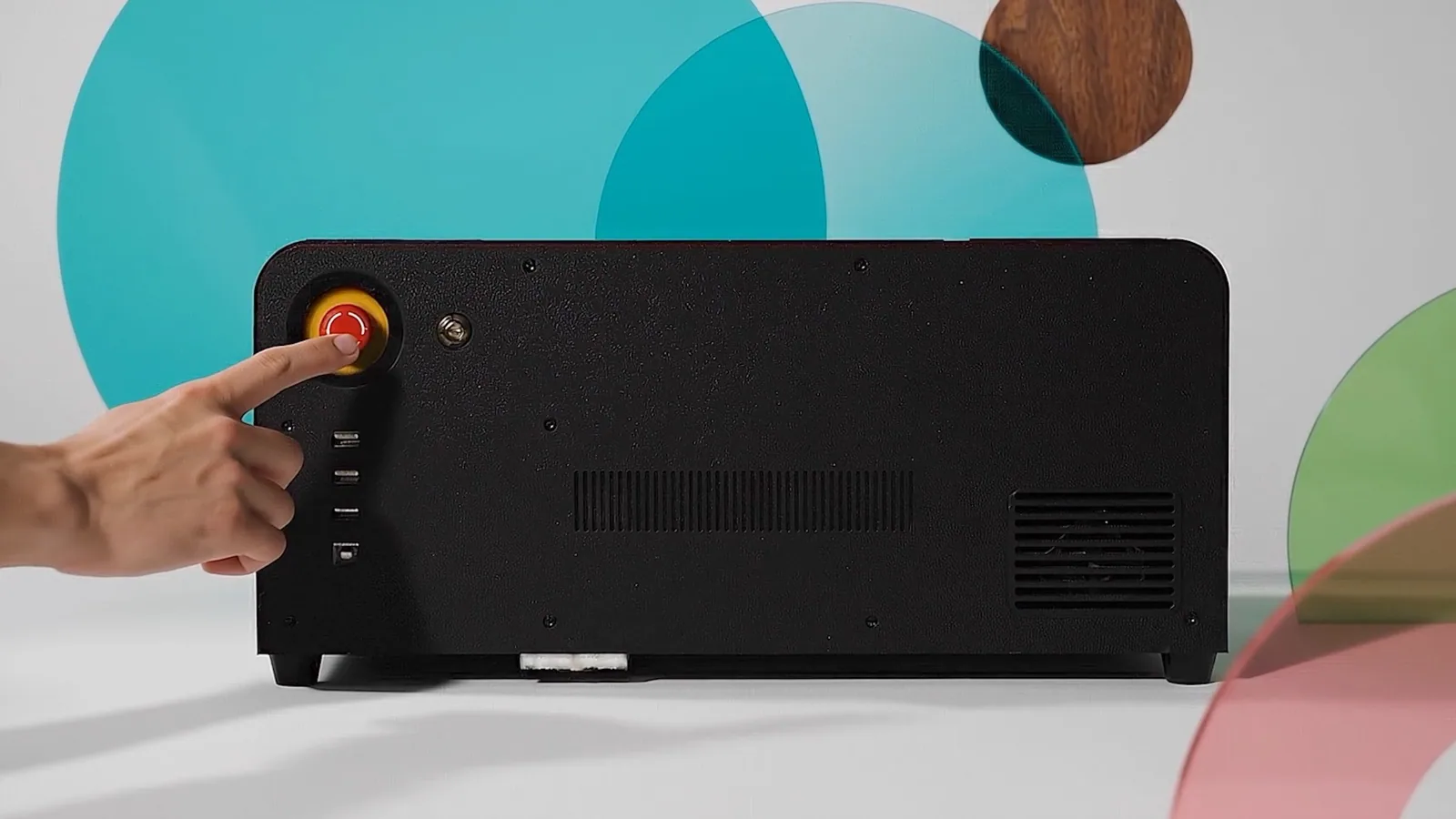

A hand pressing the red emergency button on the side of beamo II

Emergency Button

Instant Shutdown

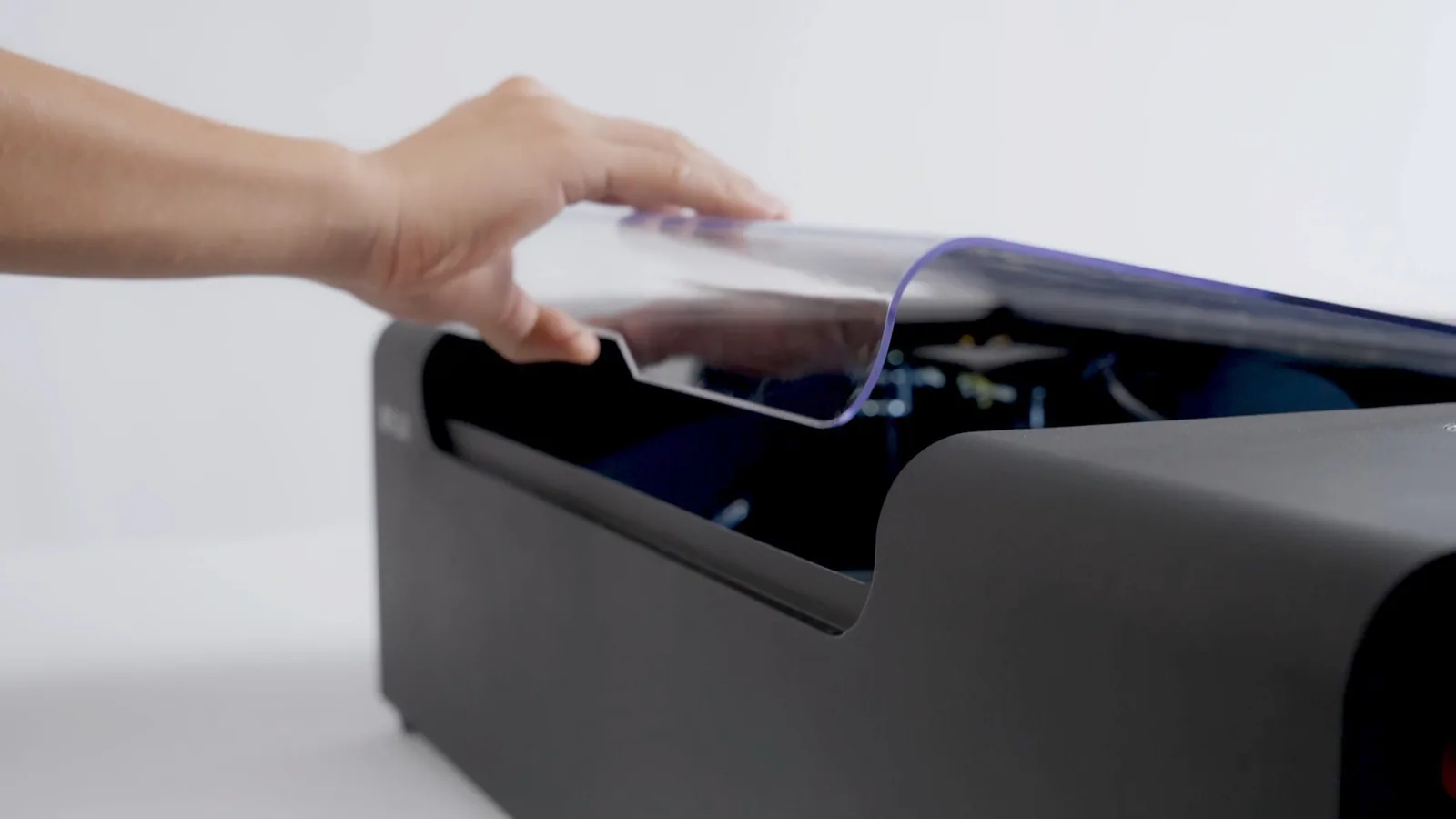

A hand opening the enclosed beamo II laser cutter lid

Fully Enclosed Design

Stops When Opened

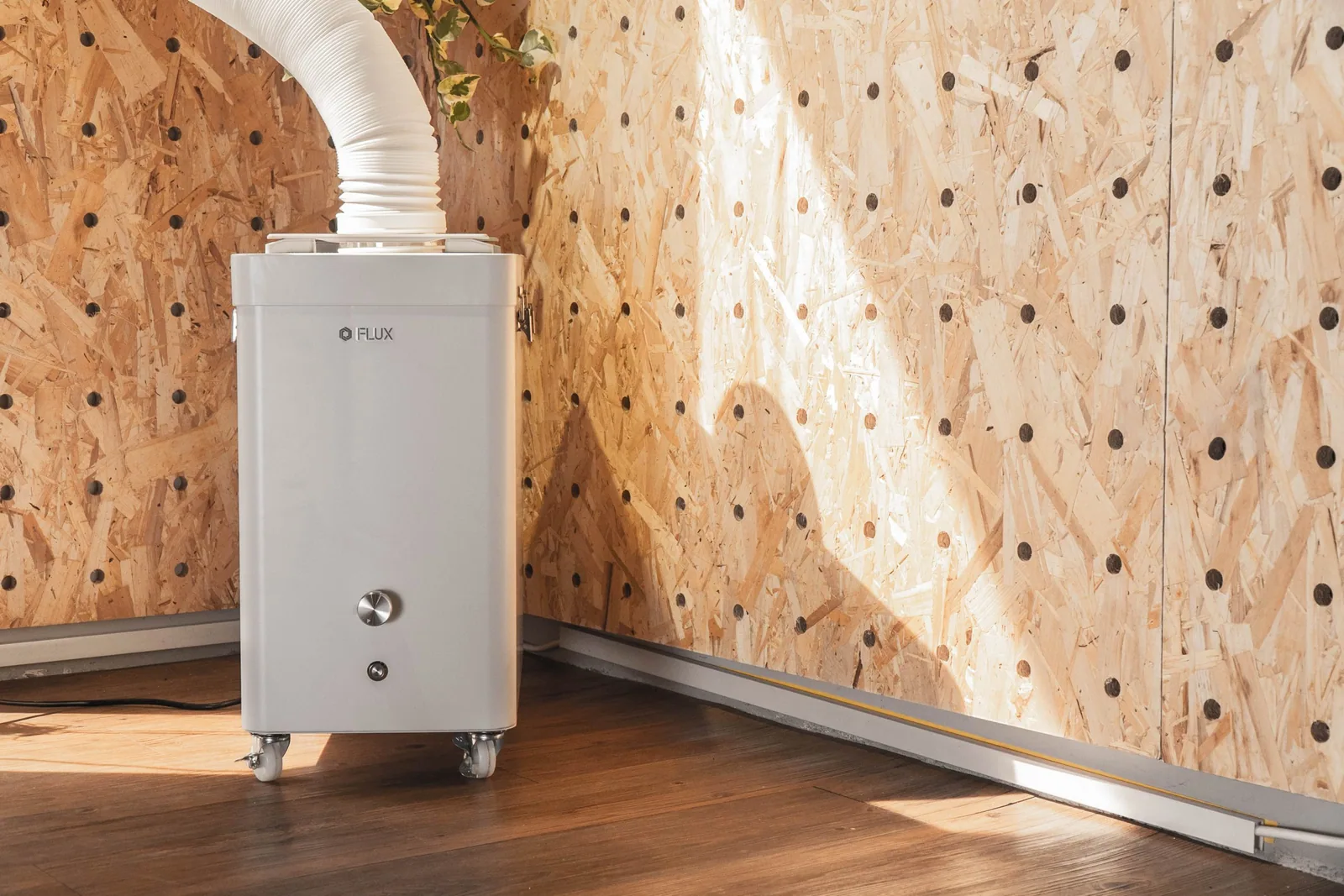

A FLUX Beam Air filter connected in a creative workspace

Keep Your Space Clean

with Beam Air Filter

Specifications

Product

Laser Power: 30W DC CO₂ glass tube
Laser Wavelength: 10.6 μm
Machine Size: 710 × 474 × 208 mm
Machine Weight: 23 kg
Package Size: 850 × 615 × 350 mm
Package Weight: 29.3 kg

Performance

Resolution: Up to 1,000 DPI
Laser Spot: 0.3 mm
Maximum Speed: 750 mm/s
Camera: HD 8 MP CMOS
Preview Area: 300 × 195 mm
Alignment: Camera and red light
Focus: Built-in autofocus
Laser Safety: Class 1

Work Area

Bed: 415 × 335 mm
CO₂ Work Area: 360 × 240 mm
Infrared Work Area: 270 × 190 mm
Standard Object Height: Up to 7 mm
Honeycomb Removed: Up to 30 mm
With Extension Pocket: Up to 155 mm

Software & Connection

Software: Beam Studio; LightBurn compatible
File Types: JPG, PNG, SVG, DXF, PDF, AI
Operating Systems: macOS, Windows, Linux, ChromeOS
Connection: Wi-Fi, Ethernet, USB
Power: AC 100–240 V, 50/60 Hz

Optional Infrared Module

Laser Power: 2W
Wavelength: 1,064 nm
Maximum Speed: 150 mm/s
Resolution: Up to 1,000 DPI

Accessories

Extension Pocket: Maximum object height 155 mm
Chuck Rotary: For cylindrical and irregular round objects
Auto Feeder: Supports material up to 1,000 mm long

Make More from a Compact Space

Bring beamo II into your studio and turn the next idea into something you can hold, share, or sell.
