The World's First Color Printing Laser Cutter

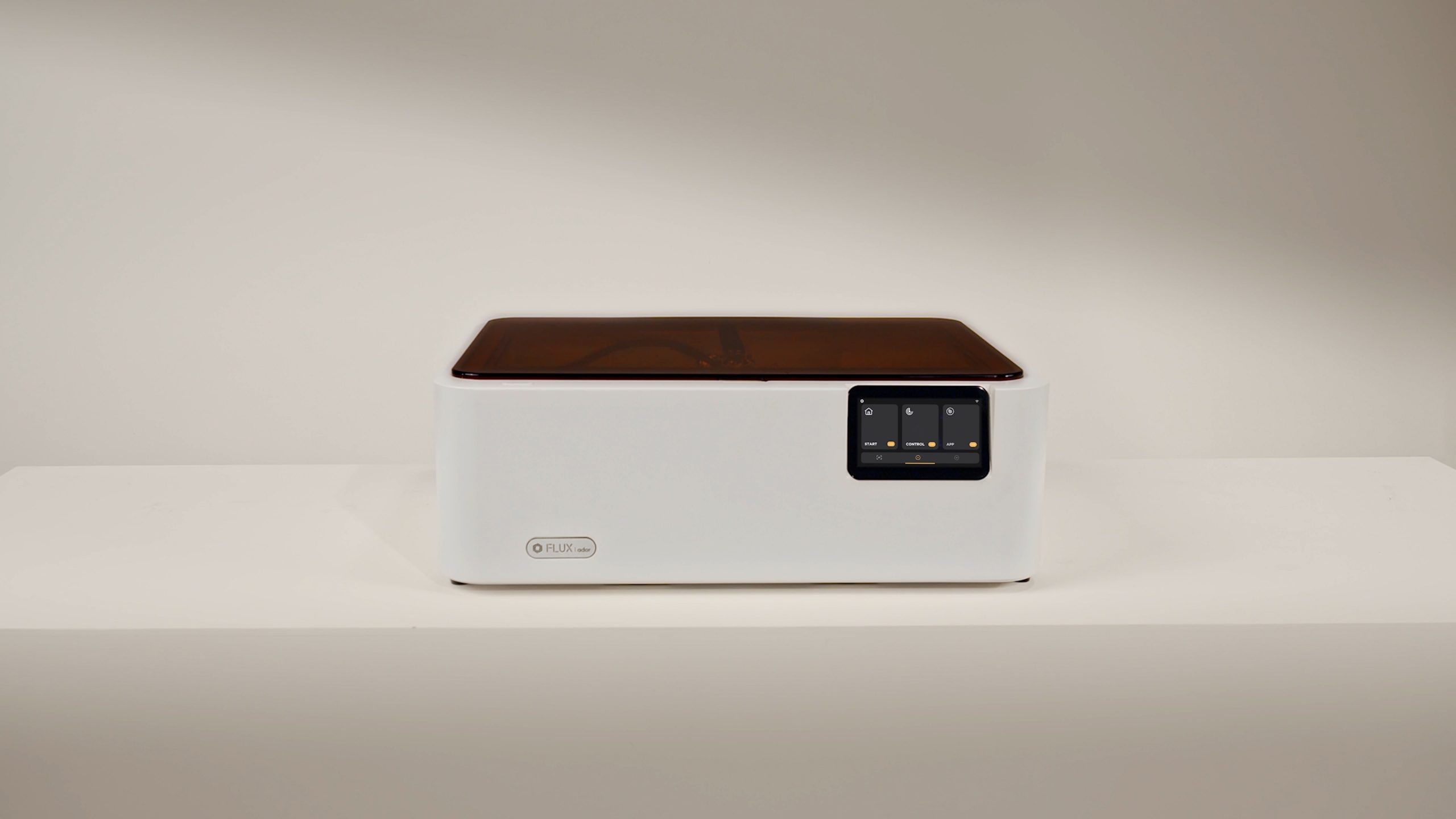

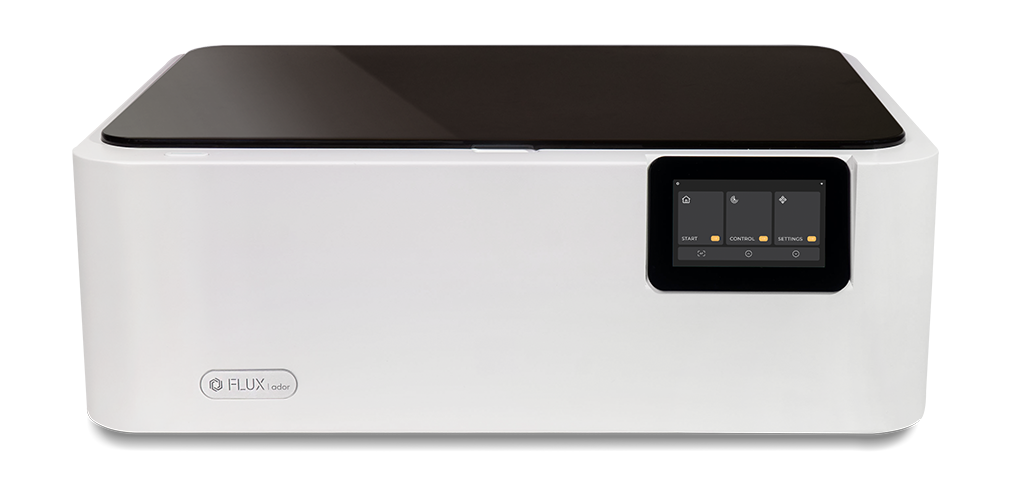

Meet FLUX Ador, the world’s first color printing laser cutter.
Powered by three high-quality, interchangeable modules, Ador enables you to engrave and cut through a wide range of materials while enhancing your projects with a pop of color.
3-in-1 Laser Cutter
Interchangeable modules bring cutting, engraving and color printing into one machine—choose the right tool for every idea.
Ador
2W Infrared Laser
Color Printing
01
Class 1 Safety
02
8MP Camera Preview
03
400mm/s
04
Auto Focus
05
Built-in Air Assist
06
1000+ Materials
See How Ador Works in Life
Go to slide 1 / 4
Unlock New Creative Potential with Ador
Whether you’re an educator, small business, crafter, or designer, with Ador, the applications boundary is for you to define.
For Education
For Sellers
For Businesses
For Crafters
Bring Your Designs to Life with Ease
Explore the Colorful Laser World
Infinite Possibilities, Three Creative Tools

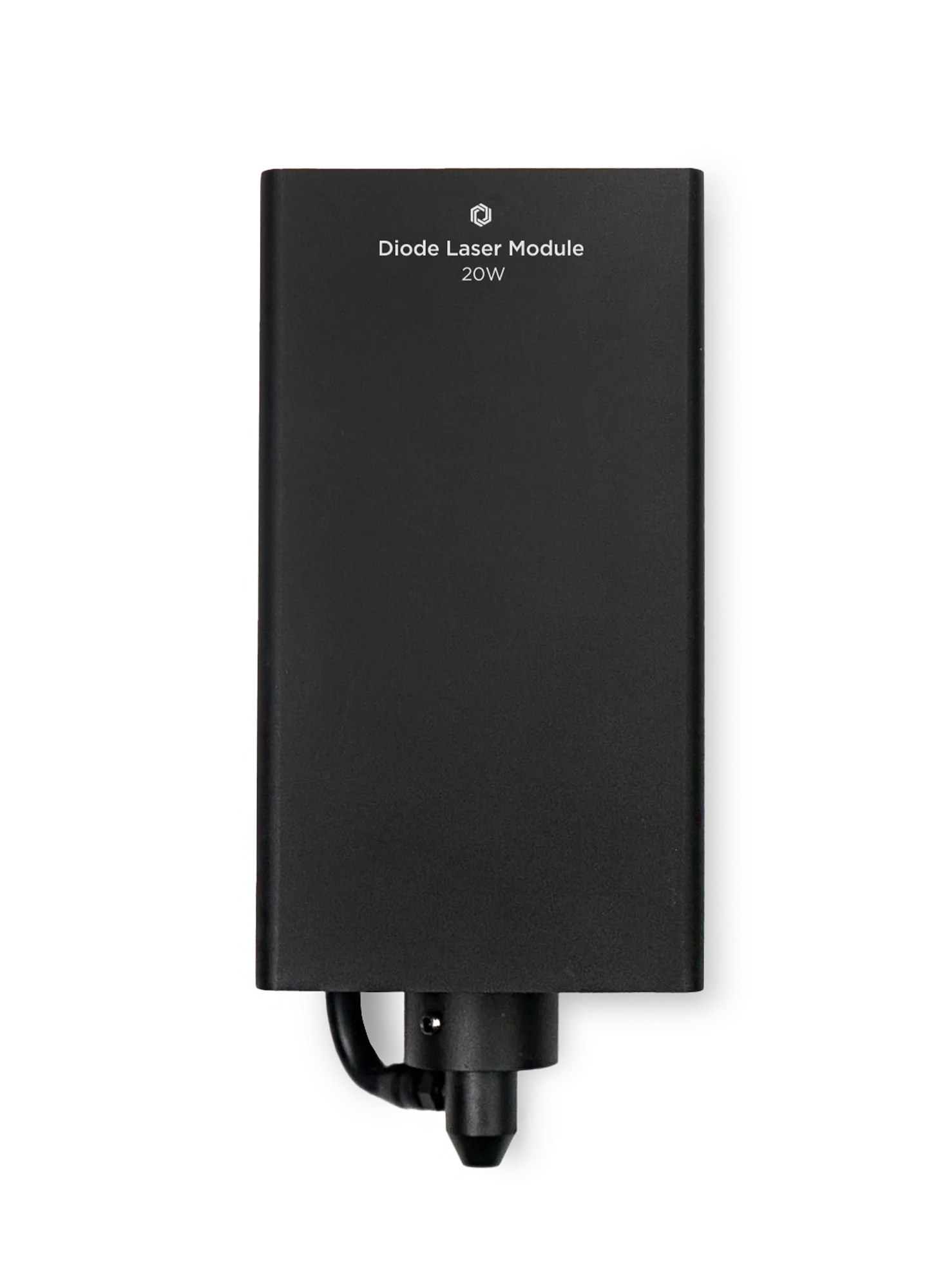

Diode Laser
Infrared Laser
Color Printing

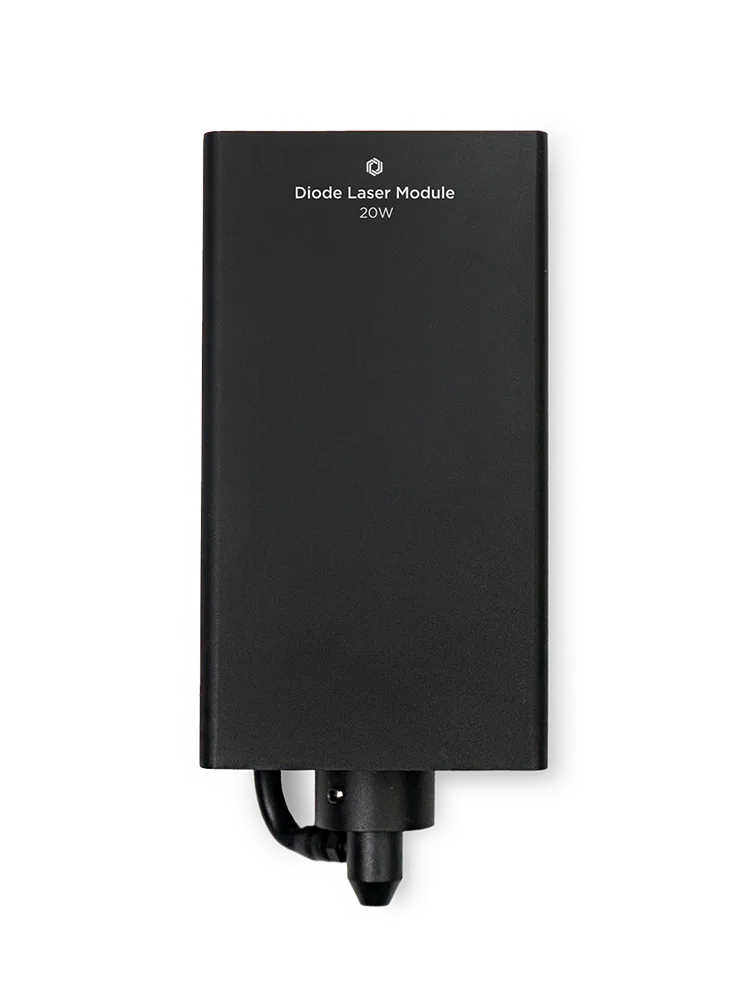

10W / 20W
Fine Detail, Powerful Cutting.
The diode laser can cut 15mm cypress wood and render crisp details with an ultra-fine laser spot, while engraving at speeds up to 400mm/s.

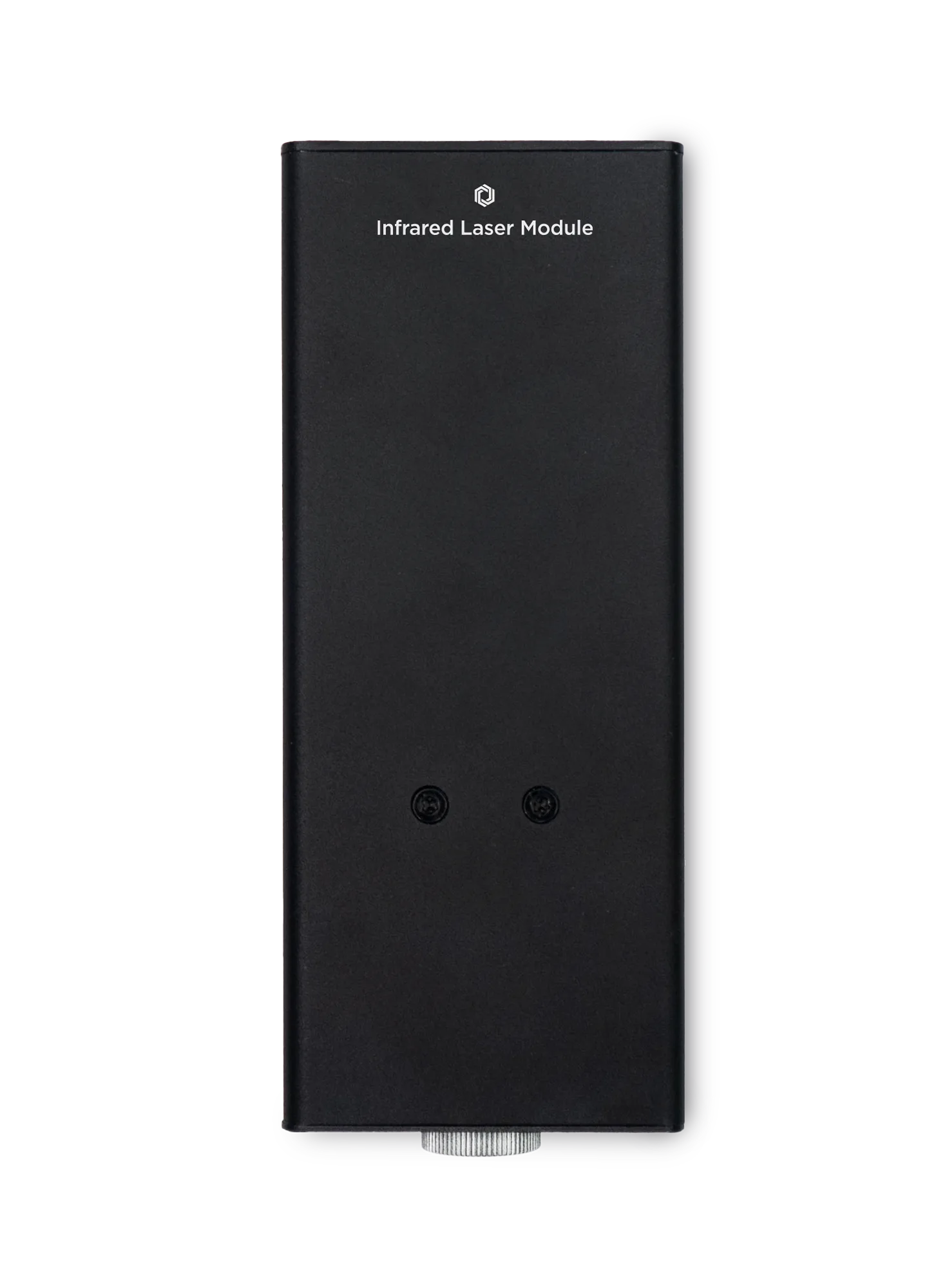

2W

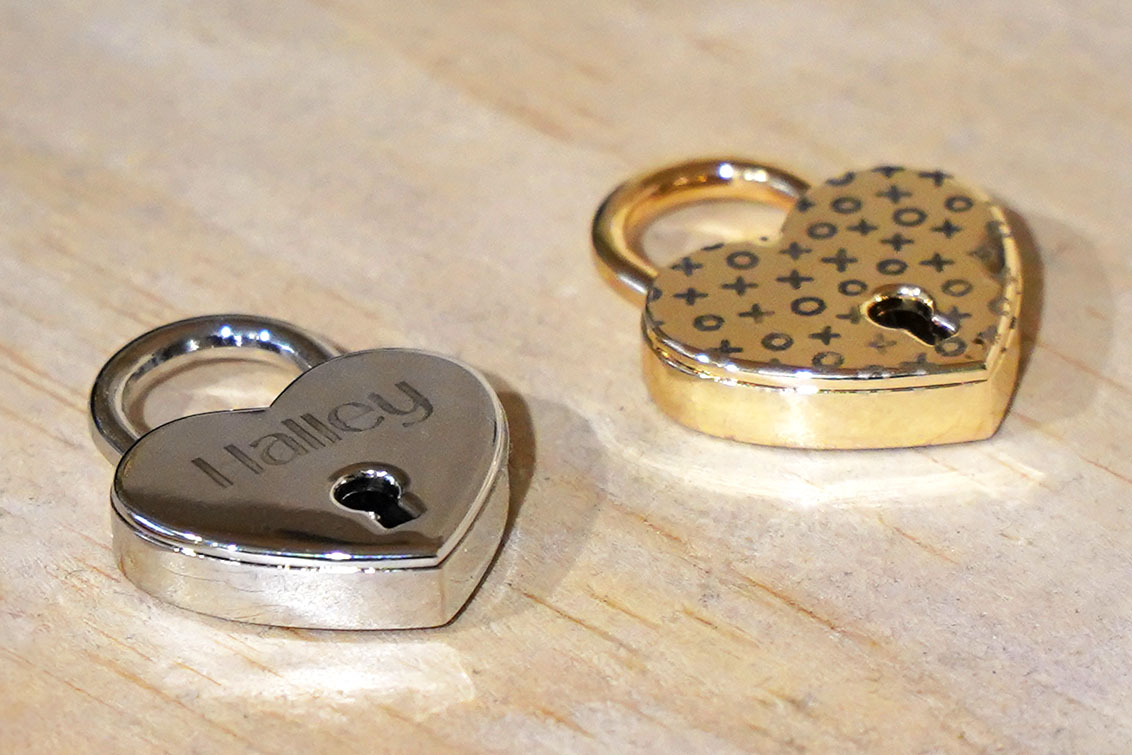

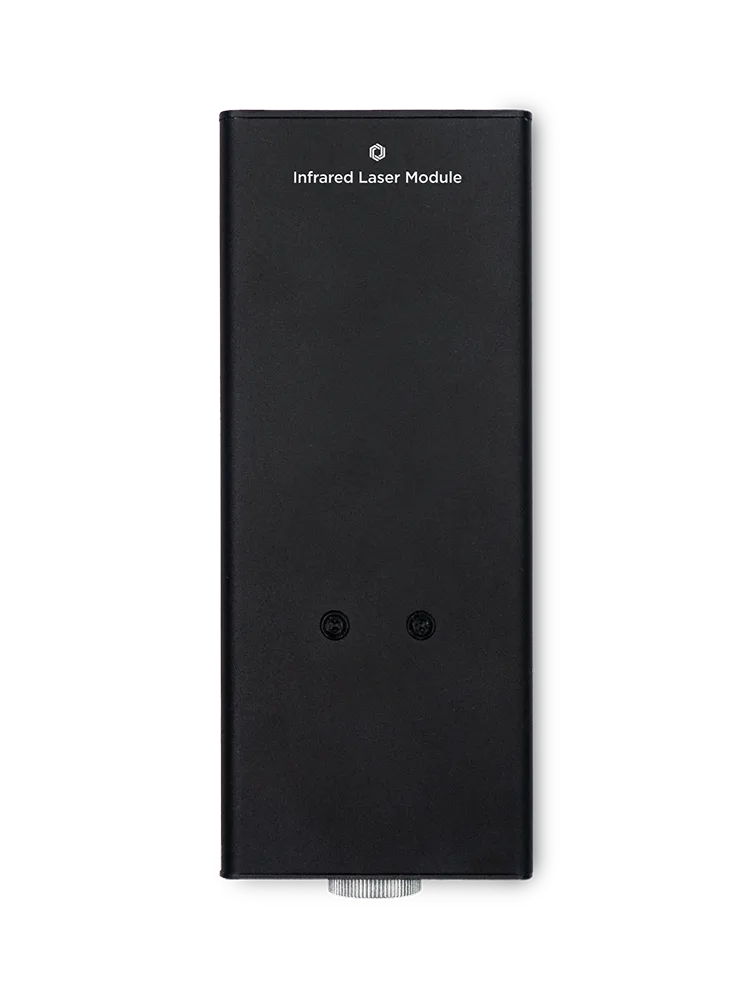

A New Language for Metal Details.

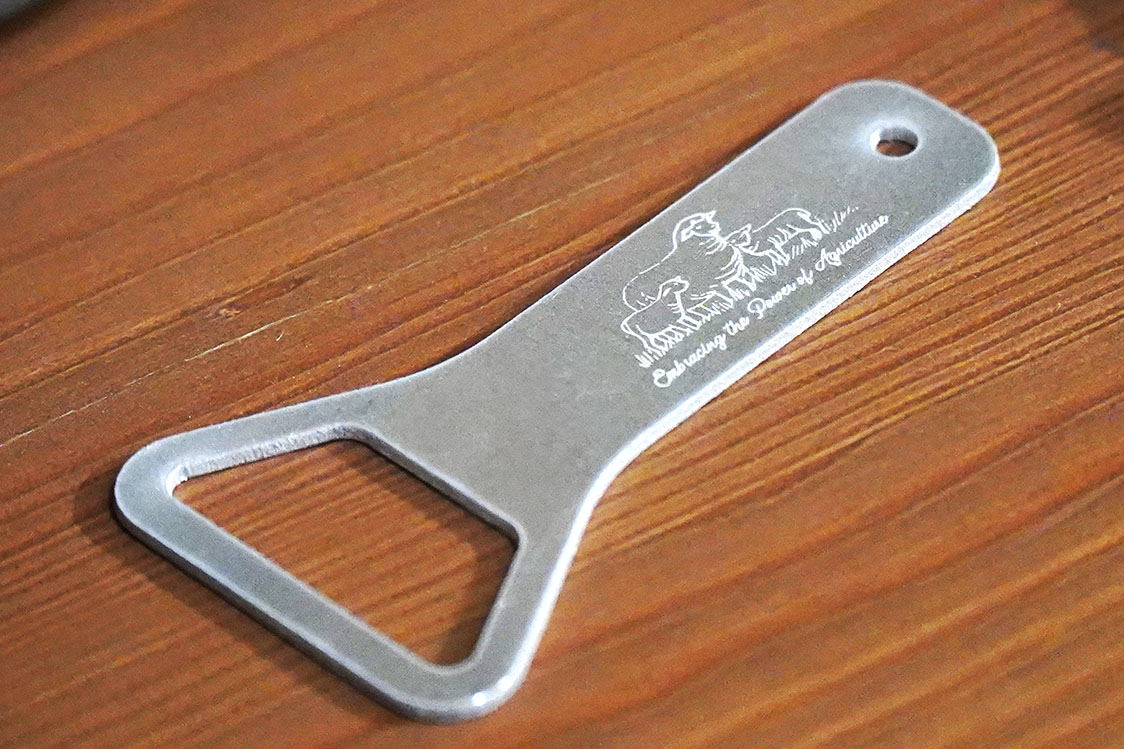

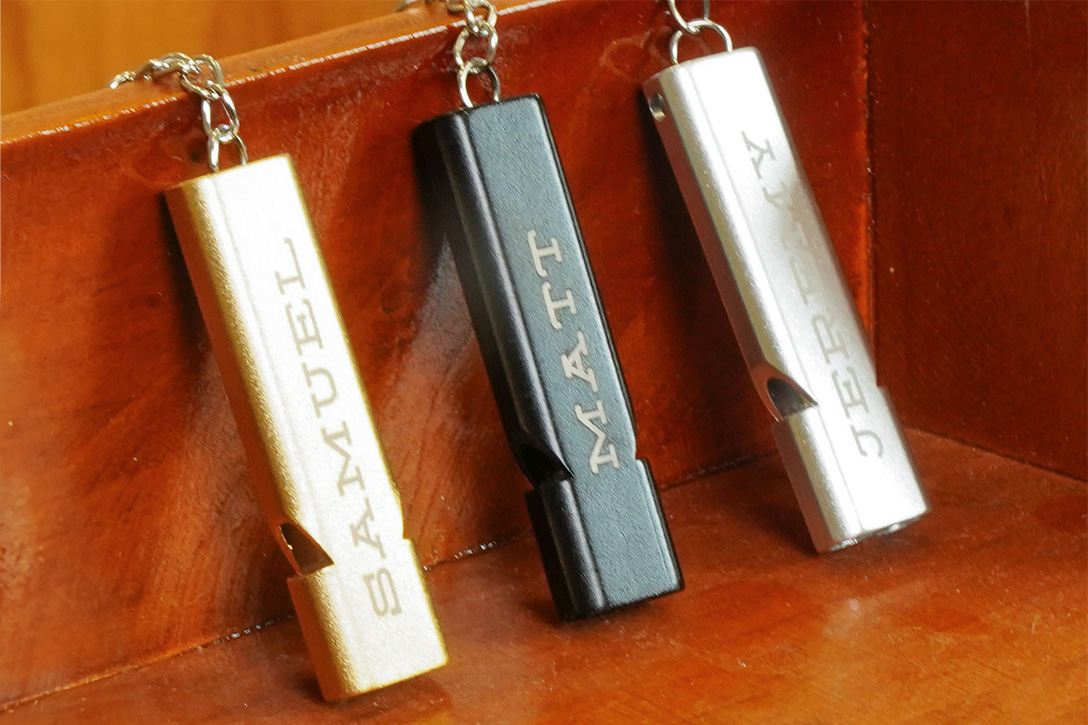

The infrared laser extends fine marking to a versatile range of materials, including anodized metal, stainless steel, copper and aluminum.
See Infrared Engraving in Motion
Material Sample Results
Versatile Range of Materials For You to Create
WoodLeatherPaperFabricAcrylicAnodized MetalStainless SteelAluminum
- Cutting data is tested based on the existing material thickness.
- Smooth materials like acrylic or leather may restrict ink adhesion.
- To keep colors from fading, avoid washing printed work with water.
- Color printing does not support UV resistance.

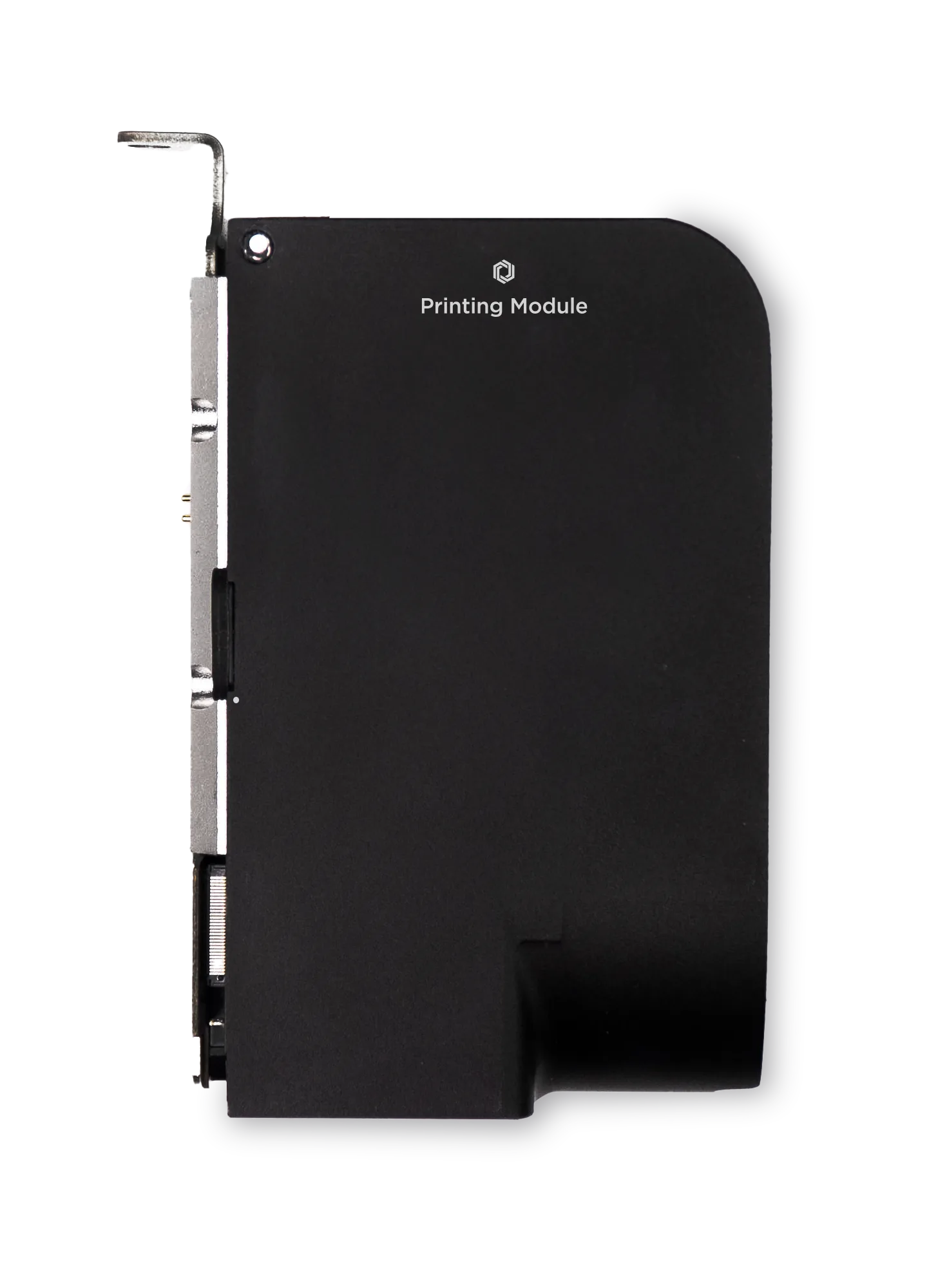

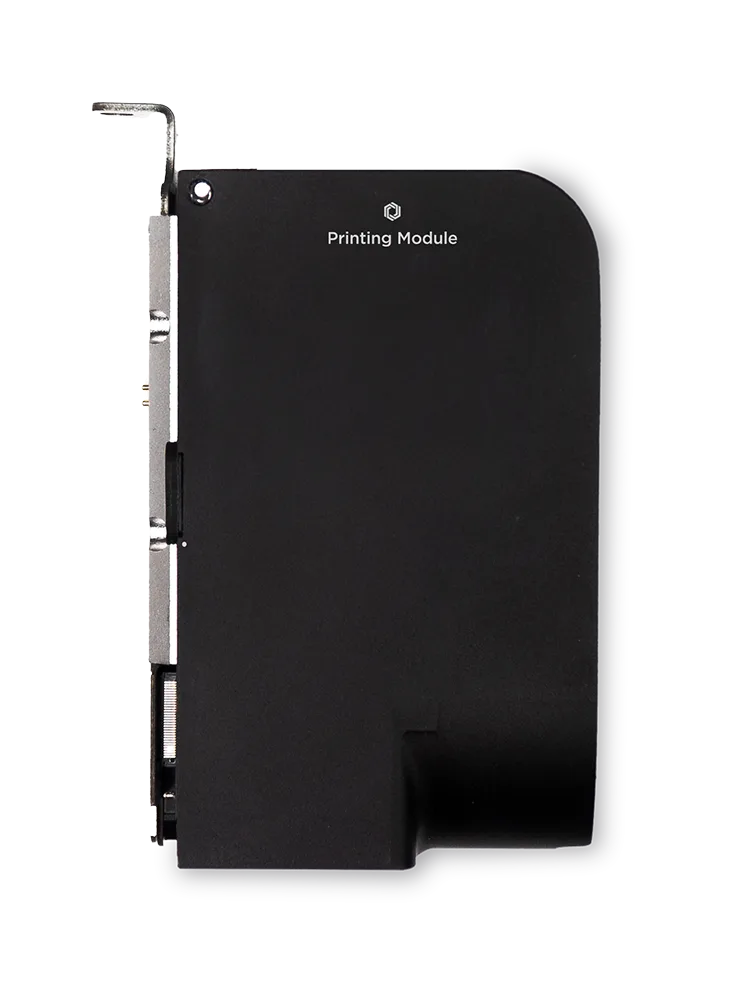

Printing Module Add-on

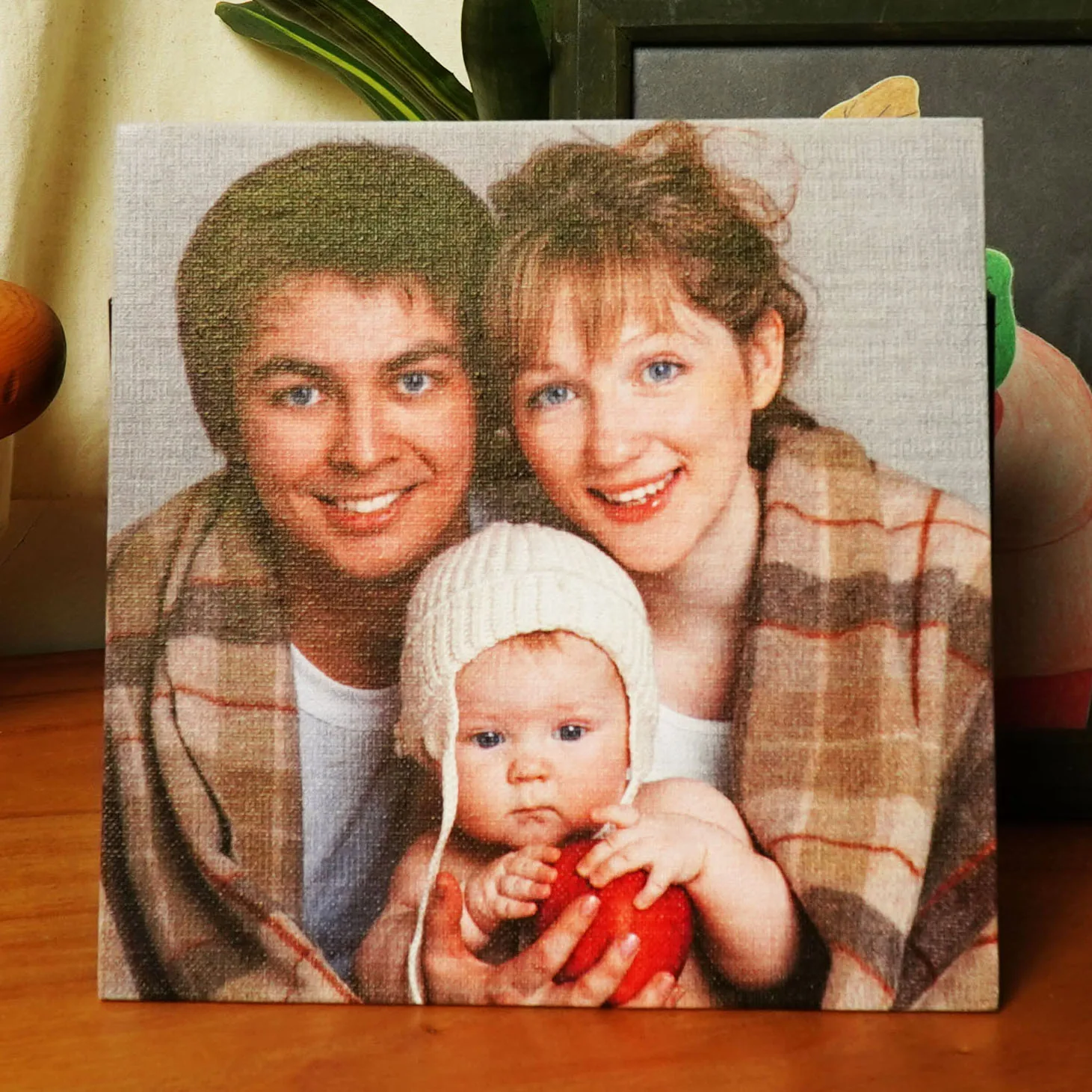

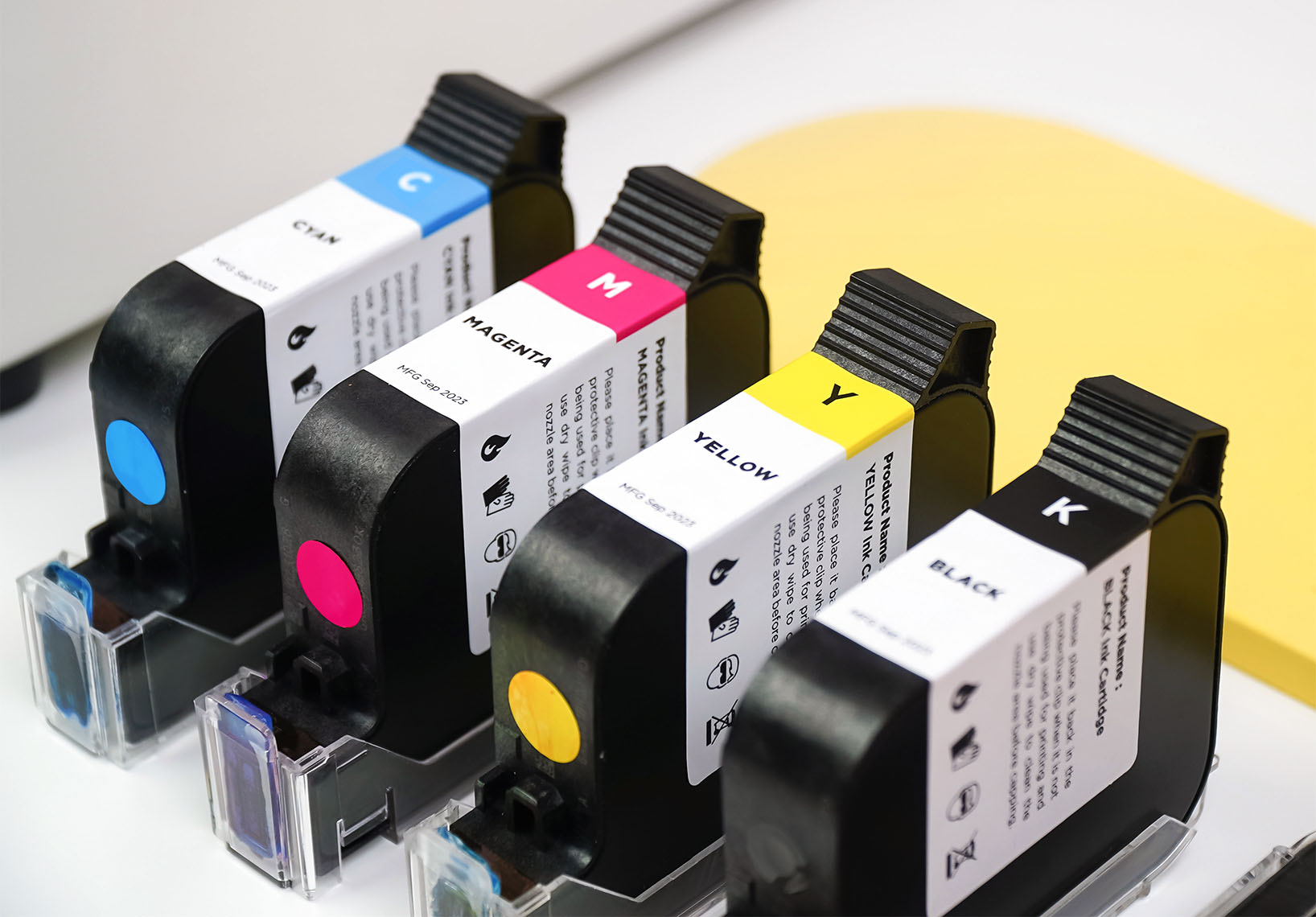

The color printing system uses CMYK eco-solvent ink on multiple flat surfaces, bringing a full-color dimension to laser-made creations.
Eco Solvent Ink
Single-color printing offers a resolution of 300 DPI, and blended-color printing provides a resolution of 150 DPI.

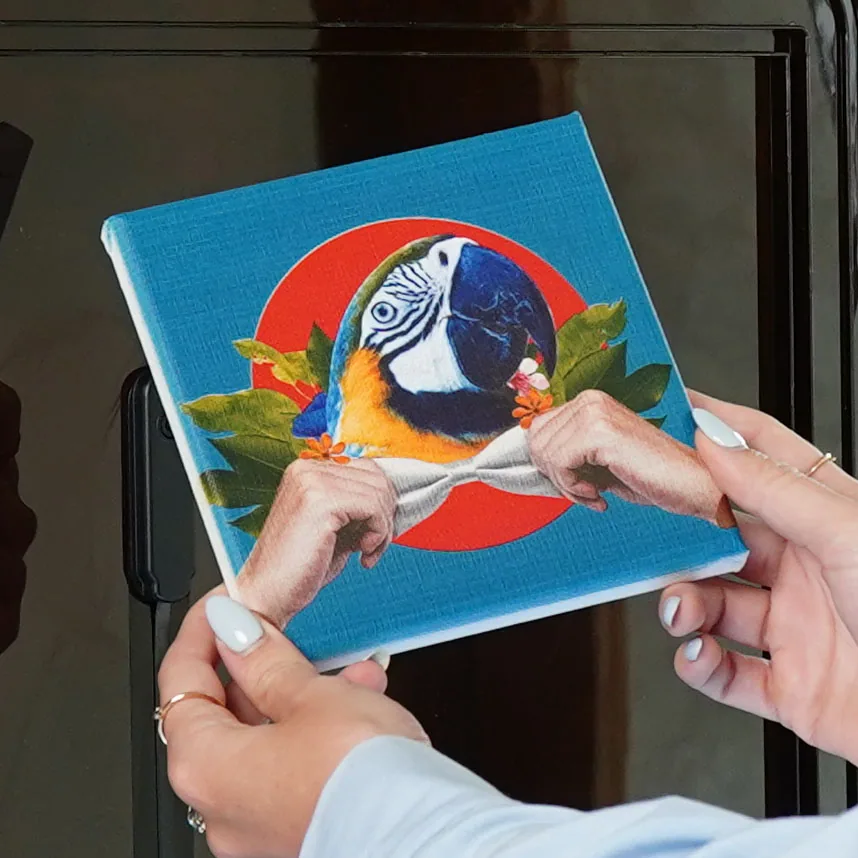

Learn How Printing WorksPrint on Multiple Flat Surfaces to Pop Up Your Work

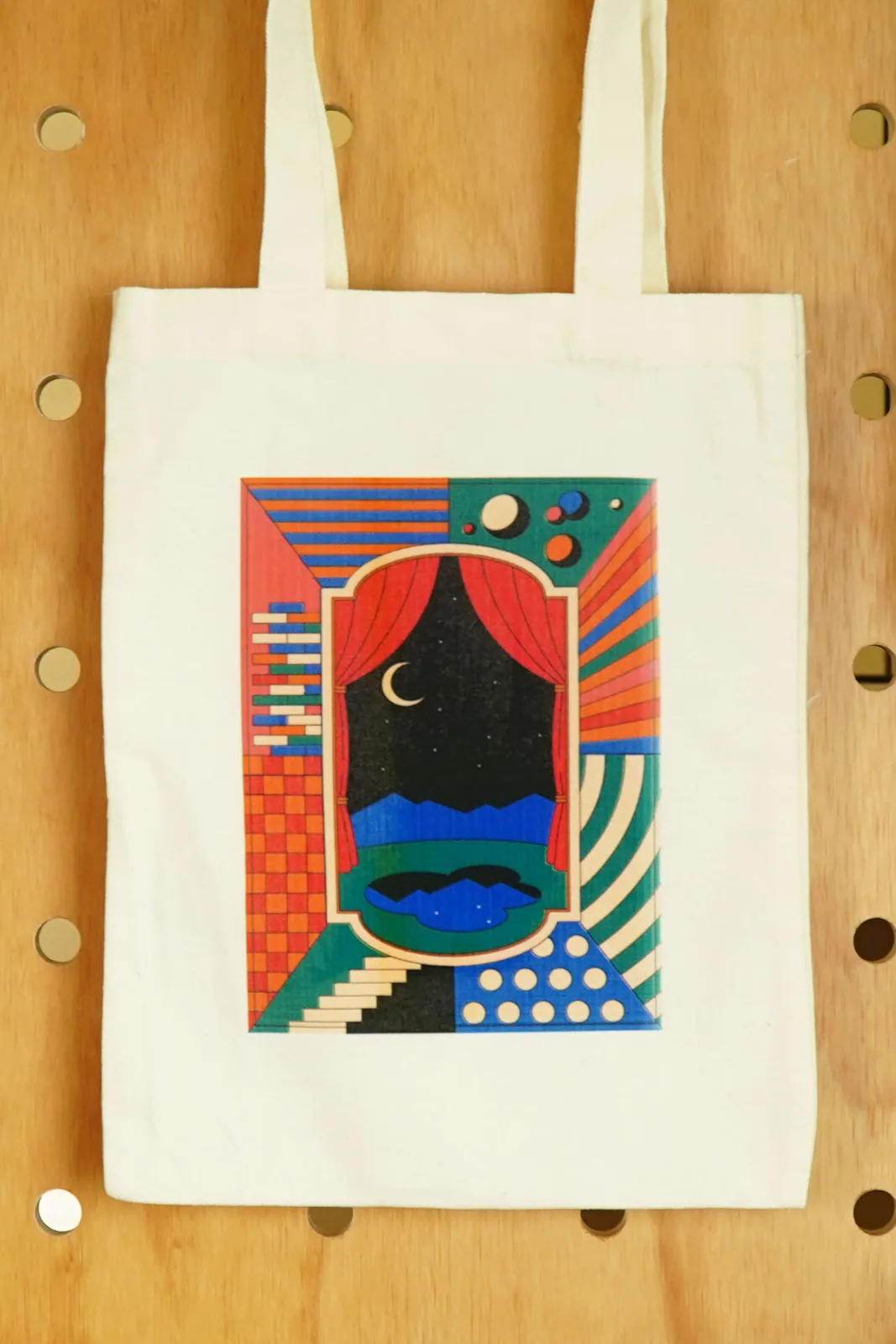

Ador specializes in printing on materials with flat surfaces, handling up to a 3mm thickness with precision and ease.
Uneven surfaces may come into contact with the print head.

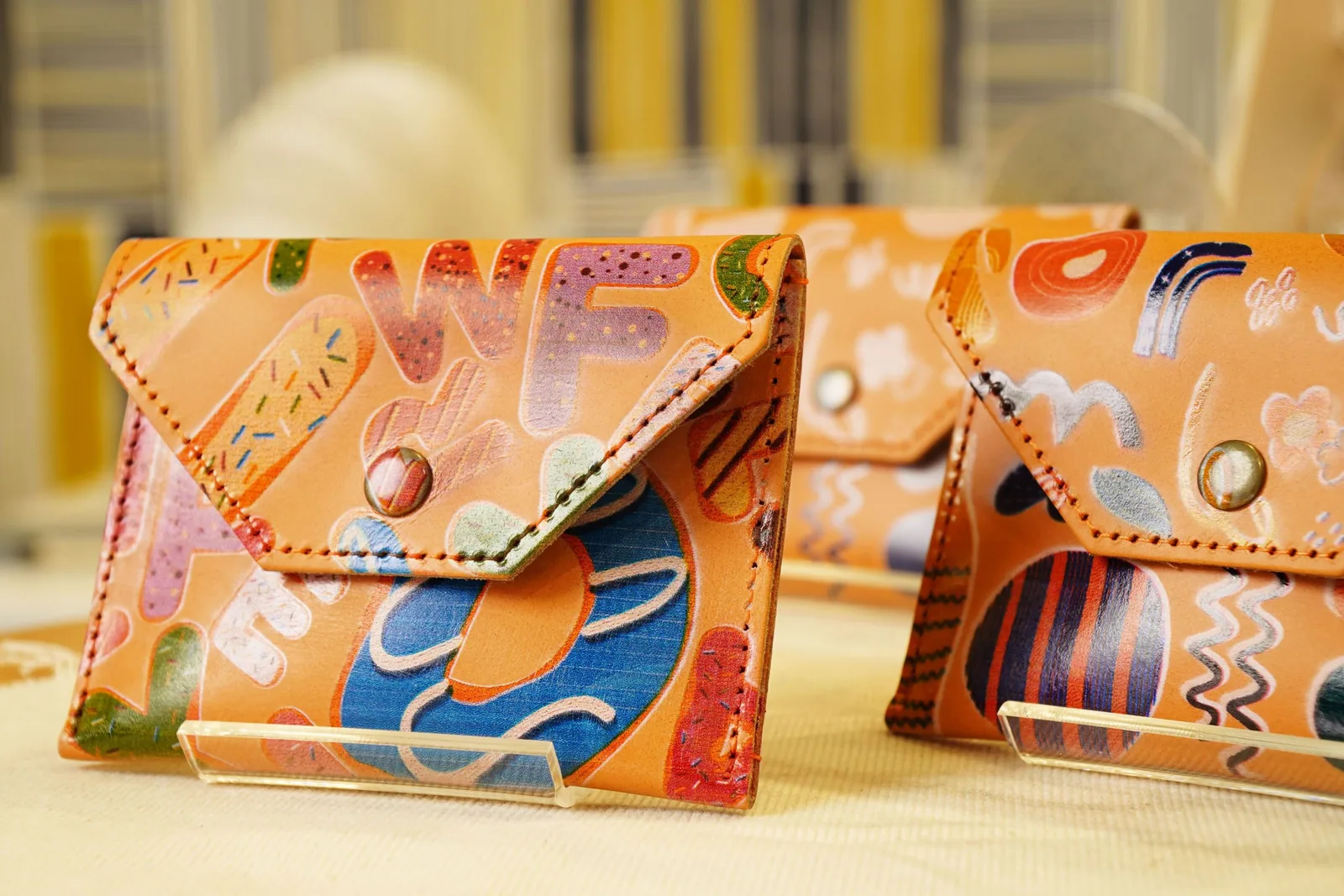

Leather bag

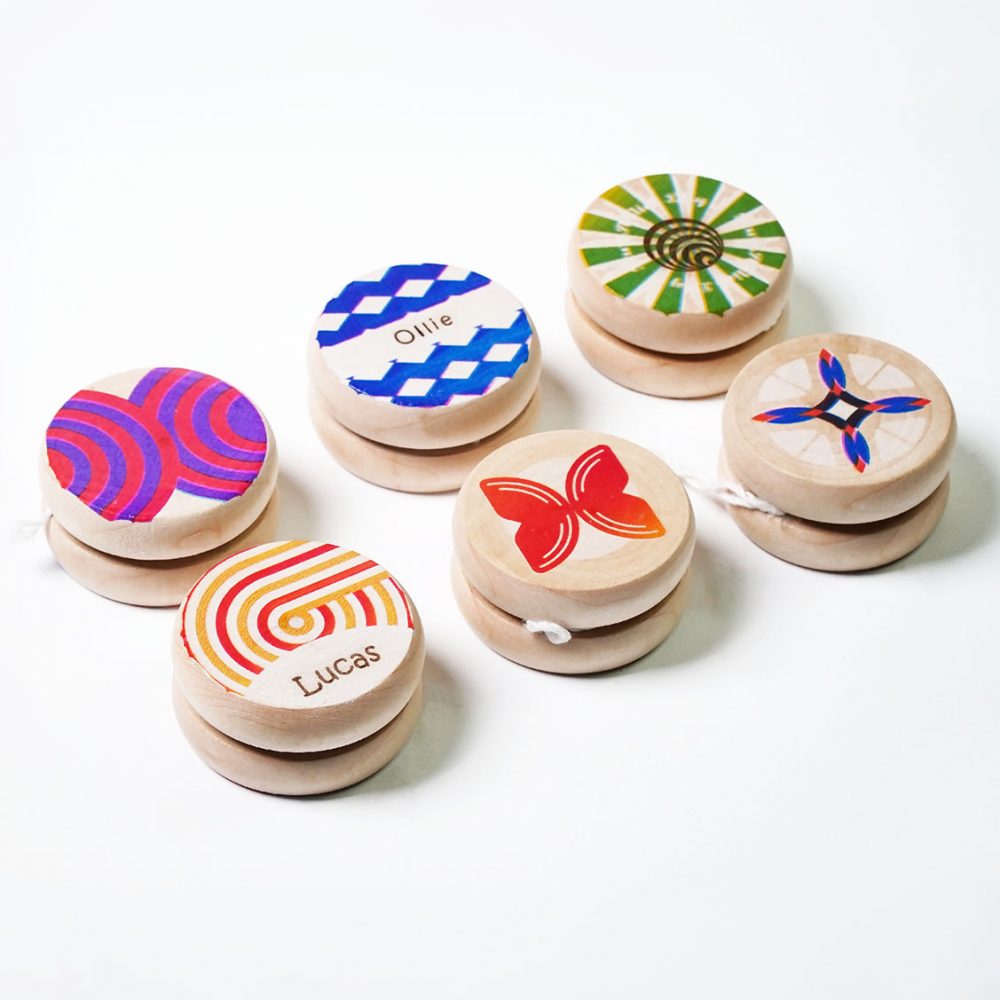

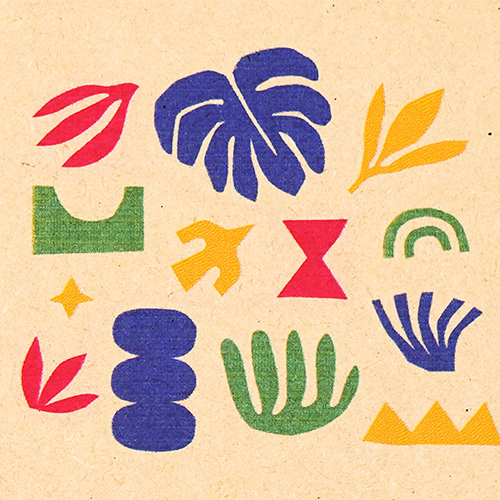

Play Around with Color in Your Creations

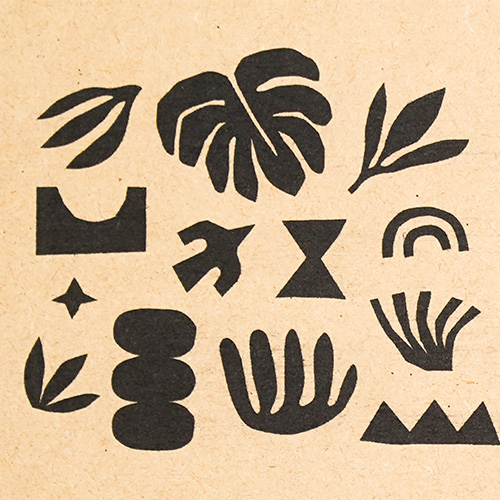

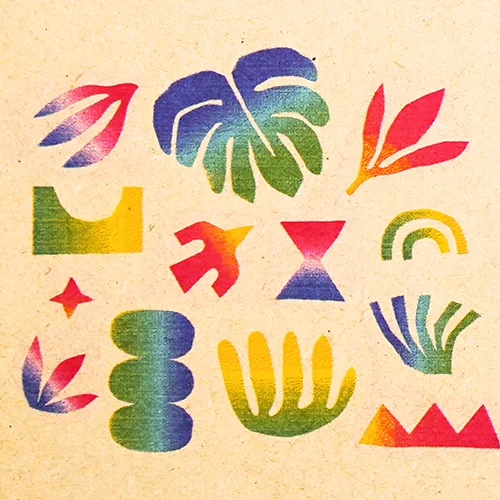

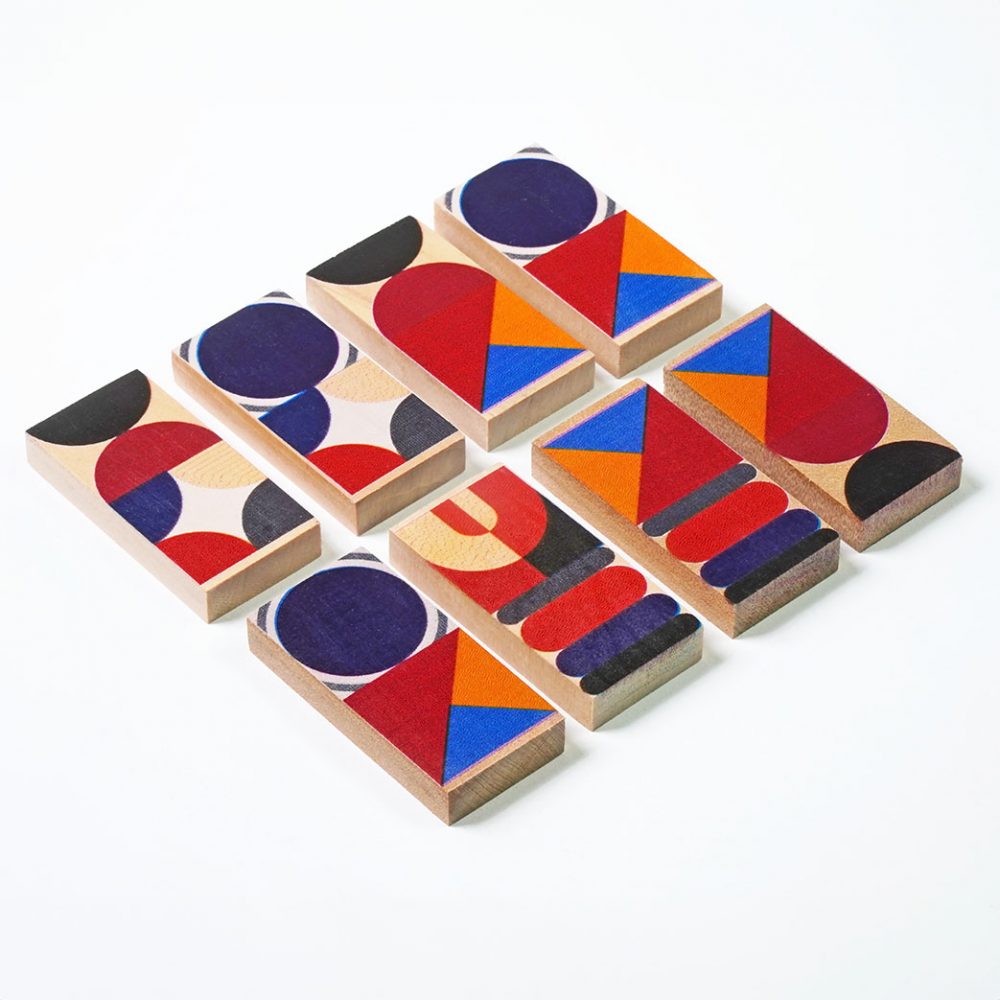

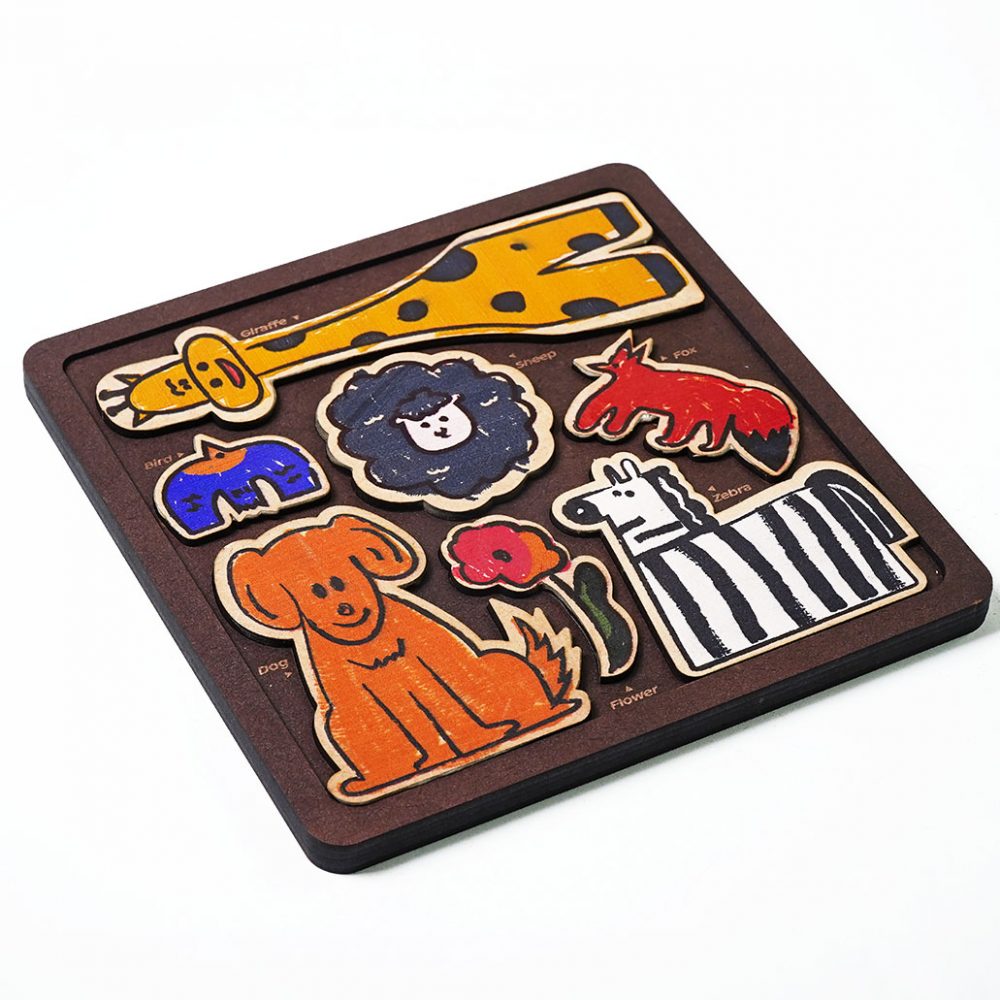

After laser cutting, add a single color, blended palette, or gradient finish to make each piece distinctly yours.

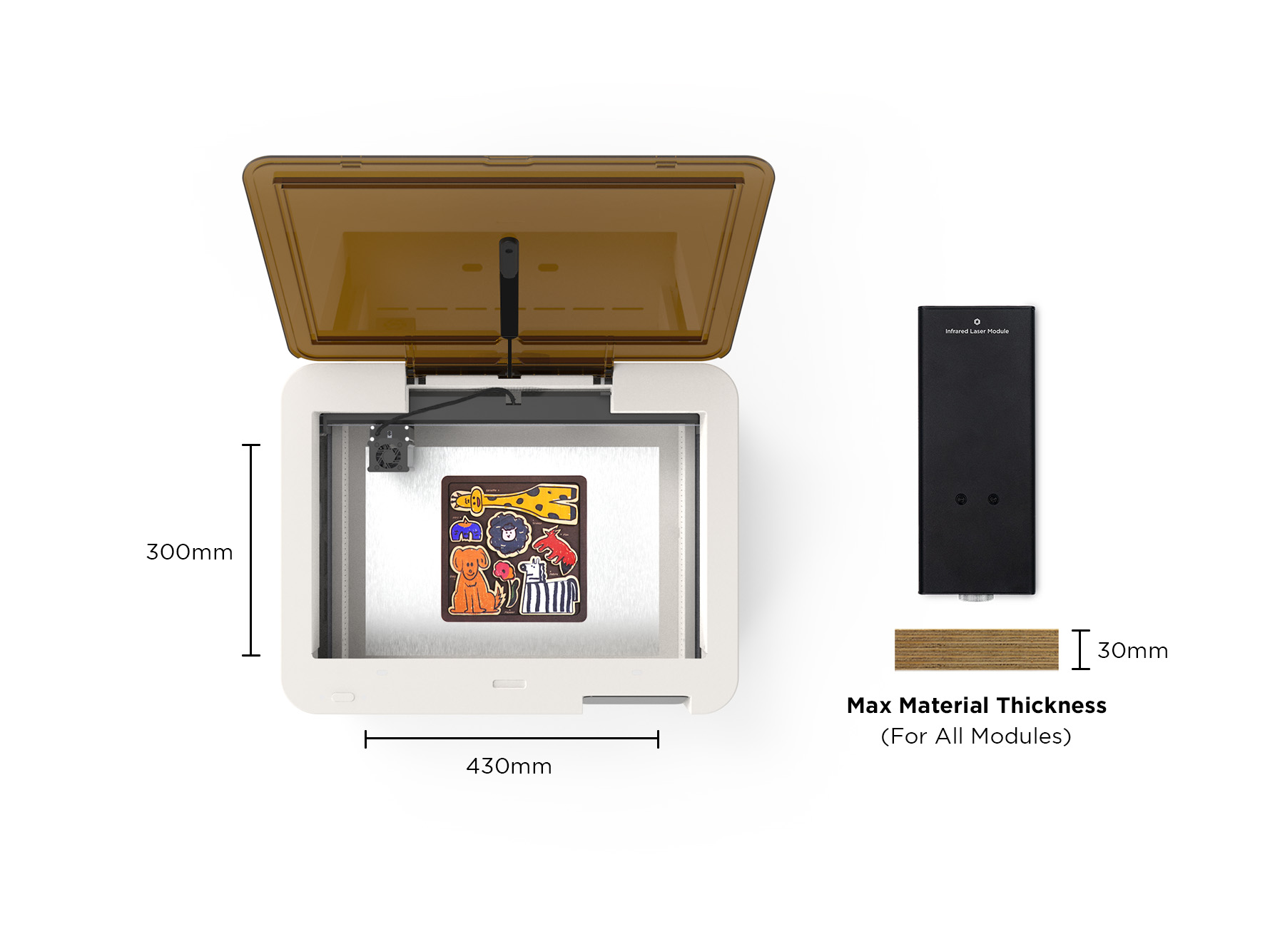

Big Workspace, Big Ideas
Ador offers a big working area of 430mm × 300mm, with a depth of 30mm, expanding the horizons of your creativity.
Built-in From the Beginning

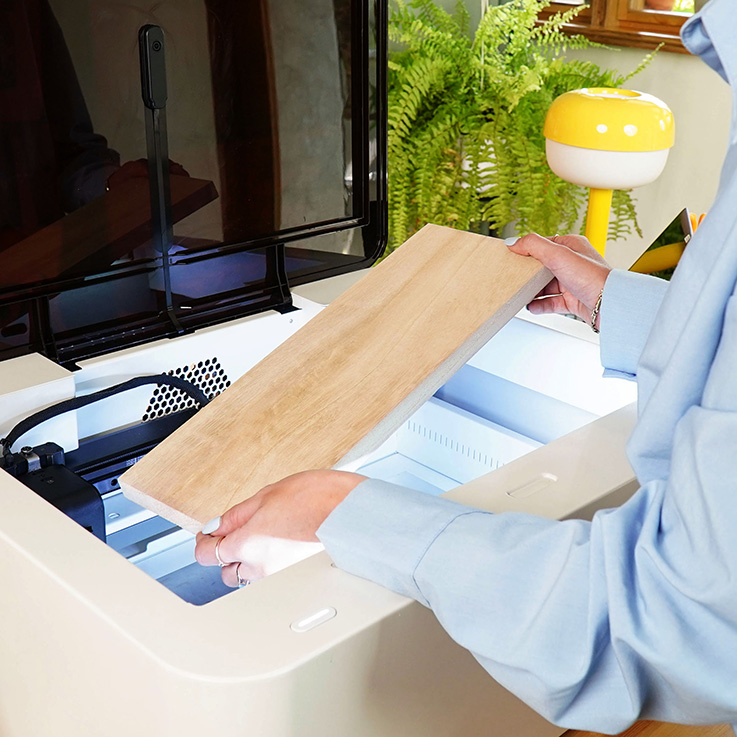

Effortless Auto Focus
Place your material and let Ador prepare the working height for the next creation.

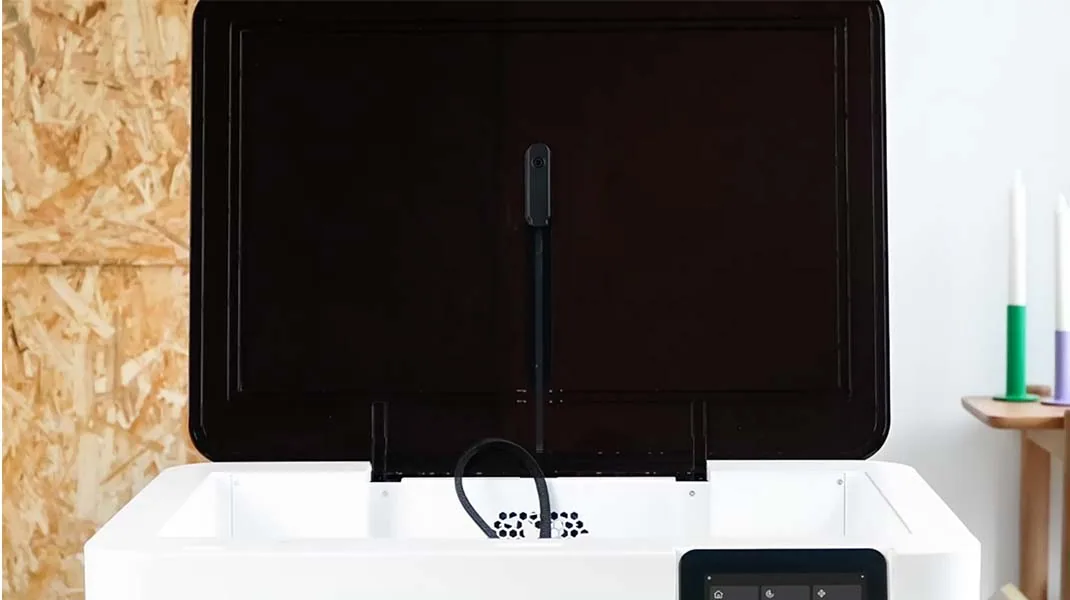

HD Camera Preview
Use the built-in 8MP camera to preview the work area and position artwork with confidence.
Built-in Air Assist
Air assist is integrated into the workflow from the beginning for cleaner, more consistent results.
Smart Dashboard
An approachable on-machine dashboard keeps everyday controls close at hand.
Essential Add-ons, The Dream Team
Rotary, Extension Base and Passthrough add-ons move ideas beyond flat surfaces, frames and ordinary dimensions.
01

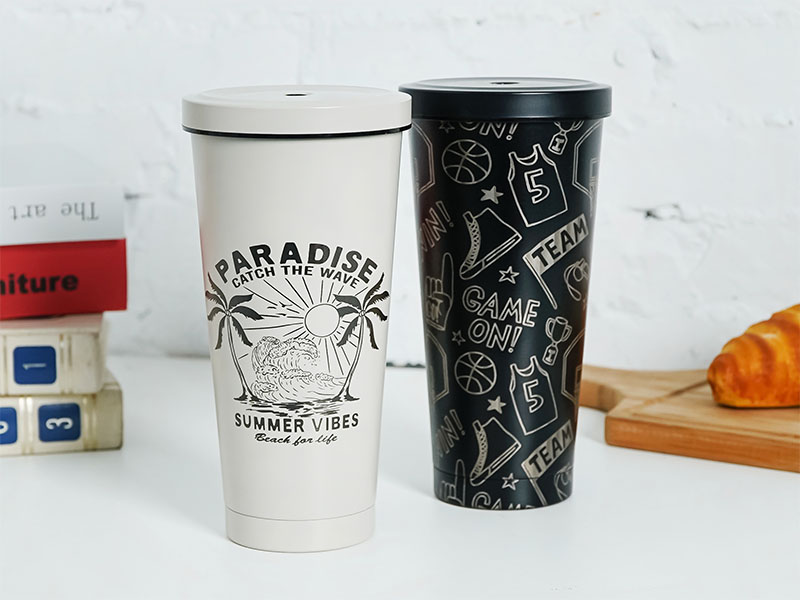

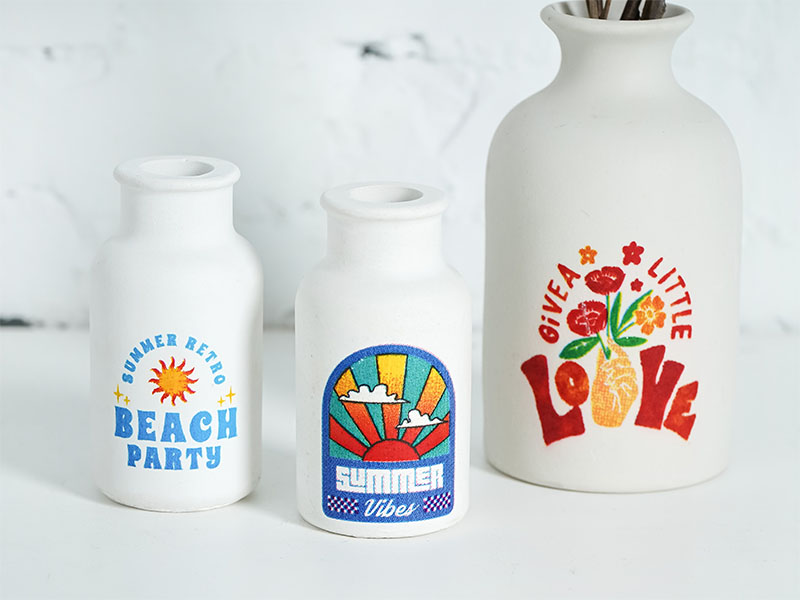

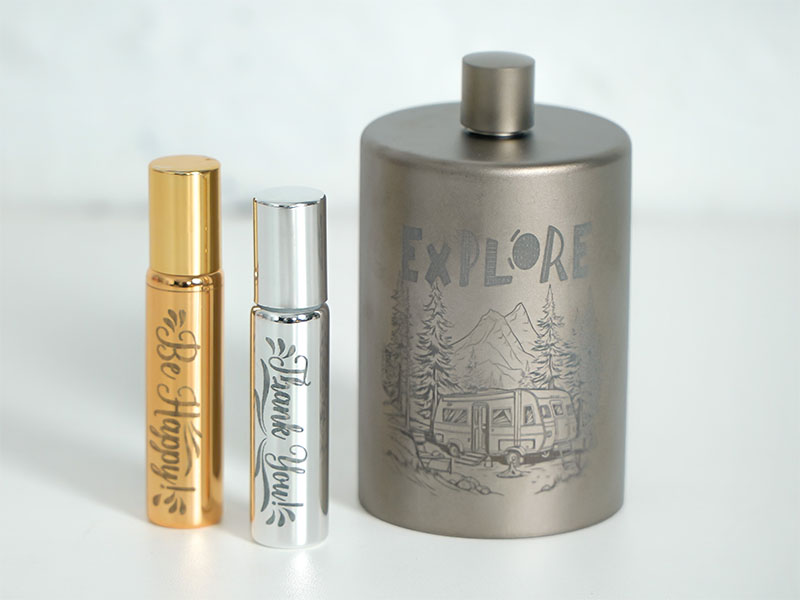

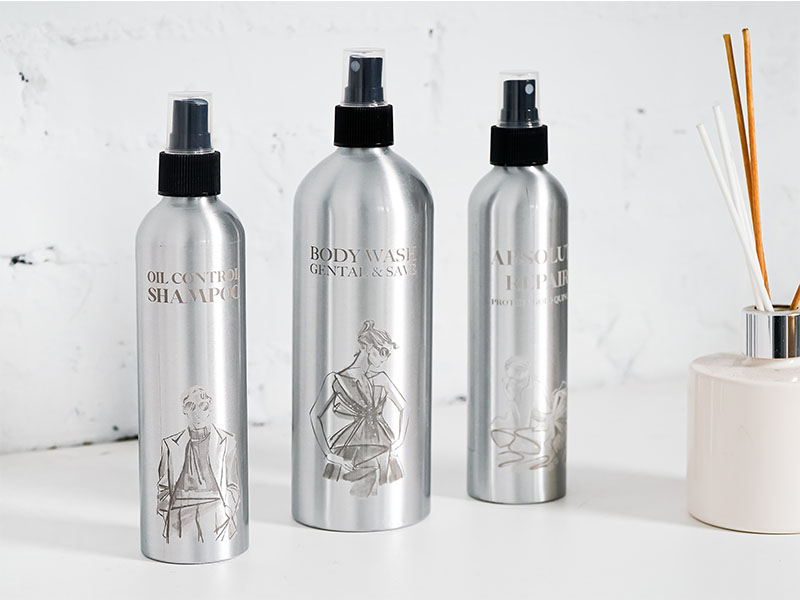

Rotary Add-on

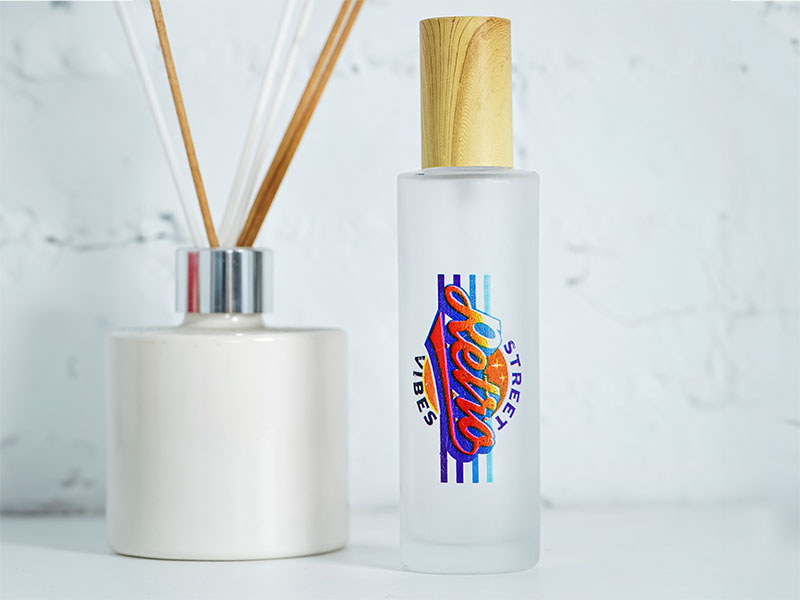

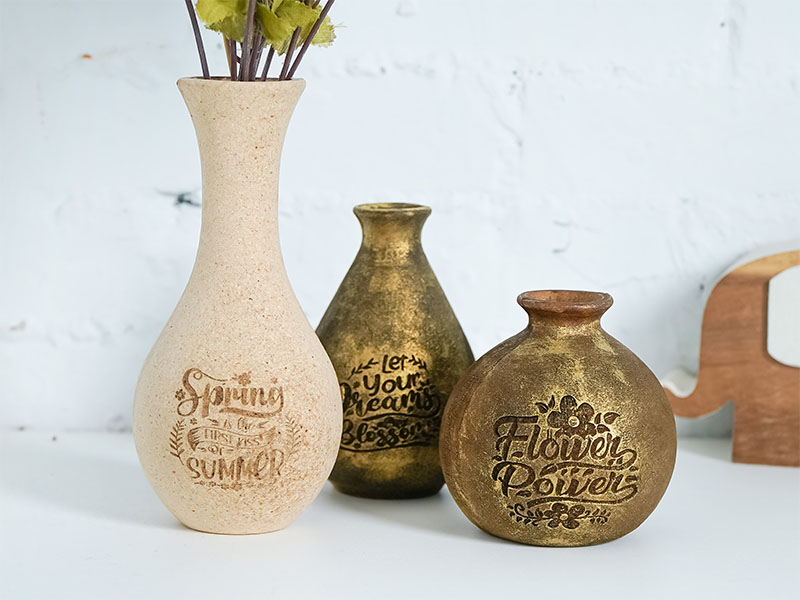

Print and engrave cylindrical objects like bottles, vases, and tumblers. The roller supports an engraving diameter up to 5.5 inches (140 mm) and a length up to 16.5 inches (420 mm).
Buy Add-on：Rotary Add-on
02

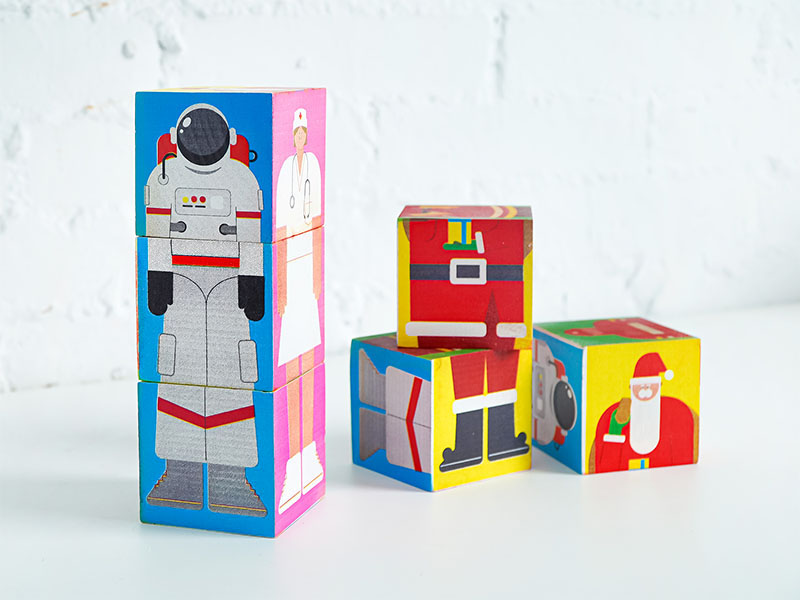

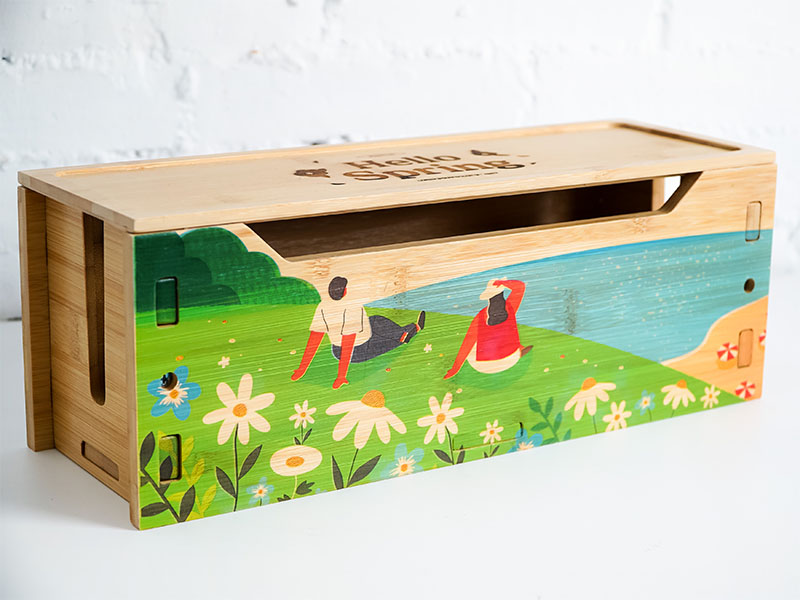

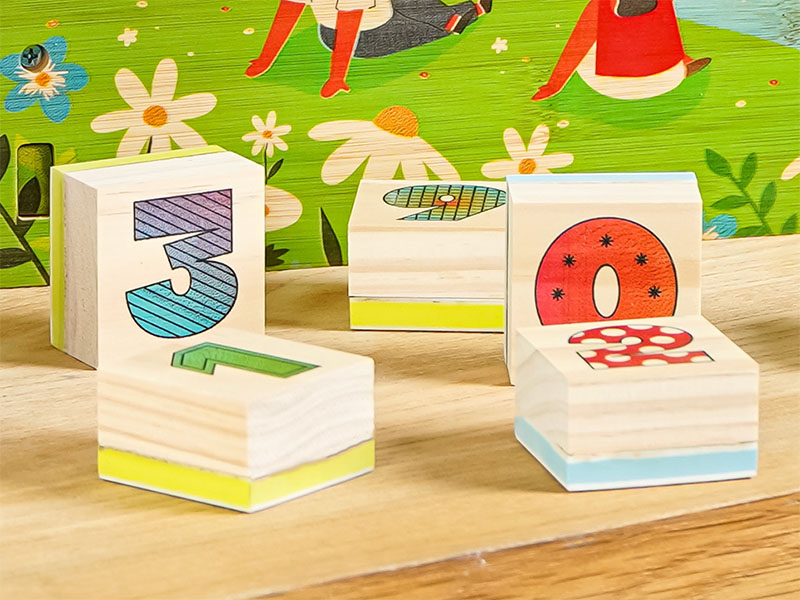

Extension Base & Passthrough
Expand Ador’s possibilities with extra room to engrave and print on objects up to 4.6 inches high.
Buy Add-on：Extension Base & Passthrough
03
Think Outside the Frame
Unlock limitless creativity with passthrough functionality—engrave, cut, or print on longer objects without boundaries.
Buy Add-on：Extension Base & Passthrough

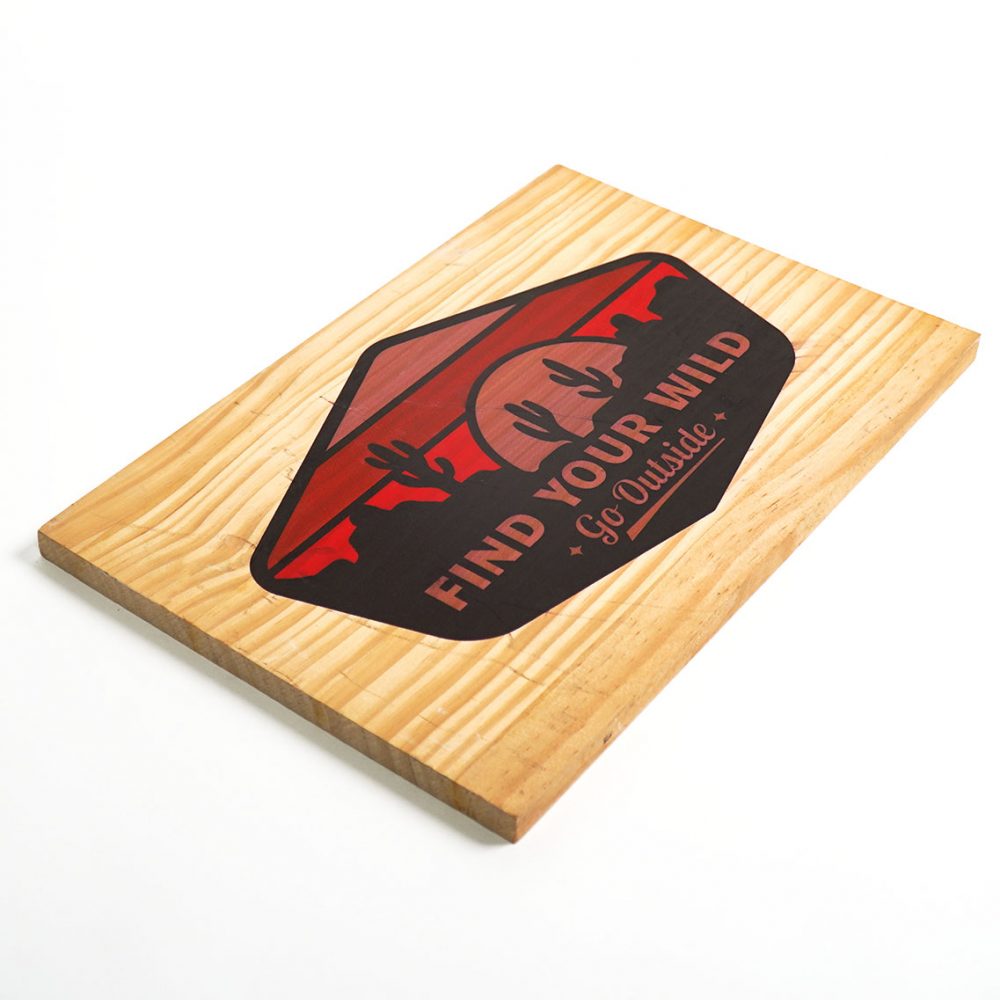

60cm Signage

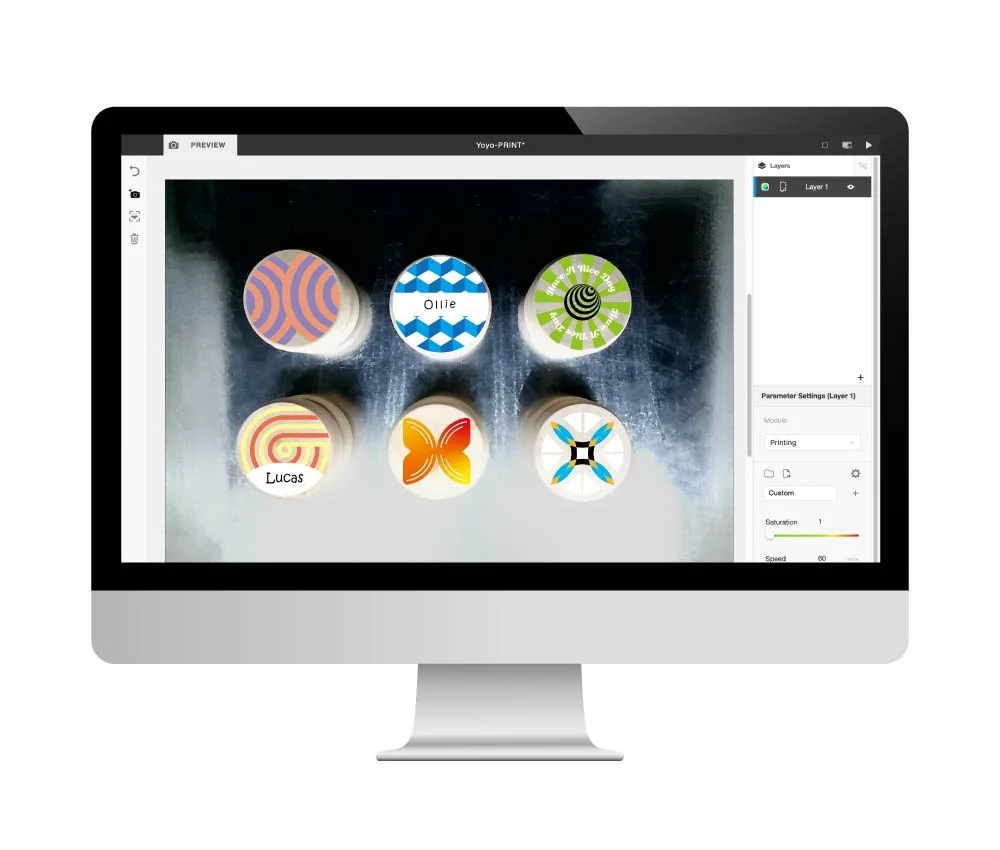

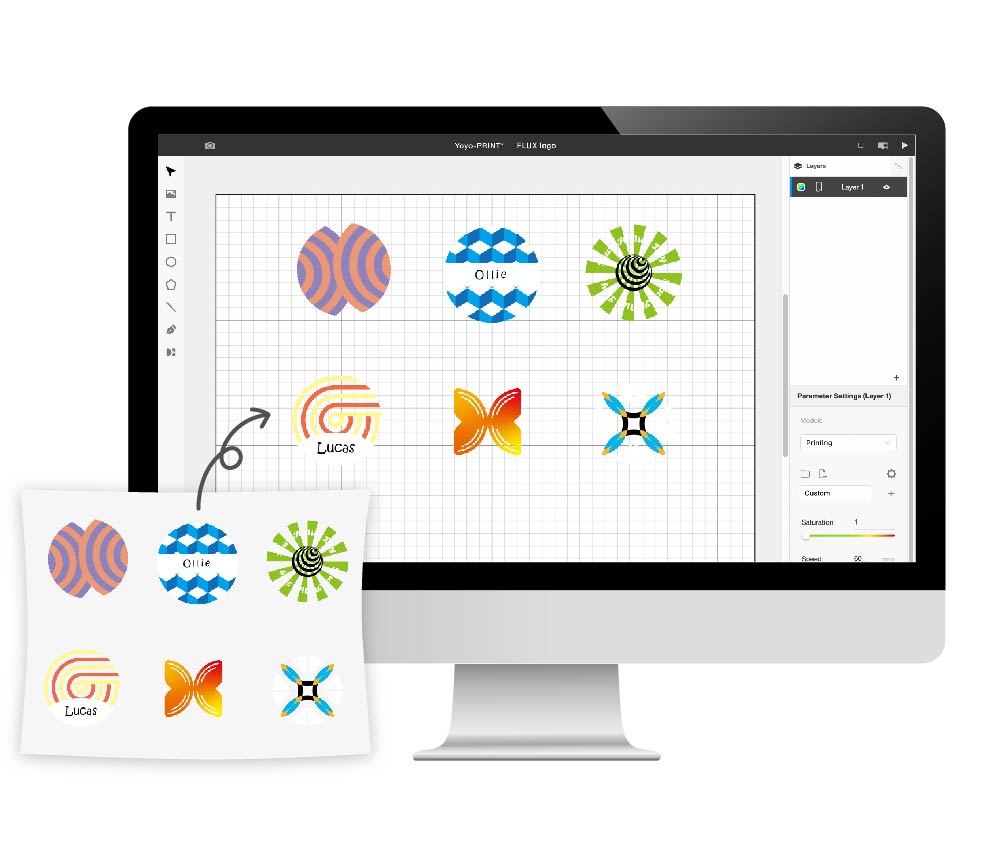

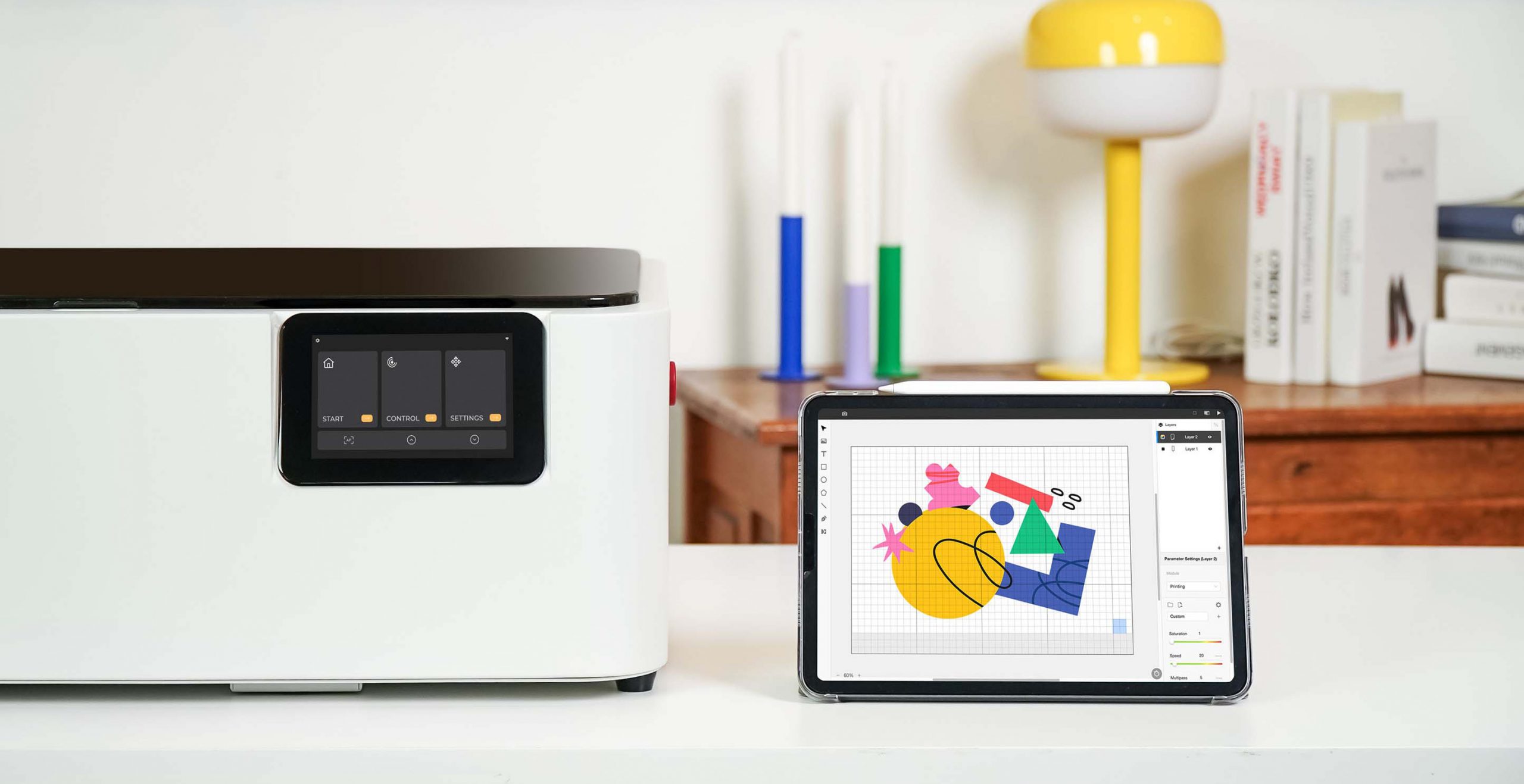

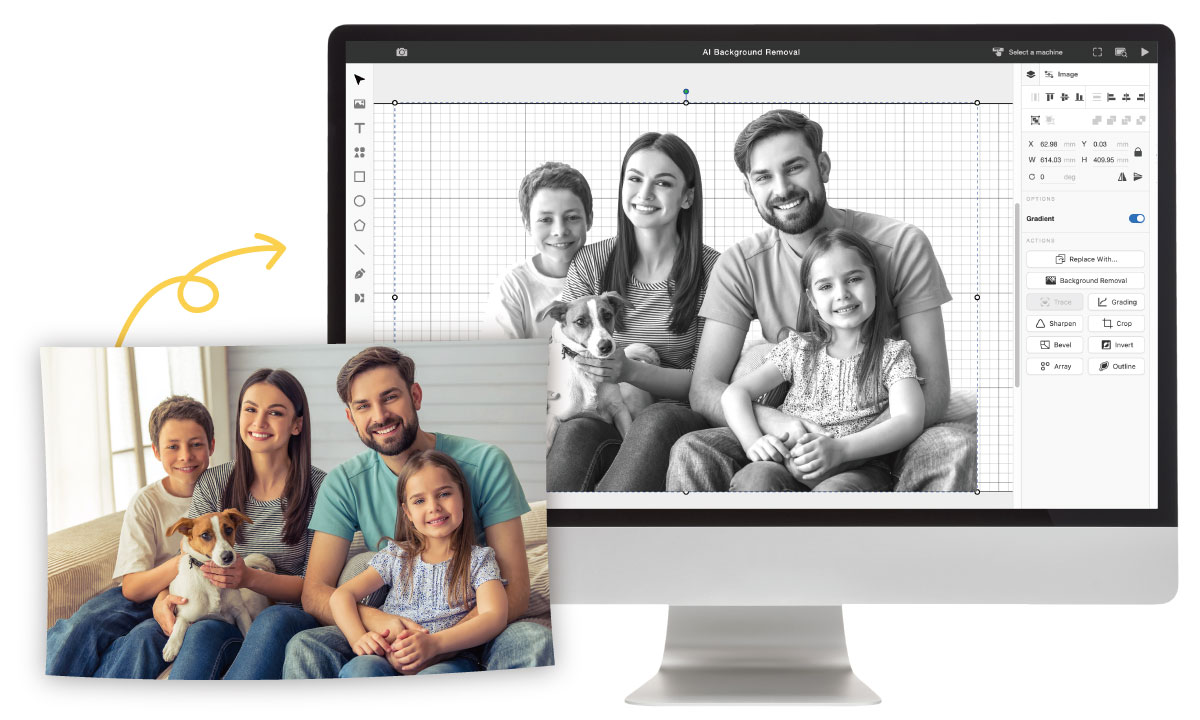

Intuitive Software Designed for Laser Cutting & Engraving
Streamlined Workflow
Compatible with Professional Design Software
SVGJPGPNGDXF
SVGJPGPNGDXFYour Safety is Our Priority

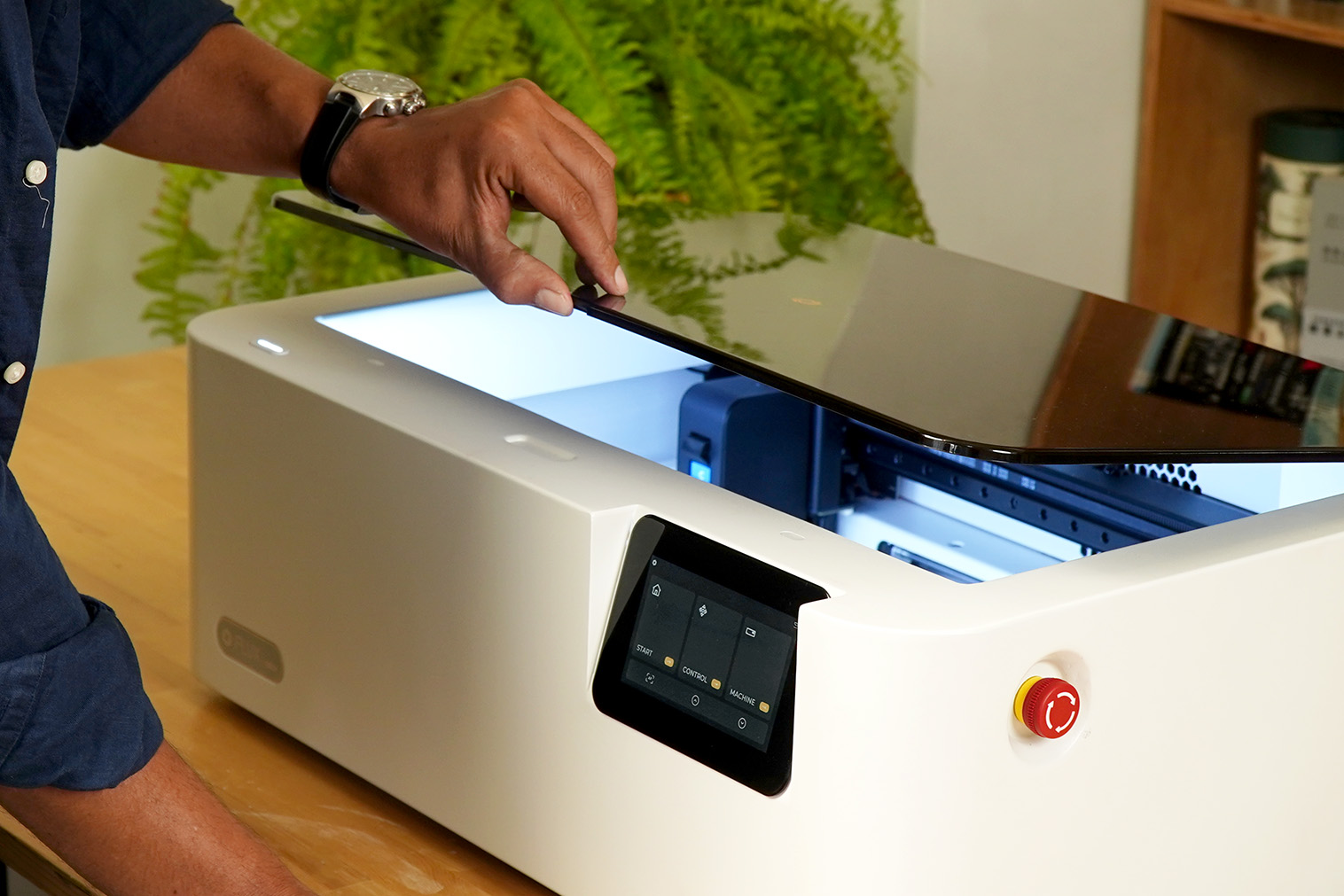

Enclosed Design with Laser-Safe Material
Shield your vision with OD5-grade material. Less than 0.001% of laser light passes through the lid.

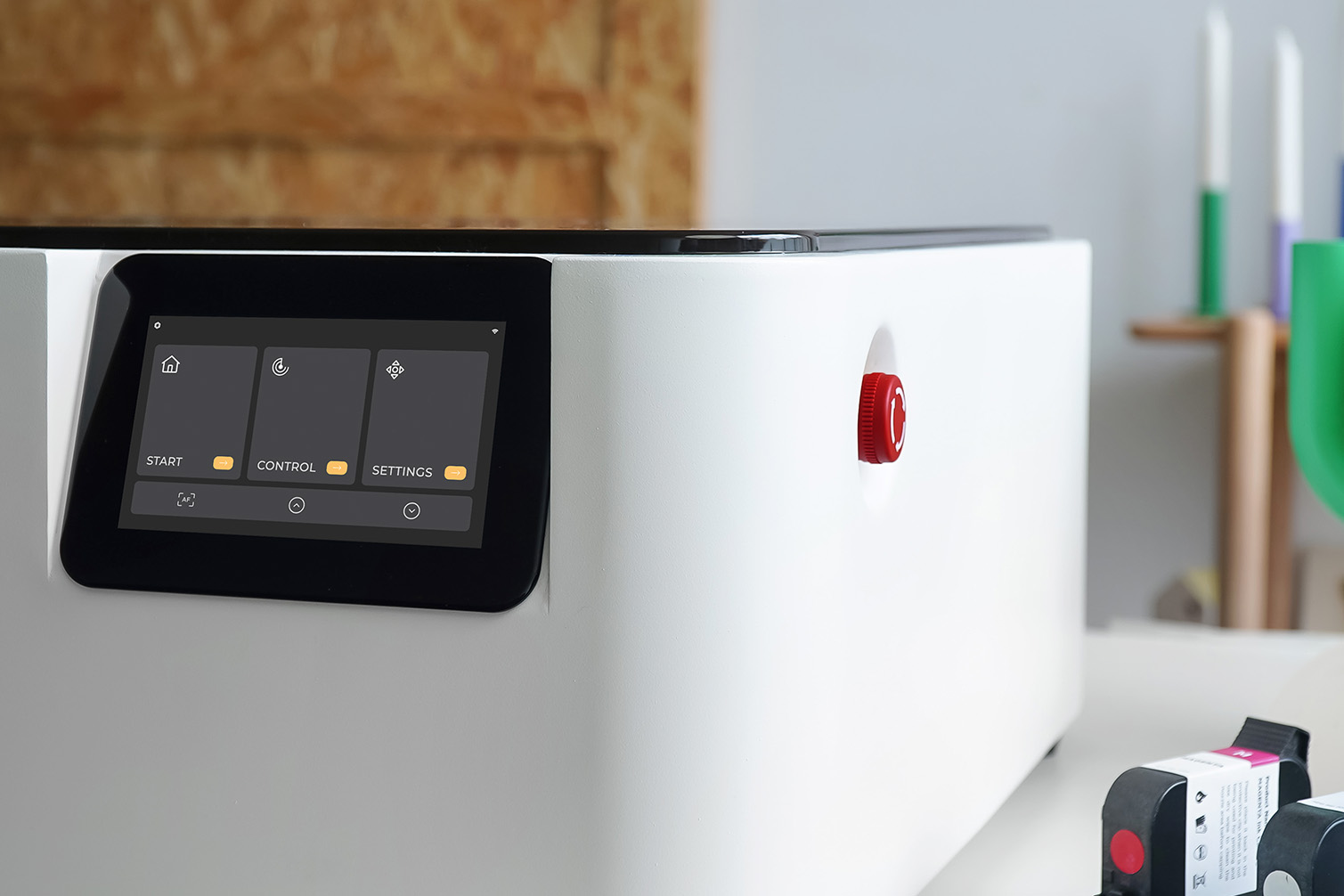

Run into an Emergency?
Press the emergency red button on the right side of the machine to instantly cut power when a hazard occurs.

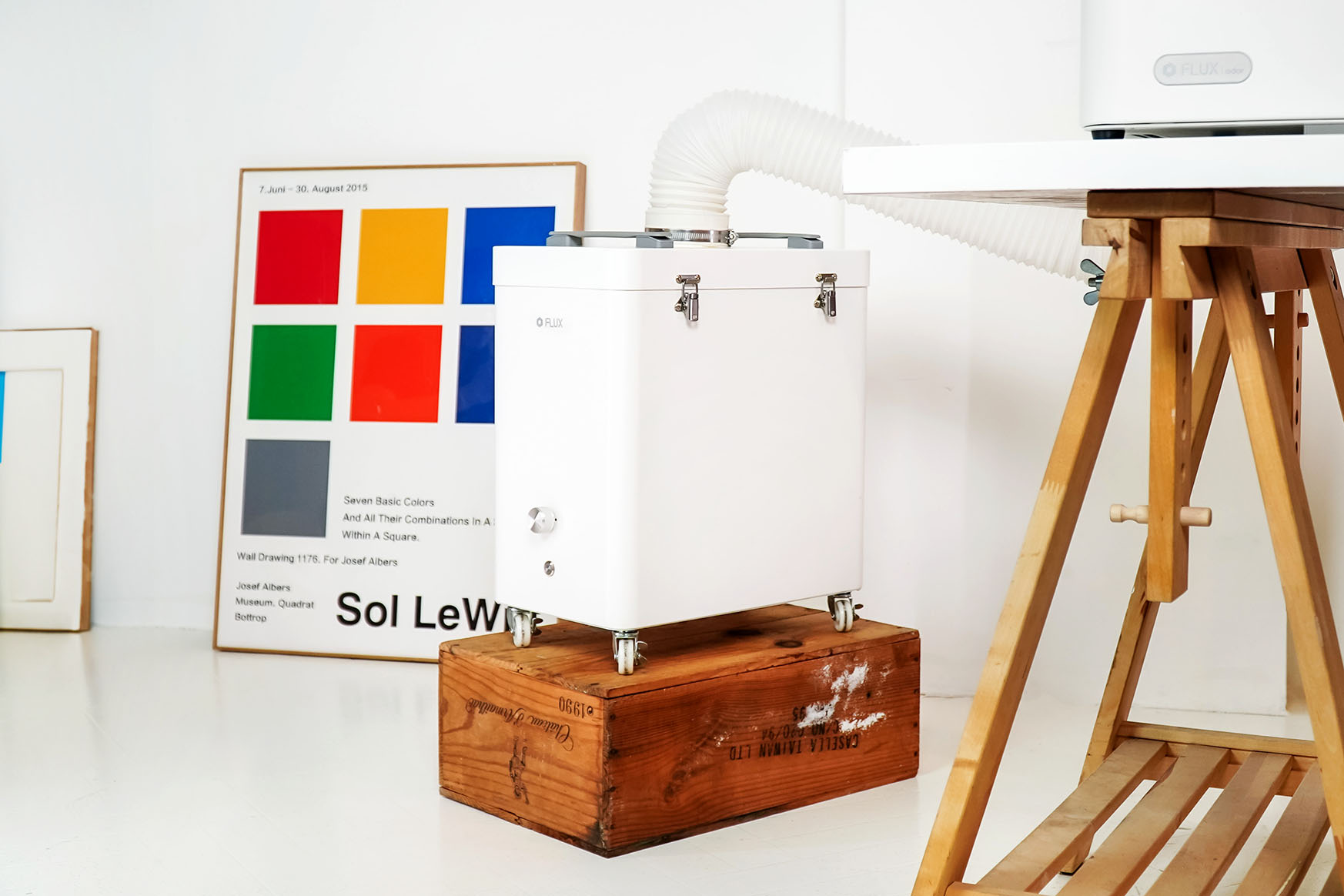

Beam Air, Your 4-Layer Filter Protection
Beam Air uses a highly effective four-layer filtration system and a brushless motor to block harmful molecules and odors generated during laser engraving and cutting.

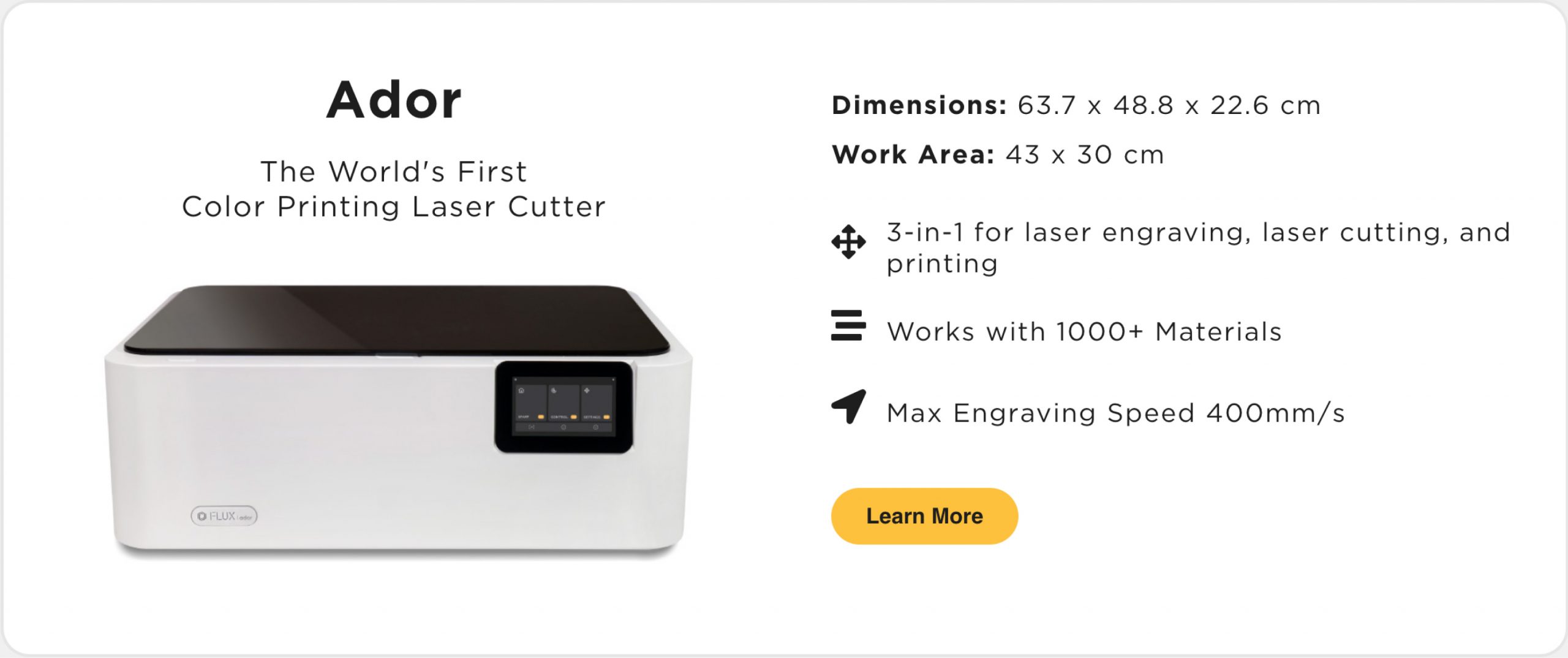

Ador Specifications
Machine
- Dimensions
- 637 × 488 × 226 mm
- Weight
- 19 kg
- Power
- AC 110–240V
- Display screen
- 5 inches
- Camera
- 8MP
- Connectivity
- Wi-Fi / USB / Ethernet (by USB dongle)
- Max engraving speed
- 400 mm/s
- Laser specification
- 10W / 20W Diode Laser; 2W Infrared Laser, 1064 nm
- Laser resolution
- Max 1000 DPI
- Printing resolution
- 300 DPI / Single Color; 150 DPI / Blended Color
Work Area
- 10W Diode Laser
- 430 × 300 mm
- 20W Diode Laser
- 430 × 290 mm
- 2W Infrared Laser
- 430 × 282 mm
- Printing
- 430 × 270 mm
Work Area Depth
- With triangular prism
- 20 mm
- Without triangular prism
- 30 mm
Software
- Operating system
- Windows / macOS / Linux / ChromeOS / iOS / Android
- File type
- JPG / PNG / SVG / DXF / AI / PDF
FAQ
General
What makes Ador a 3-in-1 laser cutter?
Ador supports interchangeable diode laser, infrared laser and color printing modules, combining cutting, engraving and printing in one creative system.
Who is Ador designed for?
Its flexible workflow is presented for education, sellers, businesses and crafters, with modules that can be selected for different applications.
About Hardware and Software
Which camera and focus tools are built in?
Ador includes an 8MP camera preview and auto focus, supported by the Beam Studio workflow.
Can Ador work beyond flat materials?
The optional Rotary Add-on supports cylindrical objects, while the Extension Base and Passthrough expand the kinds of taller and longer projects you can plan.
About Materials
Can Ador engrave on metals?
The 10W/20W Diode Laser Modules are versatile tools that can be used for different applications. They can directly engrave metal surfaces or remove anodized coatings on metals. Moreover, when combined with the 2W Infrared Laser Add-on, it can engrave other materials such as gold, brass, titanium, aluminum, black acrylic, ABS plastic, silver, and iron.
What is the maximum thickness can Ador cut?
The cutting thickness varies for different materials; for detailed information, please refer to Ador’s Material List.
Can Ador cut through plastic?
PVC and generic vinyl must not be laser-cut. Other plastics require their own verified material and process rule; this answer does not infer a blanket approval or prohibition.
Can Ador engrave or cut acrylic?
For blue-diode cutting, Do not use the blue-diode module to cut transparent, white, light-colored, or blue-spectrum acrylic. This is an optical compatibility limit, not a blanket acrylic-safety rule.
