RF Laser Tube
80W30W 60W
Finer engraving, faster fulfillment, and repeatable production quality, HEXA RF is the upgrade that changes what your laser can deliver.
32 mm acrylicin one pass
2000 mm/smax speed
0.07 mmbeam spot
20000 hourslifespanGet the highlights
Cuts up to
32 mmAcrylic
*80WDetailed Engraving
Rotary Compatible
cylinders, circles, & cones
Super High Speed
2000mm/sLong Lasting Laser Tubes
20000 hours
Finer, Faster, and Built to Last.
730 × 410 mmWorking Area
Extension Pocket
for thicker and larger material
600 × 200 mm
Seamless Workflow
from Illustrator to Beam Studio
Ultra-fine Beam Spots
Narrow Kerf

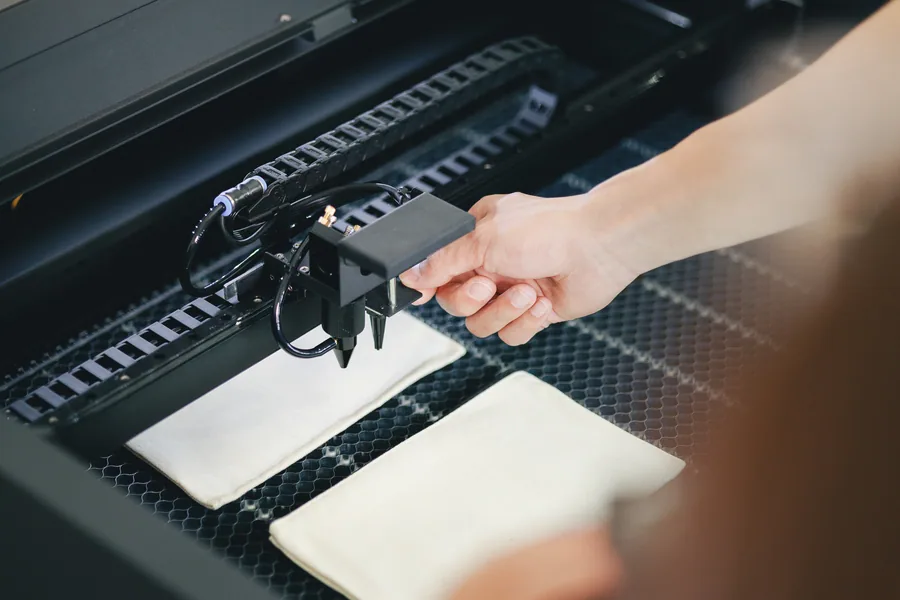

Automatic Focusing

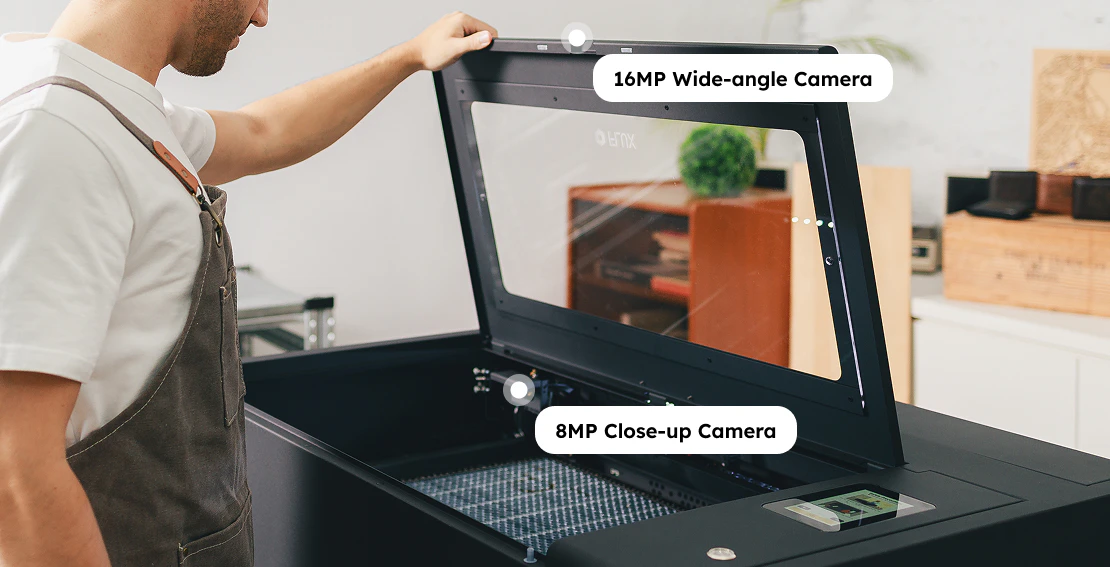

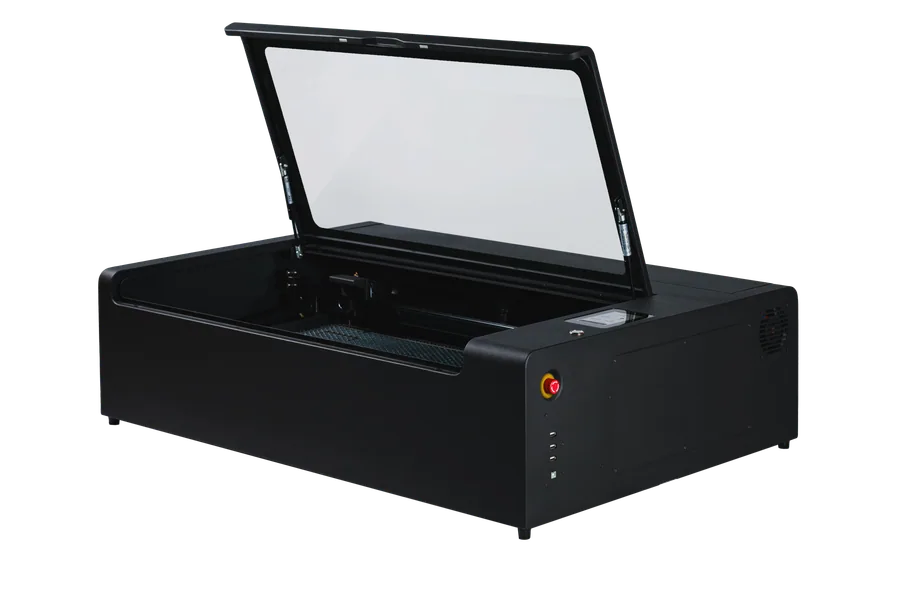

Dual-Cameras Preview
8MP Close-up16MP Wide-angle
Compatible
Class 1
Safety
RF Laser Tube
80W30W 60W
Cuts up to
32 mmAcrylic
*80WUltra-fine Beam Spots
Narrow Kerf
Detailed Engraving
Rotary Compatible
cylinders, circles, & cones
Compatible
Class 1
Safety
Super High Speed
2000mm/sFiner, Faster, and Built to Last.
Long Lasting Laser Tubes
20000 hours
Working Area
Extension Pocket
for thicker and larger material
600 × 200 mmSeamless Workflow
from Illustrator to Beam Studio
Automatic Focusing
Dual-Cameras Preview
8MP Close-up16MP Wide-angle

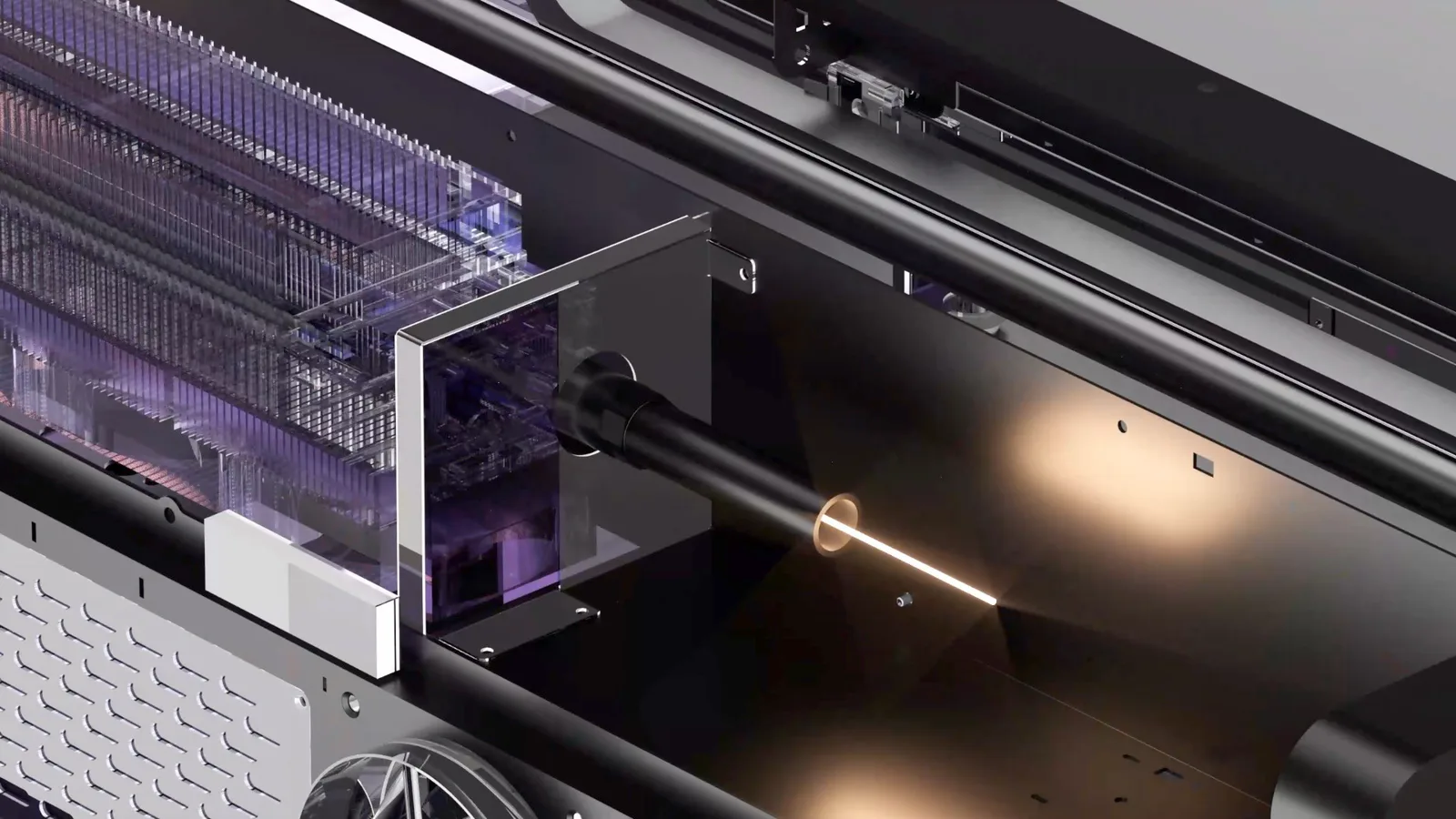

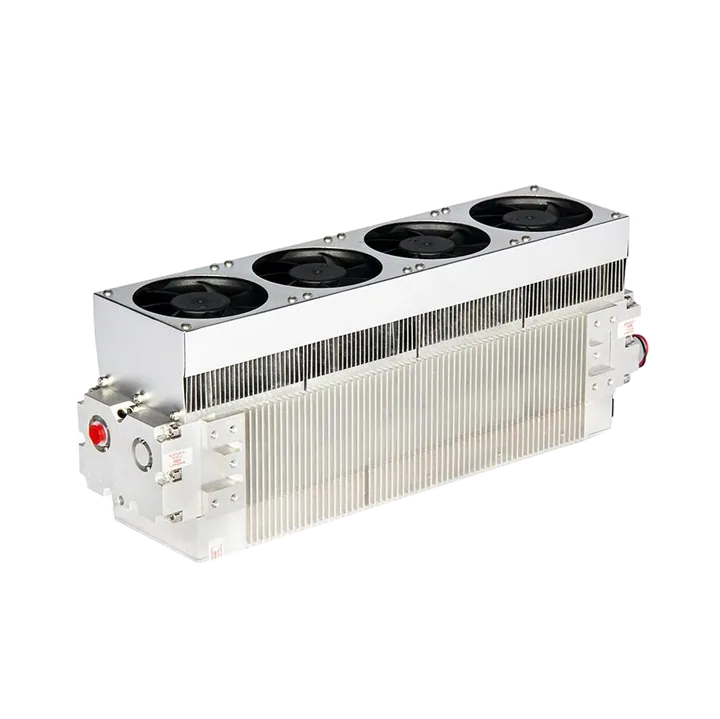

How RF Changes Everything
RF (Radio Frequency) changes how a laser performs. With a finer beam, greater stability, and longer service life, the RF metal laser tube is built for cleaner engraving, sharper detail, and more consistent results over time. From intricate designs to scaled production, it delivers the precision and reliability professionals depend on.
Stable performance
Stunning Detail
Incredibly fine beam
Faster than ever
Why Upgrade to HEXA RF
RF Tube
Glass Tube
max 20,000 hours lifespan
max 10,000 hours lifespan
max 2000mm/s speed
max 900mm/s speed
2000 DPIultra-high resolution
1000 DPIstandard resolution
0.07 mm ultra-fine laserbeam spots
0.3 mm standardlaser beam spots
Who is HEXA RF For
Growing Custom Product Sellers
Turn custom orders into consistent production. When orders grow, speed and consistency matter. HEXA RF helps you produce cleaner work, faster, and with fewer mistakes.
- Faster batch production
- Consistent engraving quality
- Ready for daily orders
See the Difference in Precision
Featuring a 0.07mm ultra-fine beam and up to 2,000 DPI resolution, HEXA RF delivers sharper, more precise engraving and cleaner edges compared to traditional CO₂ glass tubes.

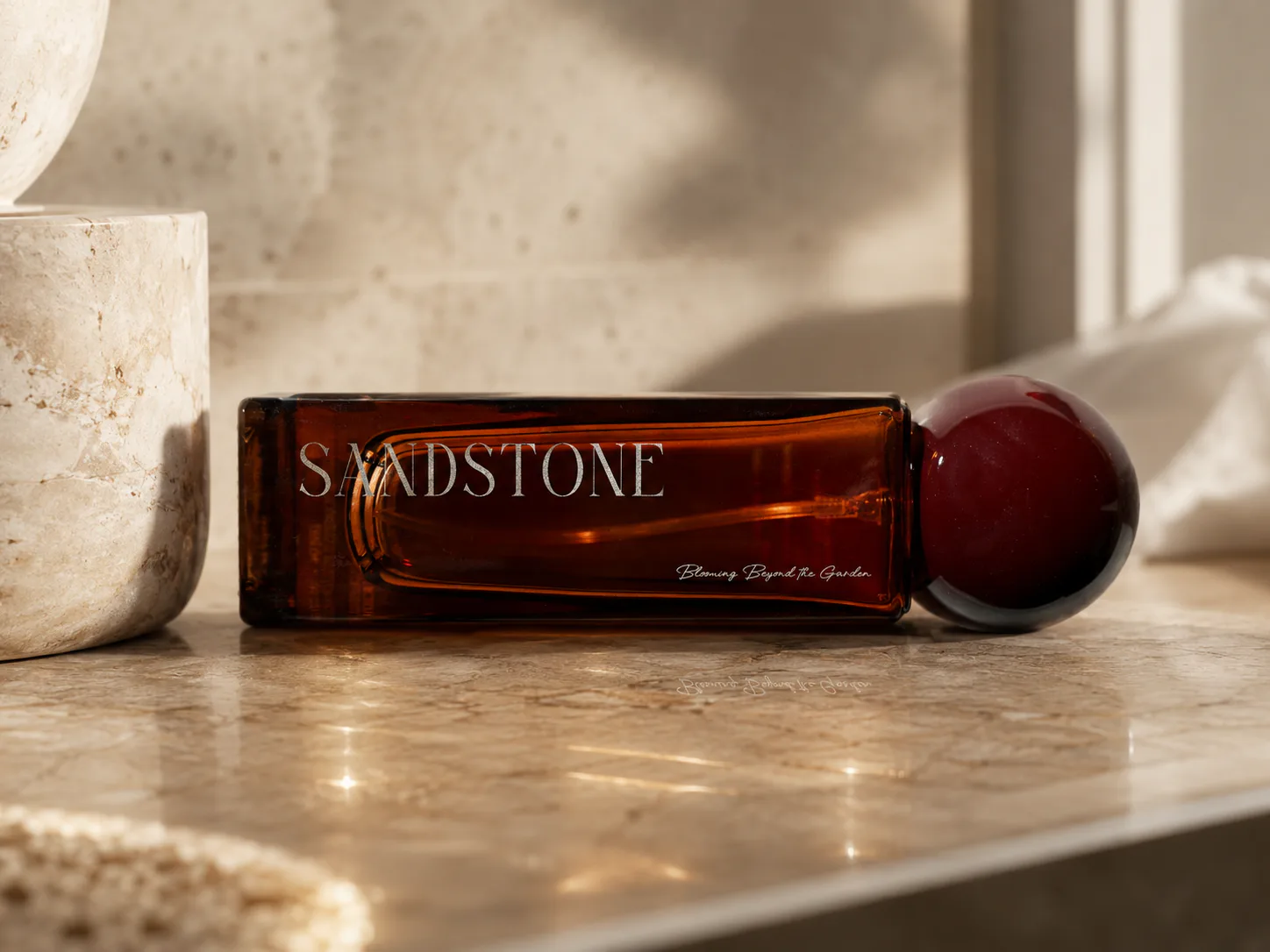

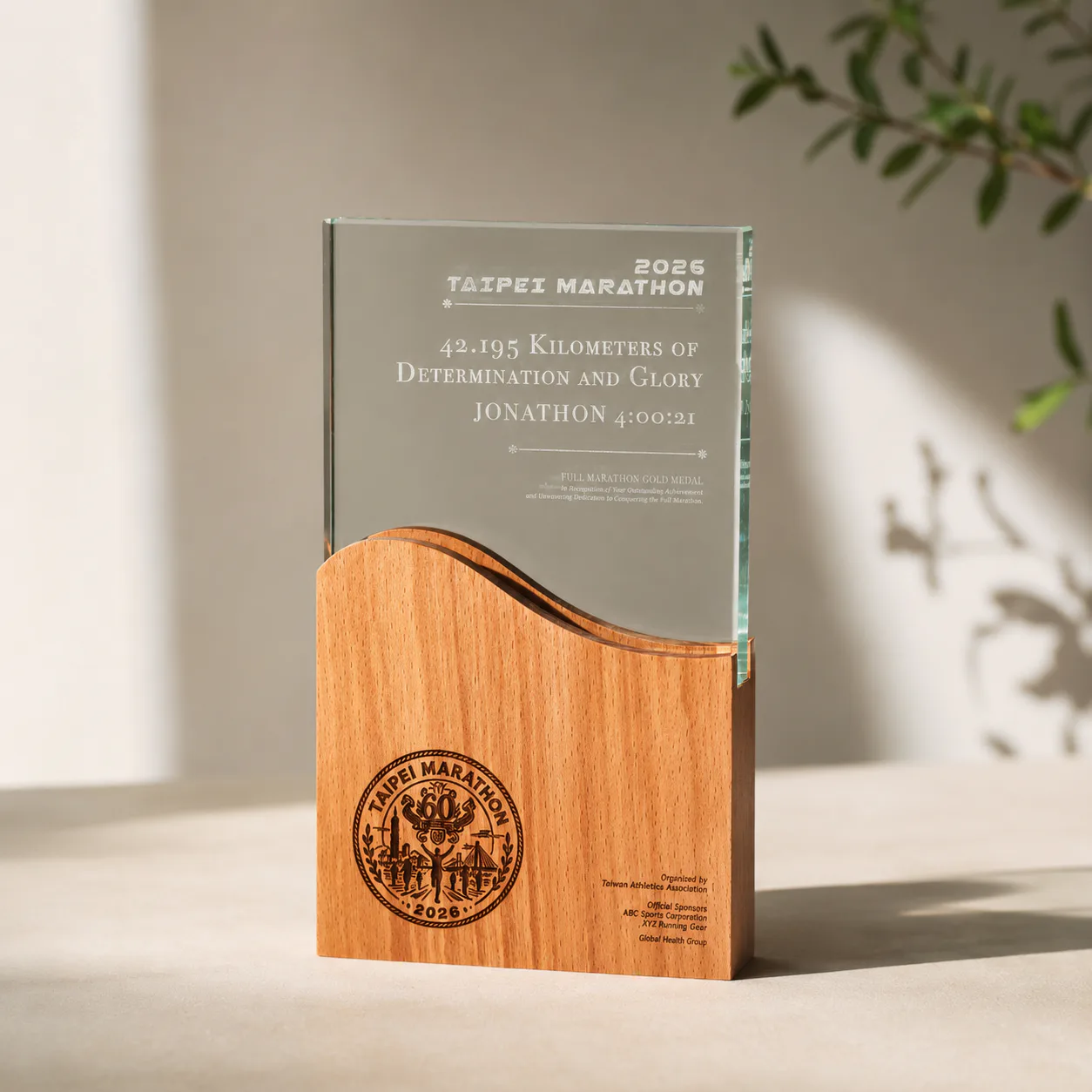

Create Premium Personalized Products That Sell
Produce More, Earn Smarter
Model how product pricing, costs, monthly sales, and HEXA RF power configurations can shape your return.
Personalized Flask Gift Set
Horse Portrait Wall Art
Blink, and it’s done
With engraving speeds of up to 2,000 mm/s, HEXA RF is built for high-throughput production. Powered by a metal RF laser tube, it helps you move through batches faster while maintaining precise, consistent results.
Power That Cuts Deeper

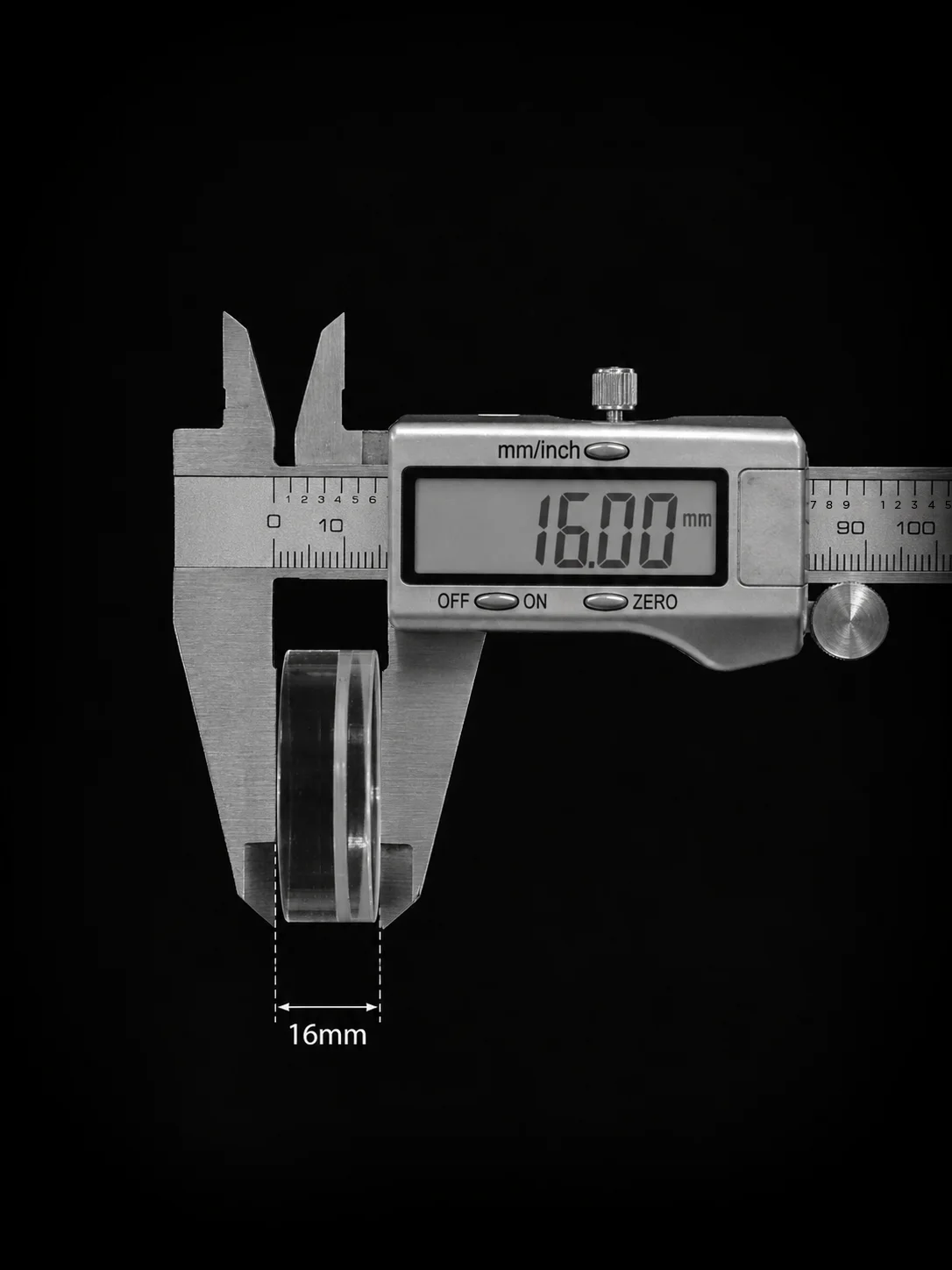

30W RF
16 mm acrylic

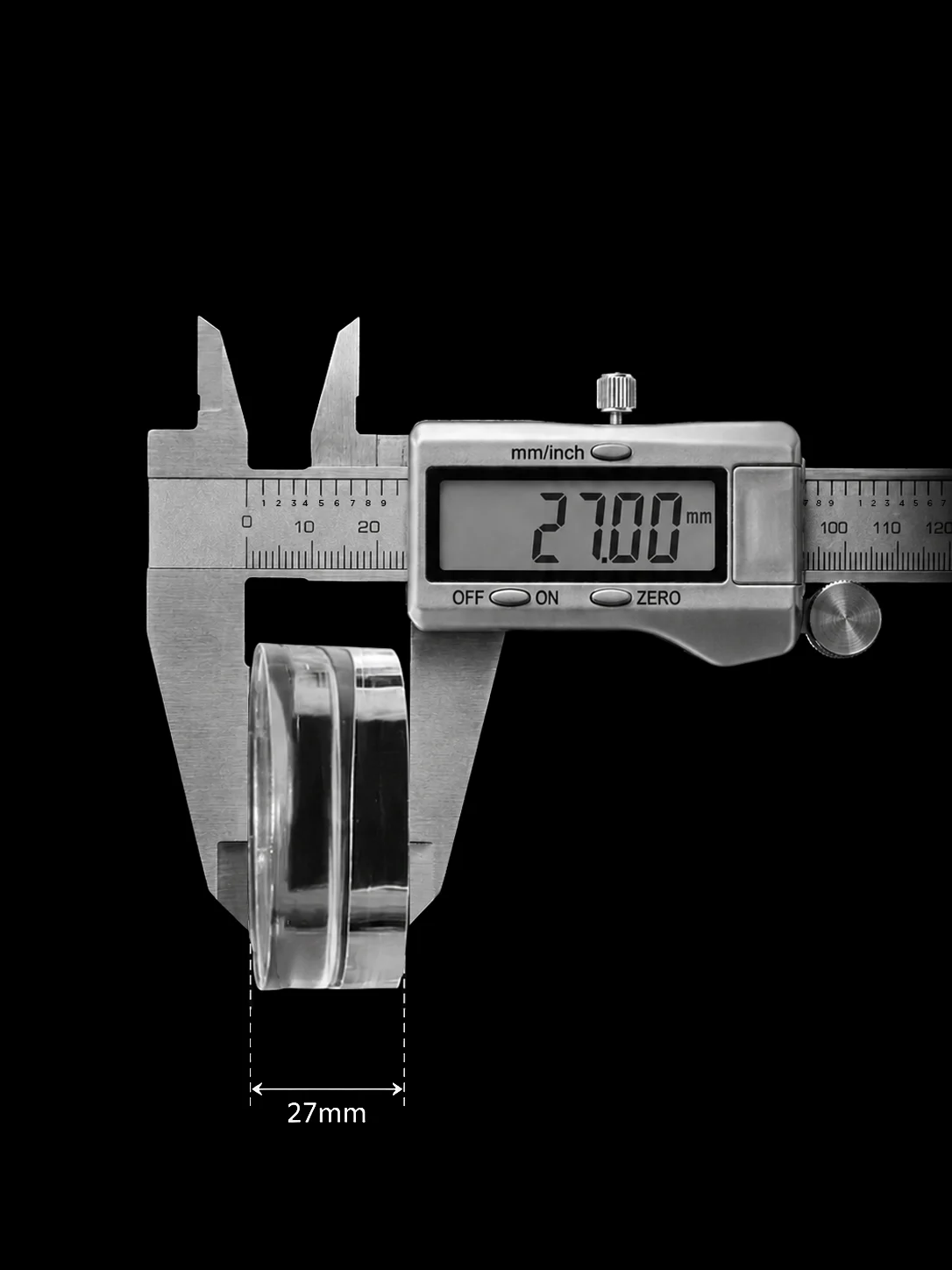

60W RF
27 mm acrylic

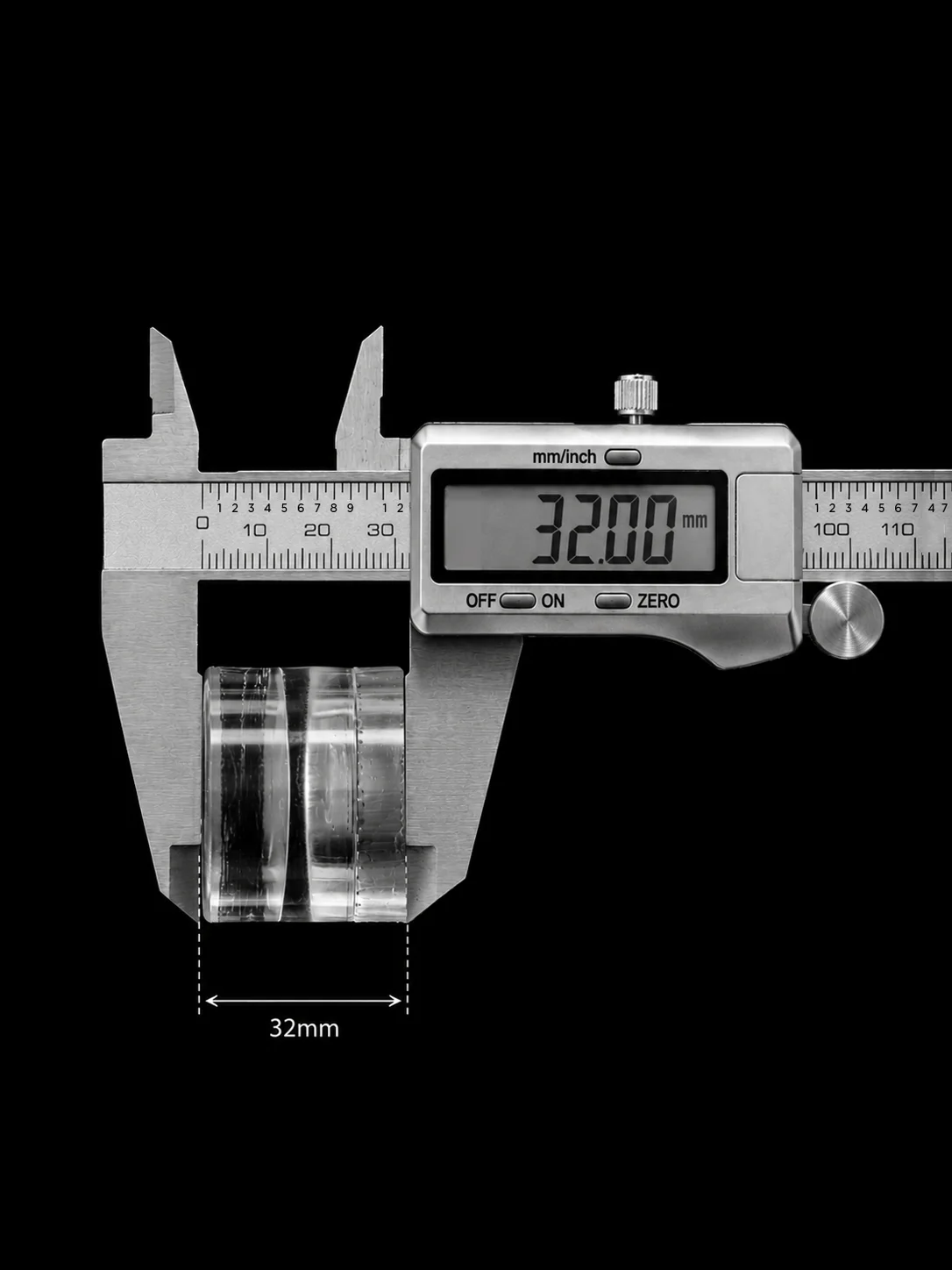

80W RF
32 mm acrylic
Finer Cuts, Narrower Kerf
Powered by a 0.07 mm beam spot, HEXA RF delivers finer cuts and narrower kerf than traditional glass tube lasers.

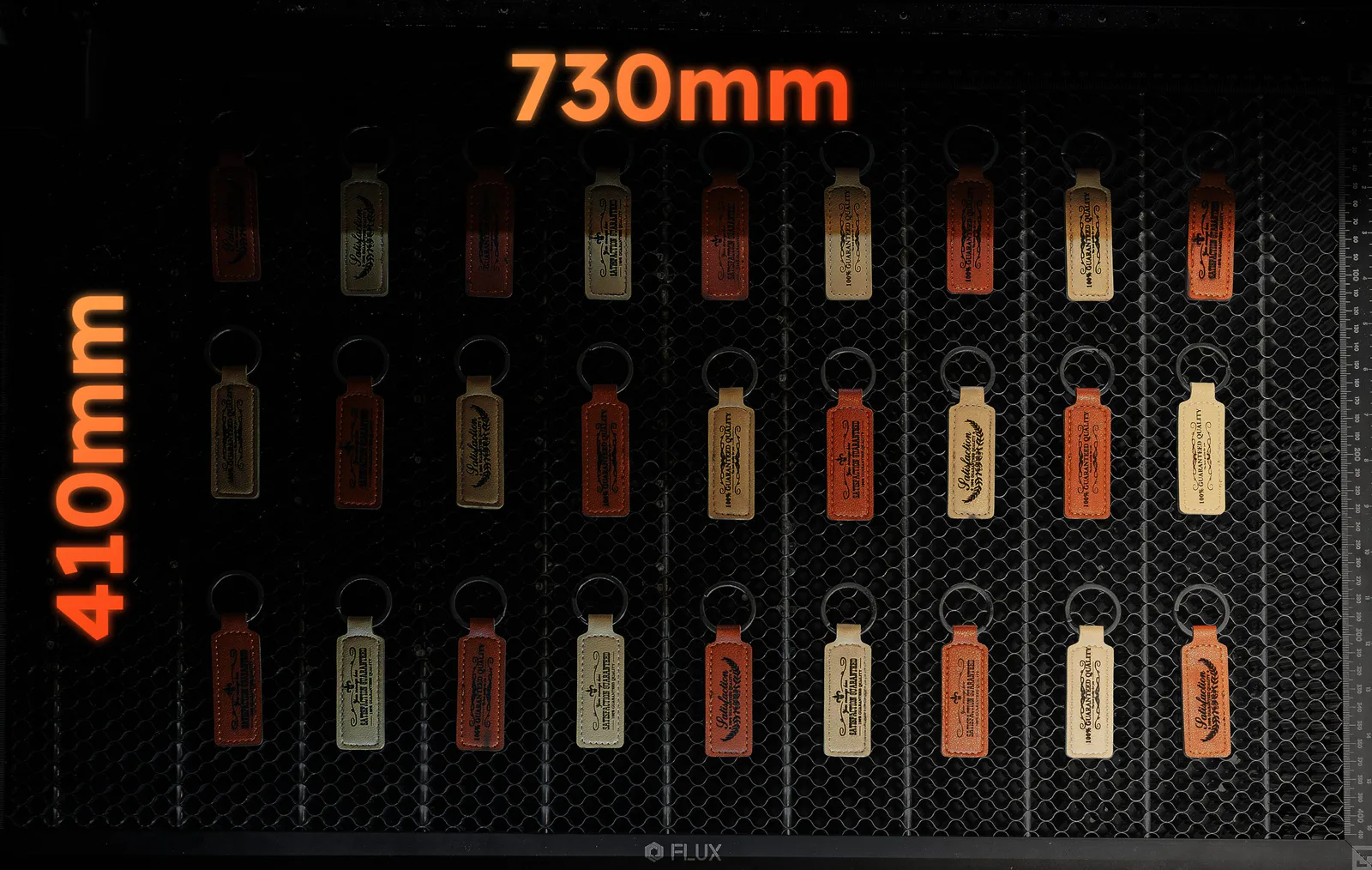

Room to Create for Your Masterpiece.
HEXA RF offers an expansive 730 × 410 mm working area, letting you customize over 50 standard business cards at once or tackle a full-size wooden panel in a single run.

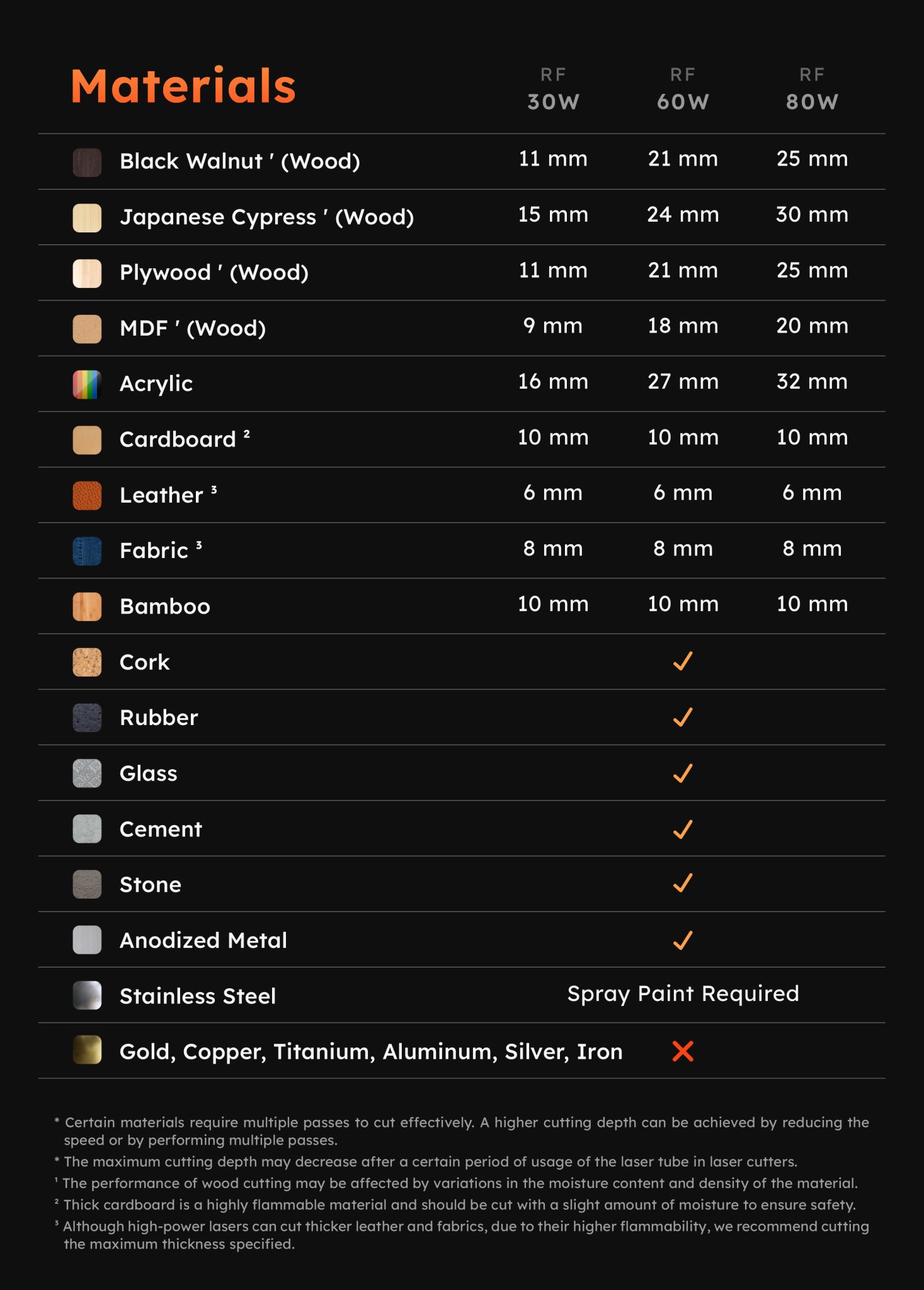

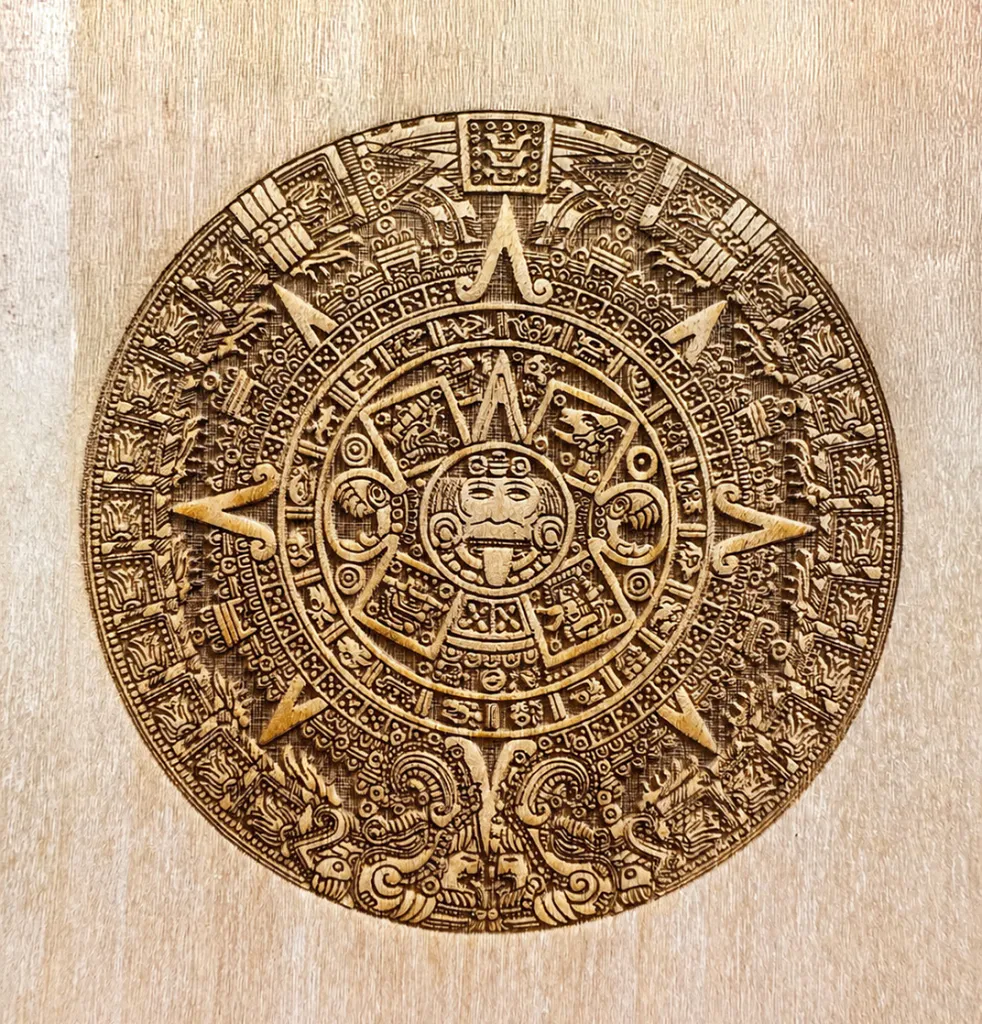

More Materials to Create with.
Designed for Effortless Control
Add-Ons for Expanded Possibilities

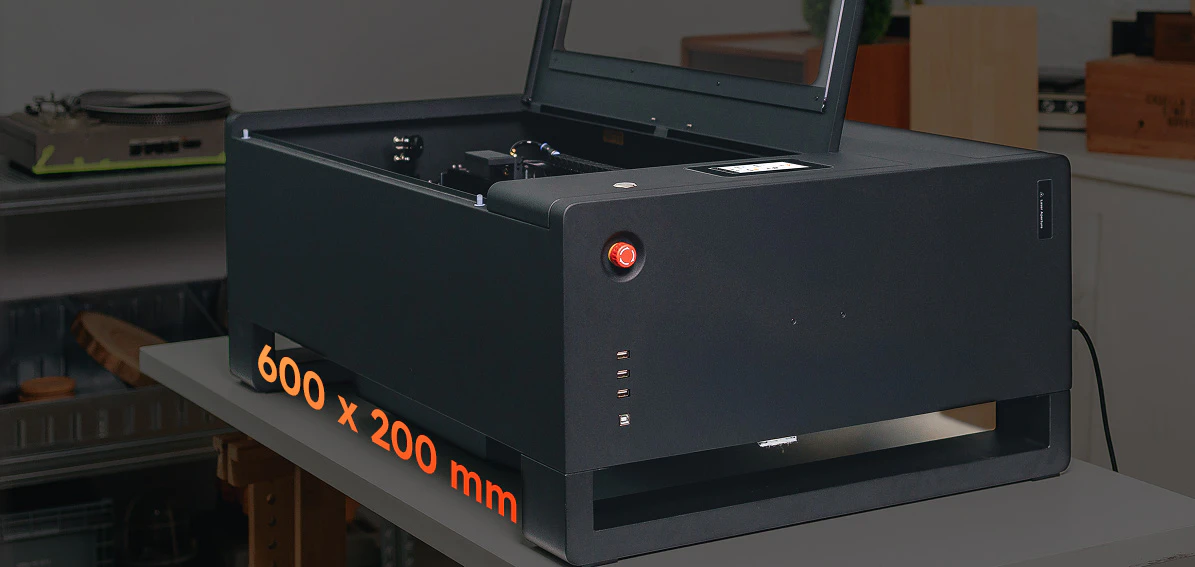

Extension Pocket
Extra spaces, holds thicker materials with ease.

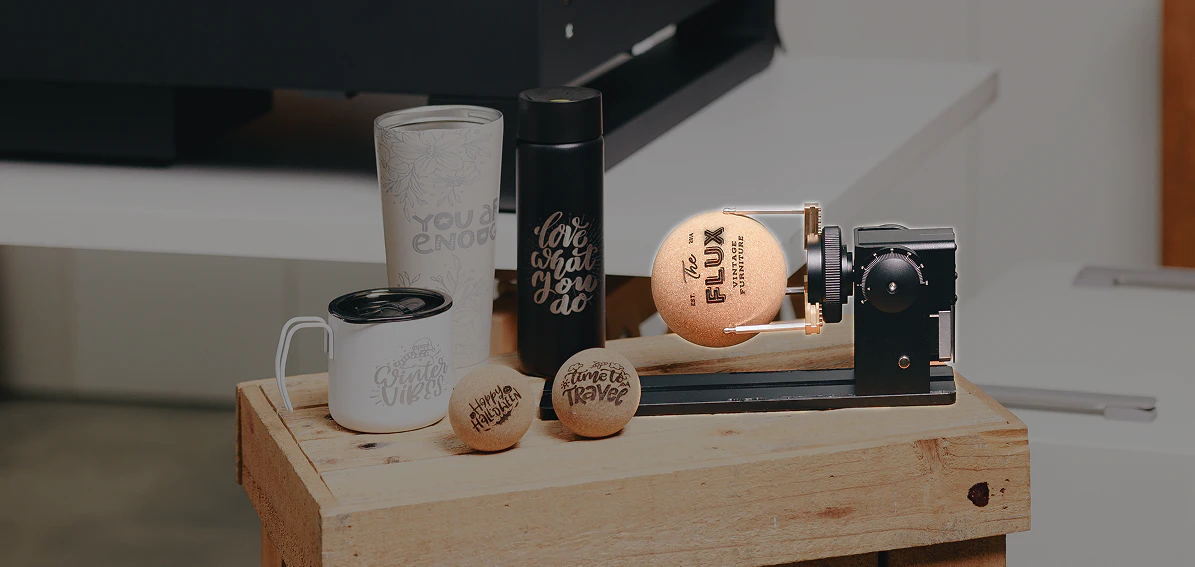

Chuck Rotary
Effortless engraving on cylinders, from glass cups to wine bottles.

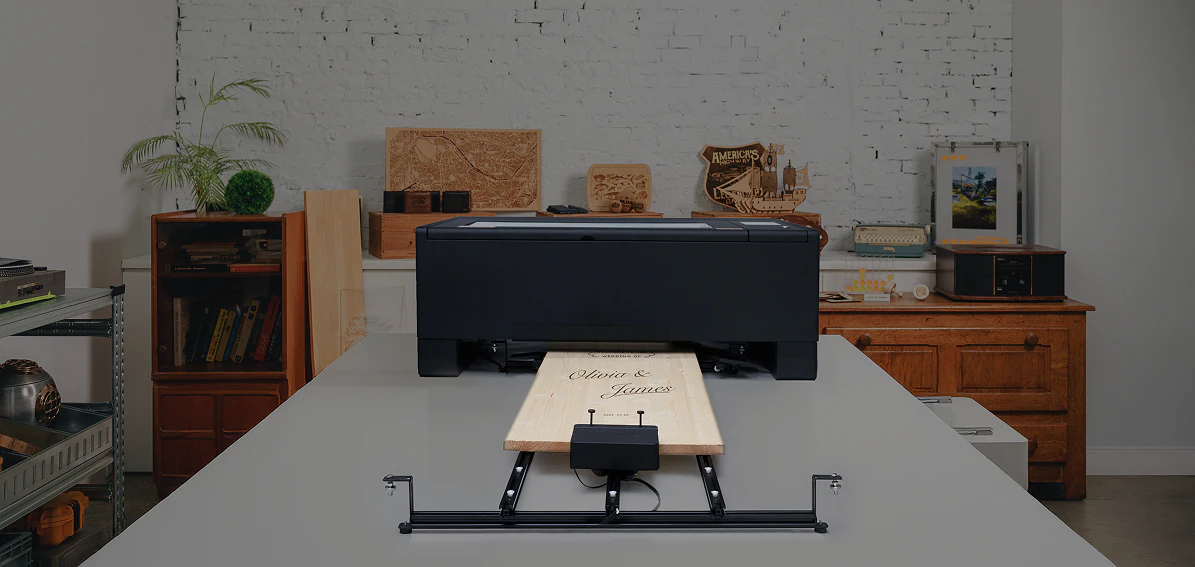

Auto Feeder
Process materials beyond the standard work area

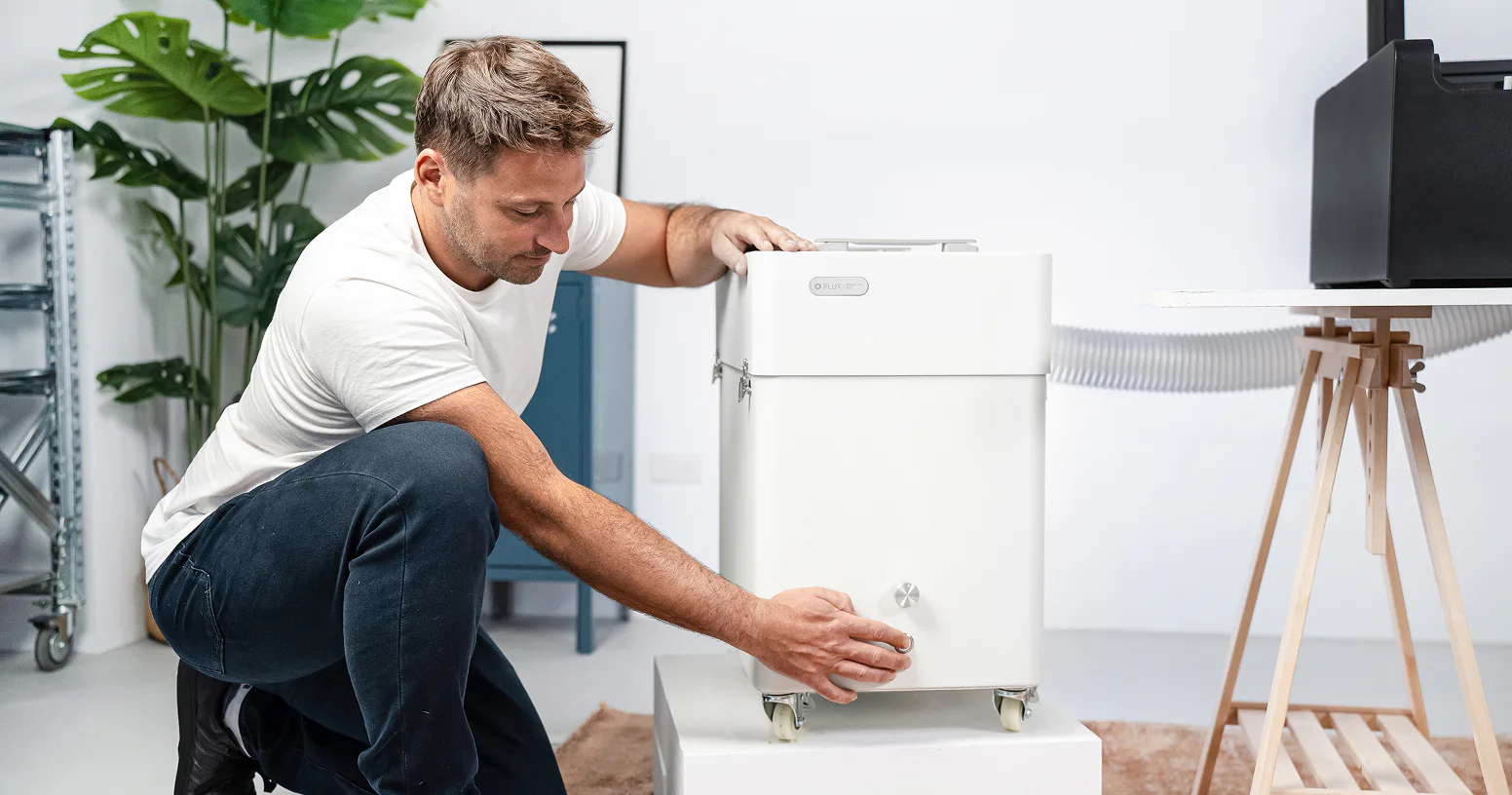

Beam Air Pro, Built for Professional Spaces
3-Stage Filtration System
Adjustable Ventilation

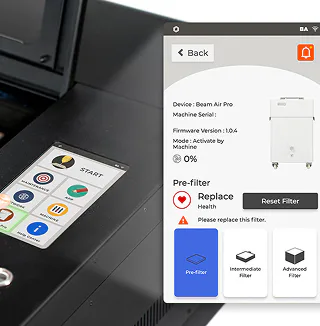

Smart Dashboard to Monitor Filters
Tranquil Trio Configuration
Simple Enough for First-Timers, Powerful Enough for Pros.
Beam Studio, FLUX’s intuitive laser software, comes with built-in material settings and a simple, easy-to-navigate interface. With features like gradients, sharpening, and advanced editing tools, even first-time creators can achieve professional results with ease.
SVG / JPG / PNG / PDF / DXF / AI / WEBP
More Advanced Features Designed For You
Smart One-Click Background Removal
Built-in AI removes complex backgrounds in one click, giving you clean, high-resolution cutouts directly in the software.
Manage Multiple Layers at Once
Set different parameters for each layer, then engrave and cut them in a single job.
Millions of Curated Design Assets
Choose from 7,000,000+ free vector assets in the software, making it easy for beginners to get started.
Go to slide 1 / 7
LightBurn Compatible
Prefer LightBurn? Connect HEXA RF to a familiar professional workflow while keeping Beam Studio ready for camera-guided jobs.
Super Safe and Easy to Maintain
HEXA RF is certified by CE, FCC, and FDA, meeting global safety and quality standards. Additionally, it complies with the IEC60825-1 standard and is SGS-certified, providing users with the highest level of safety assurance.
No Water Cooling, Zero Maintenance
Emergency Button Instant Shutdown
Built-in Flame Sensor Stops Automatically
Fully Enclosed Design Stops When Opened
HEXA RF Spec
Product Spec
| Laser Power | 30W RF CO₂ / 60W RF CO₂ / 80W RF CO₂ |
|---|---|
| Laser Wavelength | 10600 nm |
| Size (L × W × H) | 1110 × 811 × 317 mm |
| Weight | 72 kg (30W) / 74 kg (60W) / 77 kg (80W) |
| Package Size | 1300 × 980 × 460 mm |
| Package Weight | 78 kg (30W) / 79 kg (60W) / 84 kg (80W) |
| Laser Resolution | 2000 DPI |
| Laser Spot | 0.07 mm |
| Max Engraving Speed | 2000 mm/s |
| Max Acceleration | 3G |
| Camera Resolution | HD 16MP (wide-angle) + HD 8MP (close-up) |
| Camera Preview Area | 730 × 410 mm |
| Laser Alignment | Camera Preview / Red Light Preview |
| Auto Focus | Built-in |
| Safety Certification | Class 1 (IEC 60825-1) |
Work Area
| Bed Size | 755 × 455 mm |
|---|---|
| Work Area | 730 × 410 mm |
| Work Area Depth | 60 mm with honeycomb / 125 mm without honeycomb / 215 mm with Extension Pocket Add-on |
Software and Connection
| Control Software | Beam Studio / LightBurn (built-in) |
|---|---|
| Operating System | Windows / macOS / Linux / ChromeOS; iOS / iPadOS / Android via Beam Studio Web |
| I/O Port | USB-A × 3 / USB-B × 1 |
| Connectivity | Wi-Fi / USB / Ethernet (by USB Adaptor) / Direct Network Cable (by USB Adaptor) |
| Control Device | Computer / Mobile / Tablet |
Extension Pocket Add-on
| Size (L × W × H) | 810 × 270 × 165 mm |
|---|---|
| Weight | 7 kg |
| Work Area | 600 × 200 mm |
| Work Area Depth | 215 mm |
Chuck Rotary Add-on
*Requires Extension Pocket Add-on
| Product Size (L × W × H) | 300 × 103 × 125 mm |
|---|---|
| Product Weight | 1.65 kg |
| Package Size | 377 × 192 × 132 mm |
| Package Weight | 2.4 kg |
| Tilt Angle | -30° to 180° |
| Clamping Weight | 1.5 kg |
| Engraving Diameter for Ring | 11 – 145 mm |
| Engraving Diameter for Cylinder Object | 1 – 145 mm |
| Engraving Diameter for Sphere Object | 25 – 130 mm |
| Maximum Engraving Length | 500 mm |
Auto Feeder Add-on
*Requires Extension Pocket Add-on · ¹ with Extension Pocket Add-on & Auto Feeder Extension Kit
| Max Material Width | 500 mm / 525 mm passthrough slot |
|---|---|
| Max Material Thickness | 14 mm passthrough slot / 50 mm with Add-on ¹ |
| Max Process Area Width | 500 mm passthrough slot / 520 mm with Add-on ¹ |
| Max Process Area Length (Depth) | 1610 mm |
| Max Process Area Length Under Machine (Depth) | 1035 mm with Extension Pocket Add-on / 2185 mm with Add-on ¹ |
| Max Clamp Thickness | 20 mm |
