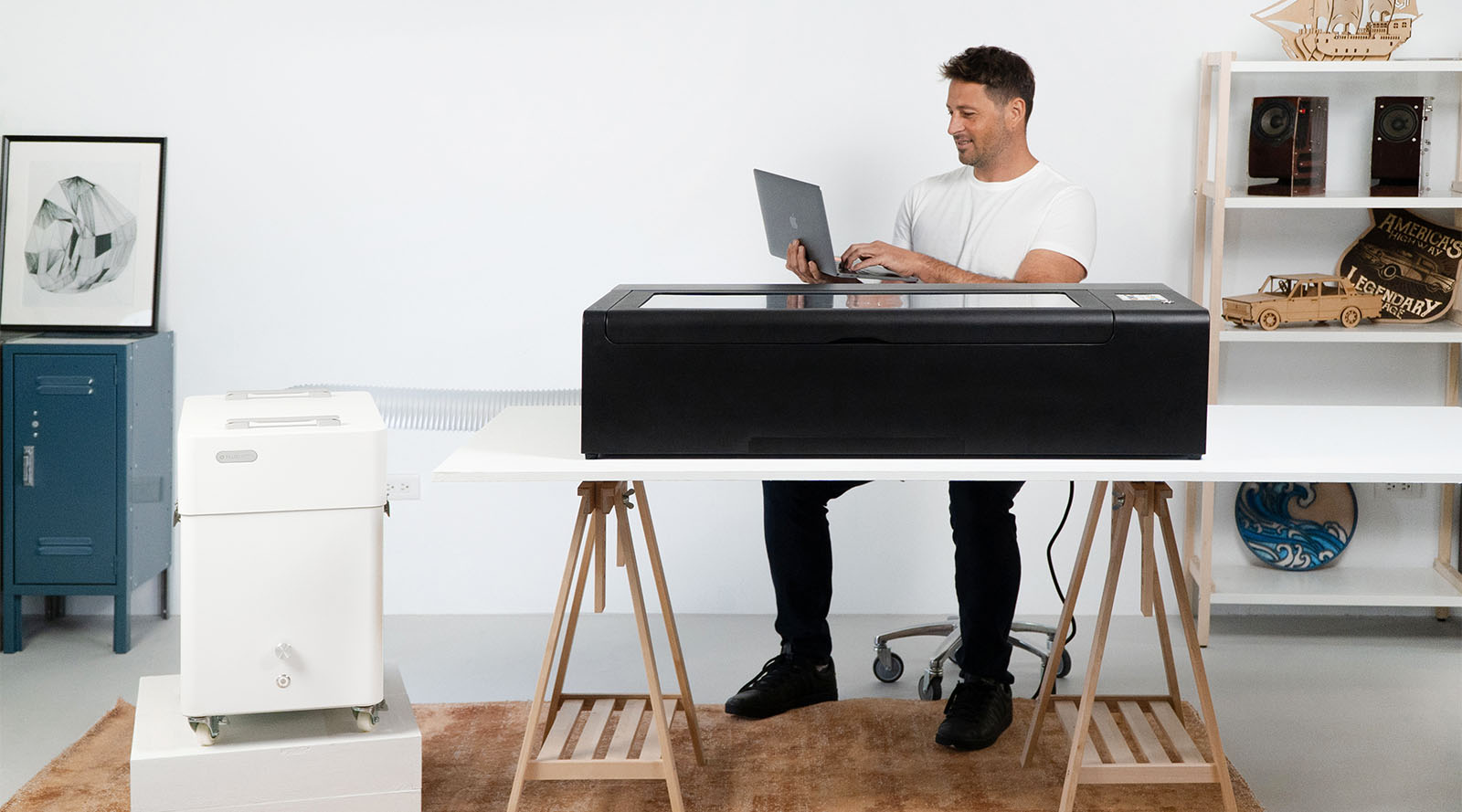

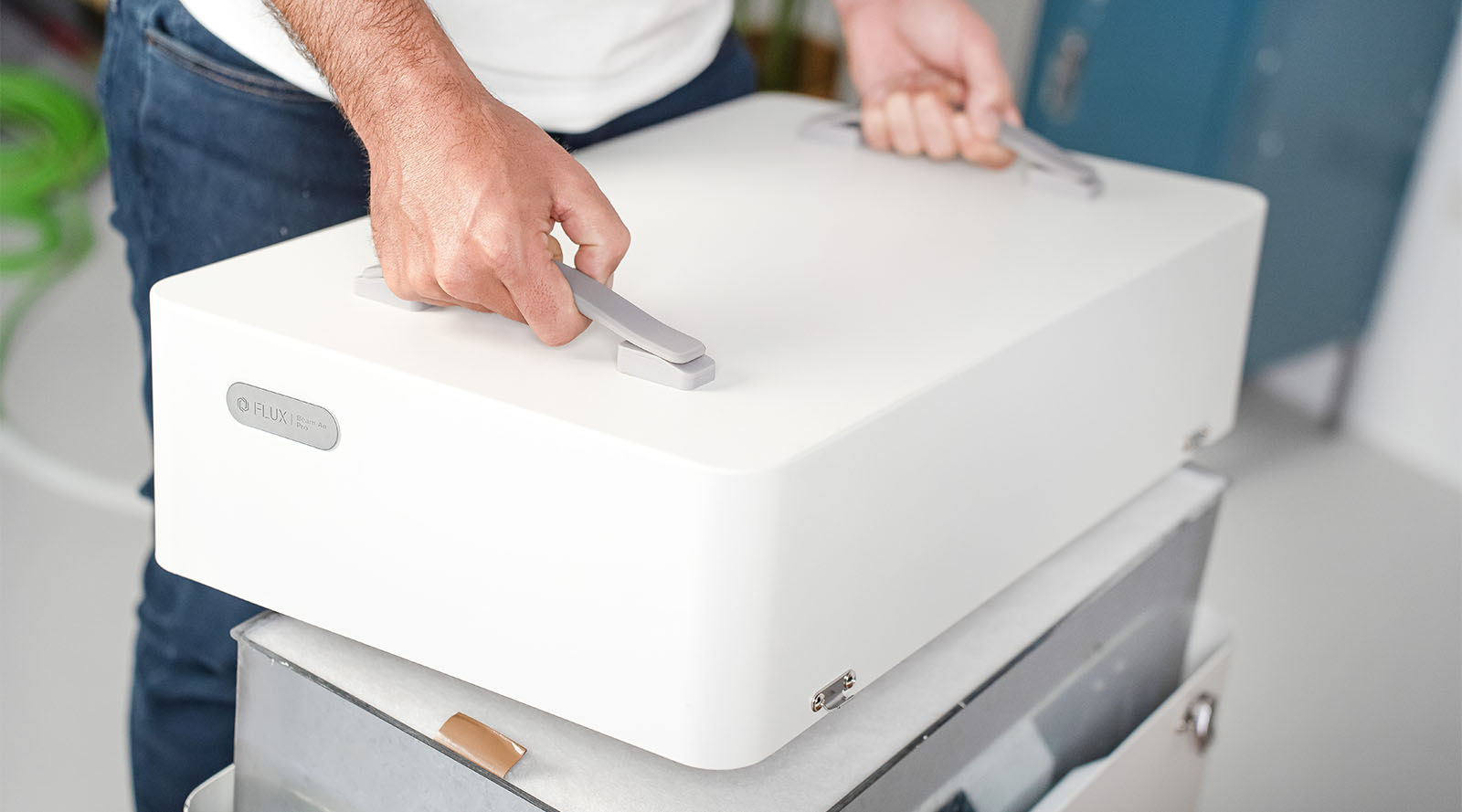

Workspace-Friendly Design
Beam Air Pro features a slim design optimizing depth for essential functions. It ensures optimal airflow, high filter capacity, and low noise. It fits under desks, ideal for different studio types.

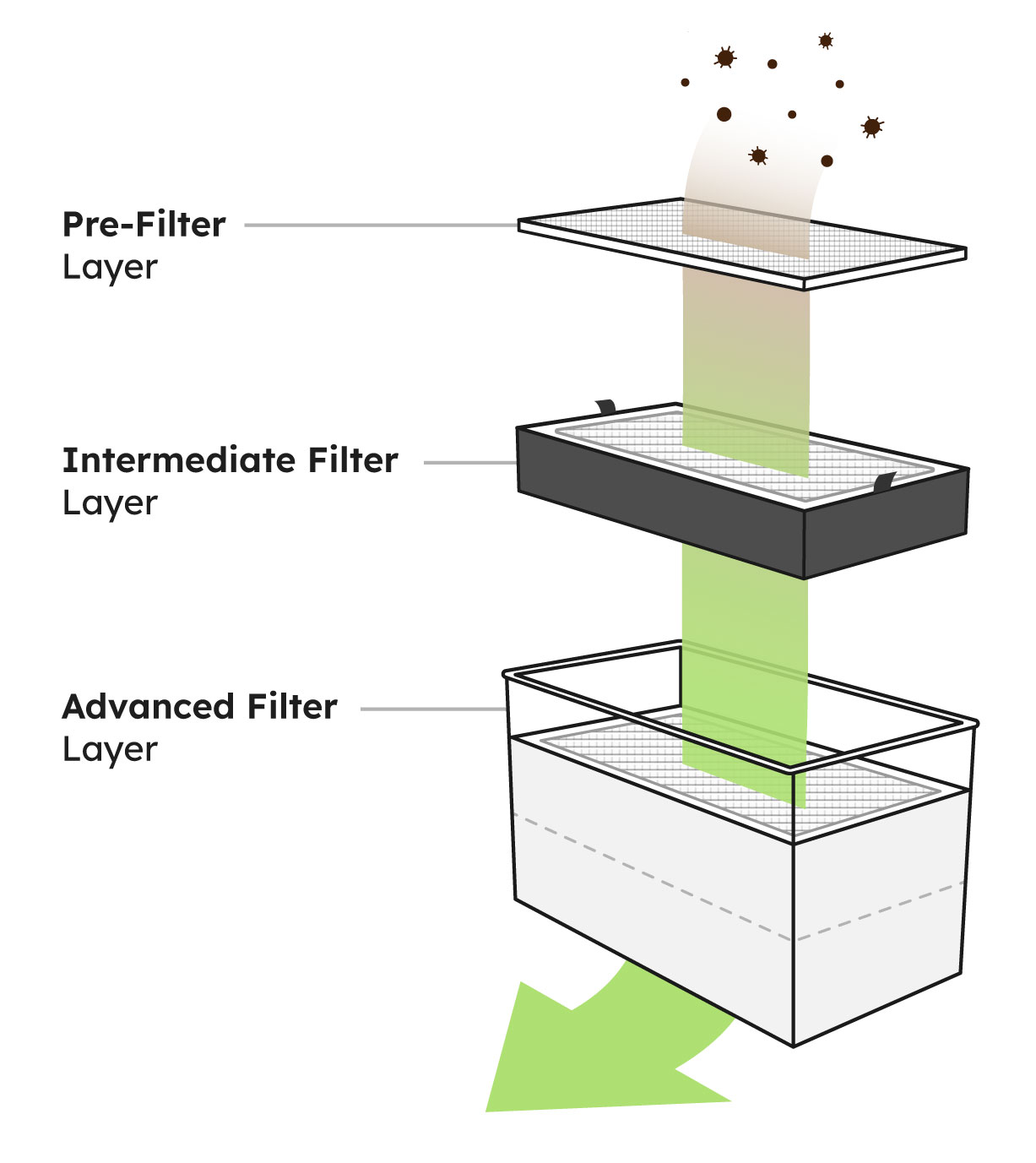

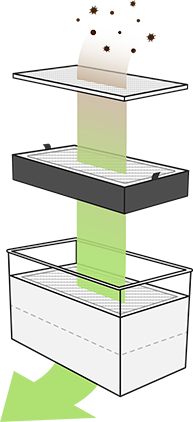

3-Stage Advanced Filtration System
Beam Air Pro employs an advanced 3-stage filtration system, including Pre-Filter, Intermediate, and Advanced Filter Layers.
U16 lab-grade ULPA filter is utilized in the Advanced Filter Layer which ensures high capacity and efficiency for typical applications.

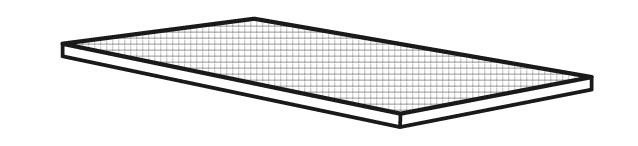

Pre-Filter Layer
Lifespan 4 – 13 hours
Made from high-quality glass fiber, with its 10mm thickness. Pre-Filter Layer ensures optimal performance in capturing and removing large airborne particles, ensuring cleaner, fresher air quality in your workspace.
- Wood Tar Particle
- Acrylic Residues
- Cellulose Particles
- PM 10
Intermediate Filter Layer
Lifespan 32 – 100 hours
This layer features a medical-grade H13 HEPA filter with 6m² of surface area. It effectively traps and captures ultra-fine particles, ensuring removal of contaminants as small as 0.3 microns to maintain a fresher maker space.
- PM 2.5
- PM 10

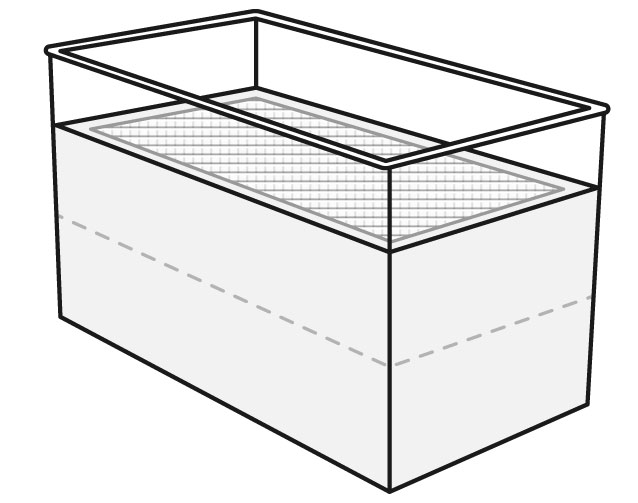

Advanced Filter Layer
Lifespan 250 – 800 hours
Contains a combination of 9kg of activated carbon for gas adsorption and a U16 lab-grade ULPA filter with 6m² of surface area. The ULPA filter captures ultra-fine particles down to 0.12 microns.
- PM 2.5
- PM 10
- TVOC
- HCHO
Smart Indicator Light
Beam Air Pro includes an indicator light: yellow for filter replacement, red for malfunctions, and blue for firmware updates, facilitating real-time status monitoring.
Active Volume Control
FLUX Laser’s smart dashboard monitors and tracks the duration of filter usage, upon identifying a requirement for filter replacement, it seamlessly engages its active volume control mechanism, ensuring the filtration system operates at peak efficiency and upholds its performance standards.

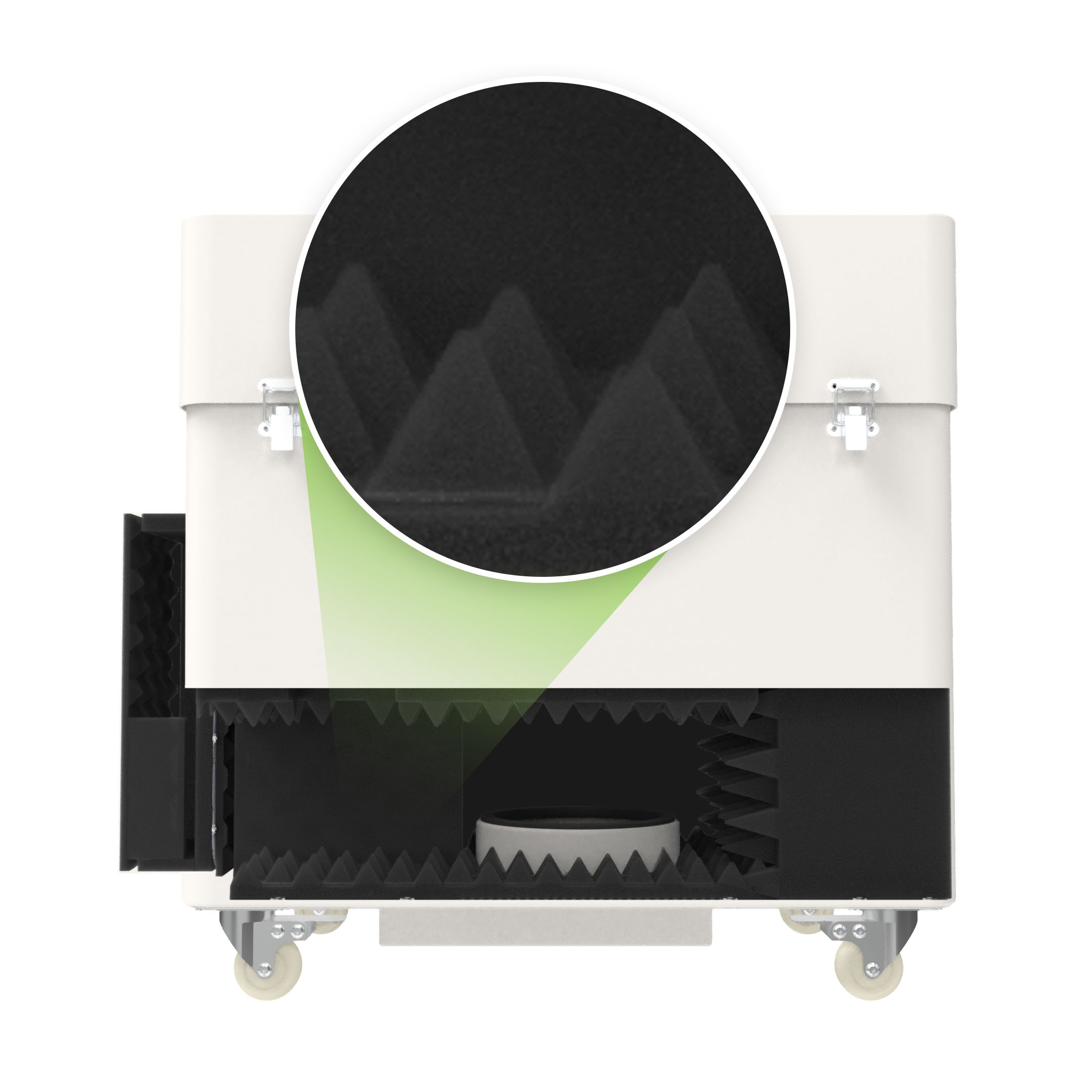

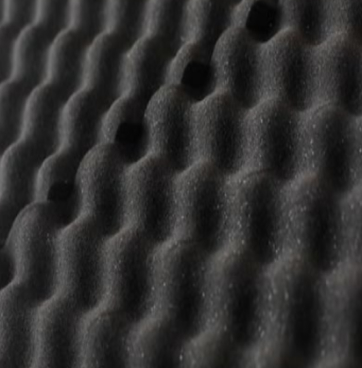

Tranquil Trio Configuration
Beam Air Pro incorporates three distinct components to achieve effective noise reduction. Firstly, sound-absorbing sponges are strategically placed beside the internal fan. Additionally, specialized enclosures are designed at the back and bottom of the machine to facilitate Exhaust Noise Reduction, ensuring a quieter operational environment.

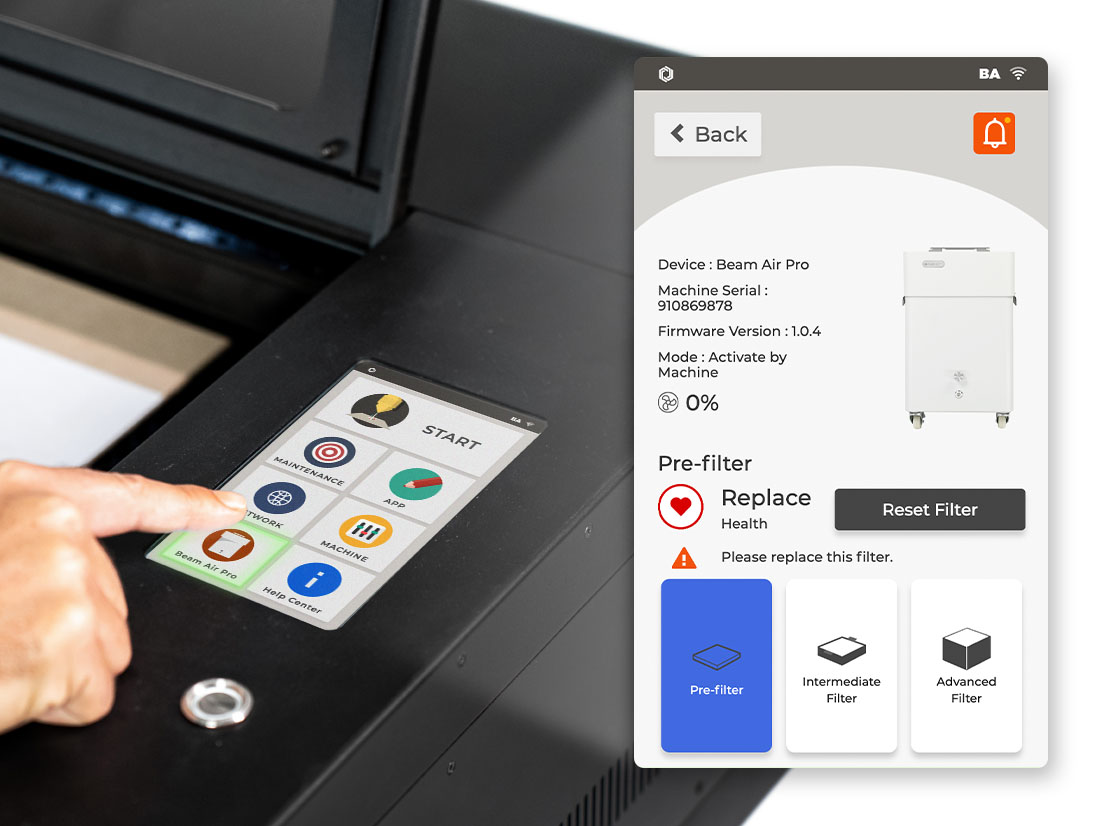

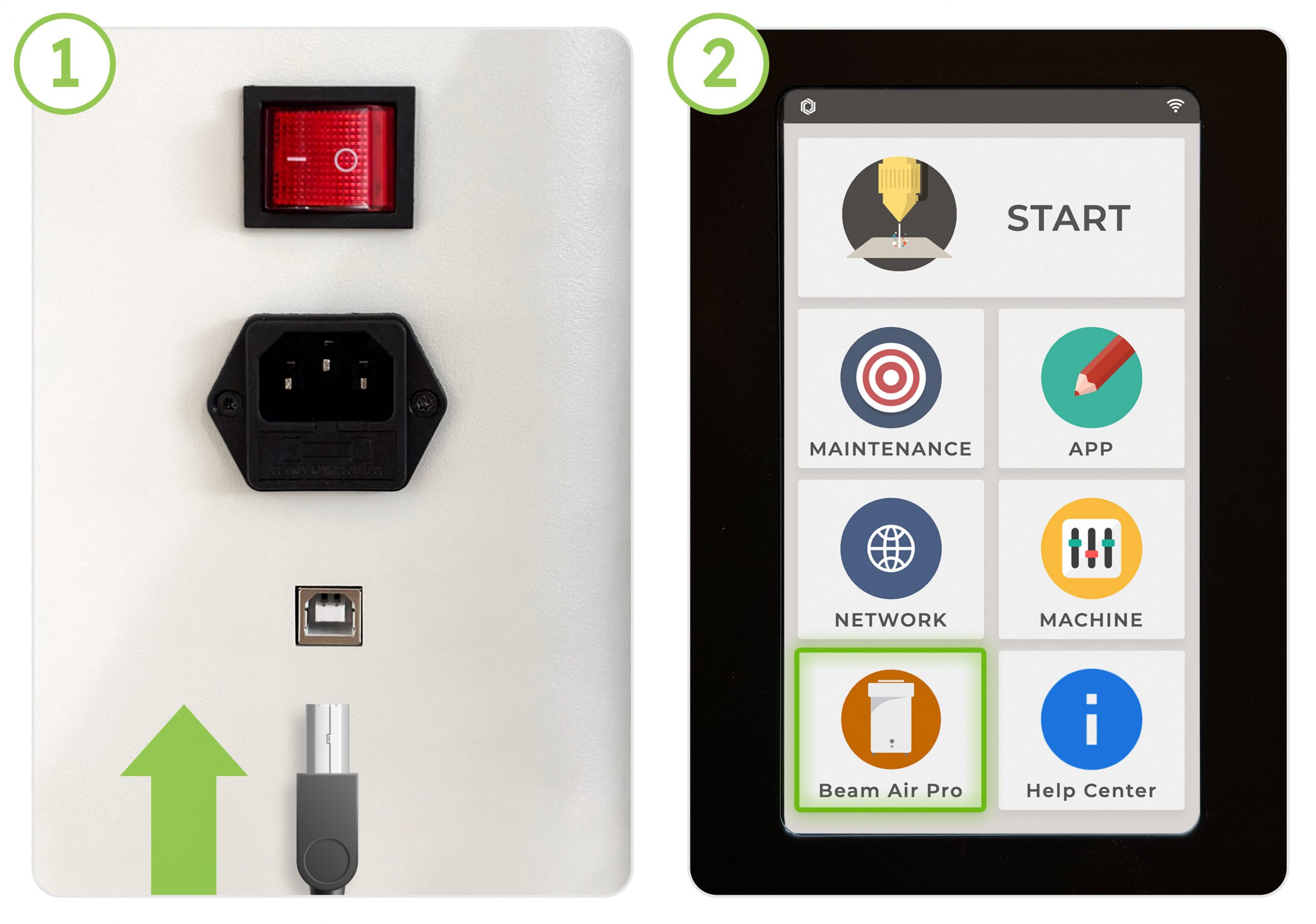

Auto Connect to Your FLUX Lasers
By connecting the Beam Air to any FLUX laser cutter via a USB-B cable, it will automatically activate at the start of the laser cutting process and deactivate when completed. You can monitor your Beam Air Pro directly from your laser cutter's screen.

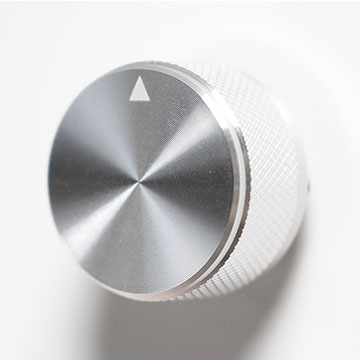

Adjustable Ventilation
Beam Air Pro features an adjustable knob for controlling air ventilation and reducing noise in your workspace.
Beam Air Pro Specifications
Technical specifications
- Weight
- 49 kg
- Dimensions
- 682 x 384 x 608 mm
- Inlet Diameter
- Φ100 mm
- Outlet Diameter
- Φ118 mm
- Acoustic Level
- < 80 dB (A)
- Power
- 100 - 250 V
- Filter
- Pre-Filter, H13 Intermediate filter, Advanced filter (Activated Charcoal Filter + U16 Advanced filter)
- Operating Temperature
- 10 - 35°C
- Operating Humidity
- Min 30% RH low to 15°C
- I/O Port
- USB-B
- Compatibility
- FLUX Lasers & all other brands
Find Your Beam Air
Scroll horizontally to compare Beam Air models
| Beam Air and Beam Air Pro comparison | ||
|---|---|---|
| Weight | 17 kg | 49 kg |
| Dimensions | 490 x 260 x 470 mm | 682 x 384 x 608 mm |
| Filter | Pre-Filter, Medium-efficiency filter, Activated charcoal filter, HEPA filter | Pre-Filter, H13 Intermediate filter, Advanced filter (Activated Charcoal Filter + U16 Advanced filter) |
| Filter Replacement Monitor | Not available | Yes |
| Smart Indicator Light | Not available | Yes |
| Active Volume Control | Not available | Yes |
| Compatibility | FLUX Lasers & all other brands | FLUX Lasers & all other brands |
