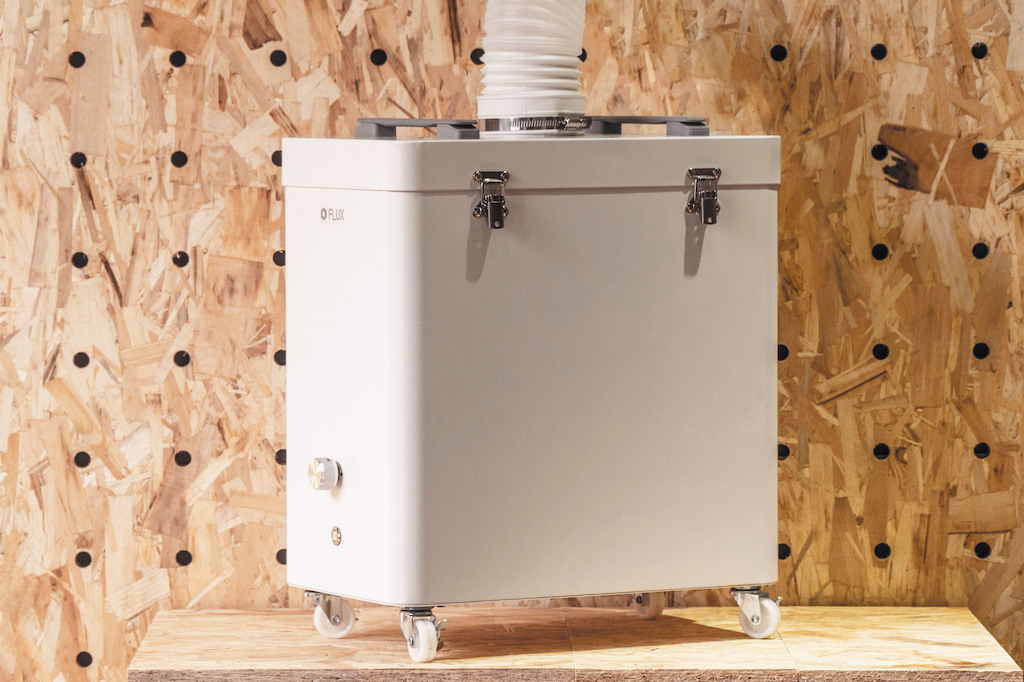

Adjustable Ventilation Makes A Friendly Workspace
The adjustable knob design allows you to control the amount of air ventilation and reduces noise for a quiet working space.

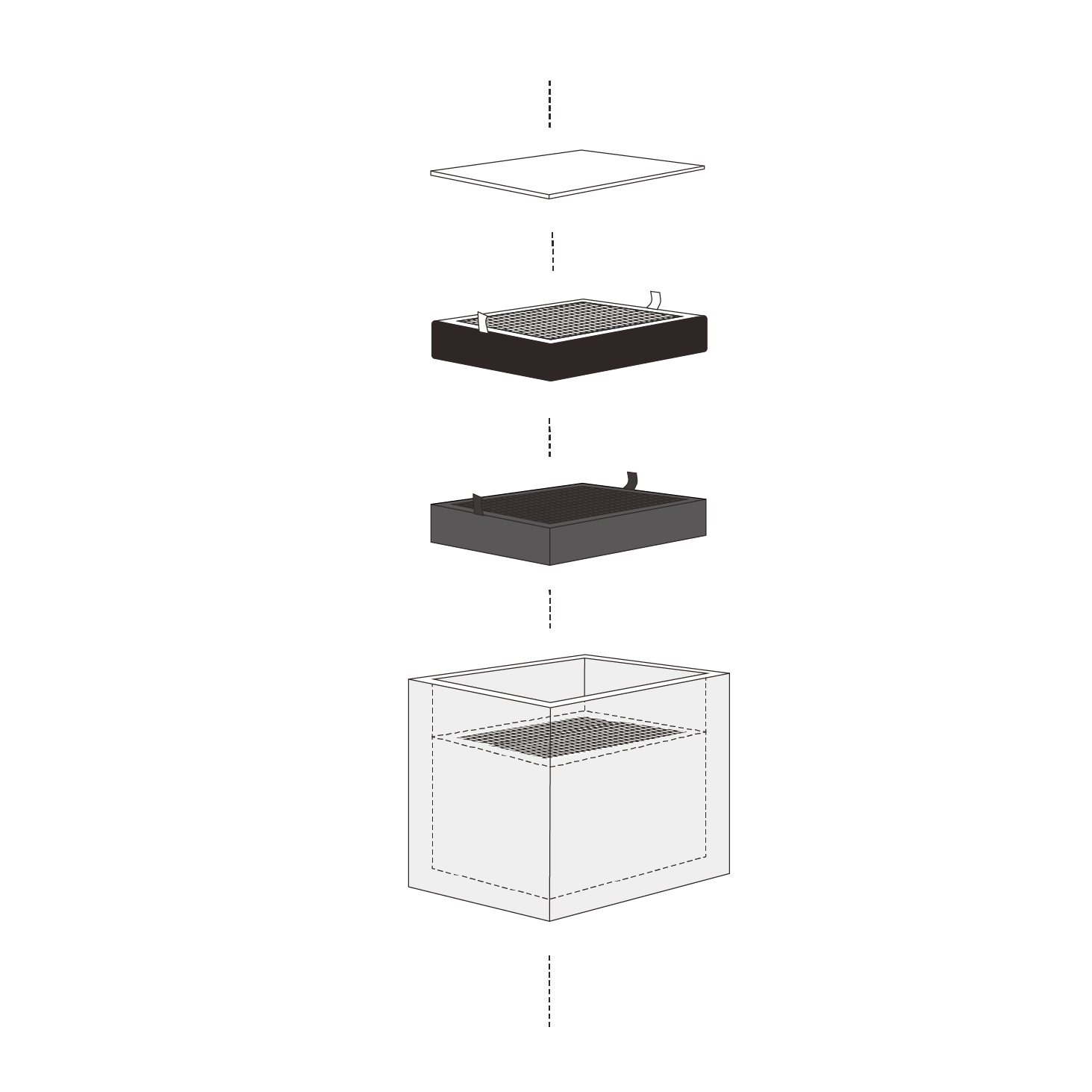

4-Layer Filter for Ultra Clean Air
Beam Air uses a highly effective 4-layer filtration system and a brushless motor with superior air intake to block harmful molecules and odors generated during laser engraving.

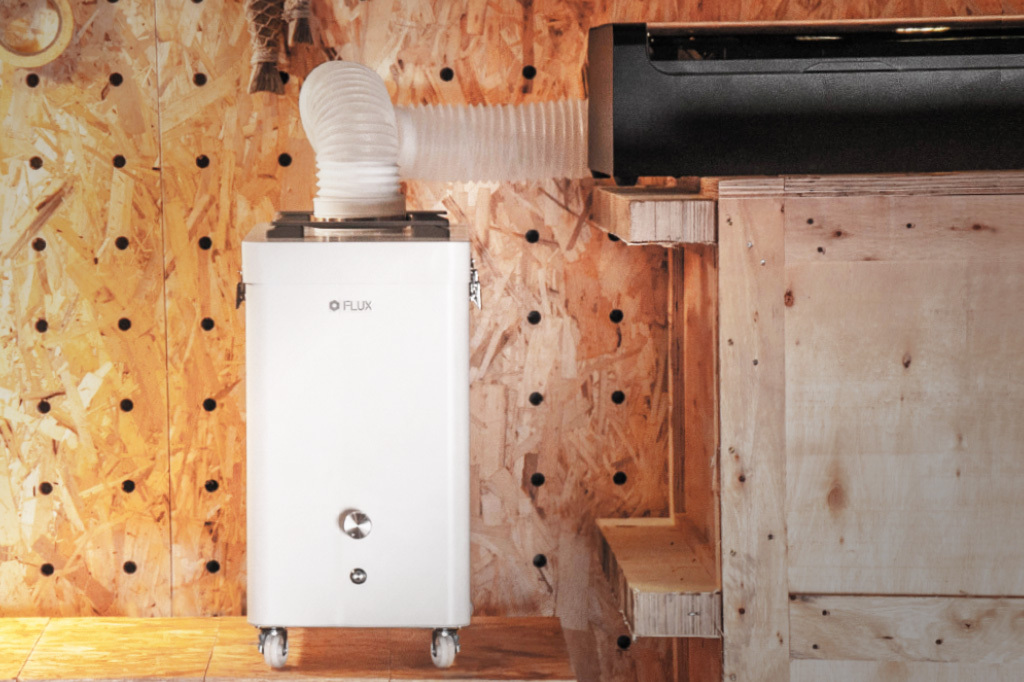

Automatic Filtering Saves Energy
By connecting Beam Air to any FLUX laser cutter with a USB-B cable, Beam Air will turn on automatically when laser cutting starts and off when finishes.
Compatible with Other Laser Cutting Machines
Beam Air works with any laser cutting machine that comes with a 10cm air-outlet diameter.
Simple and Elegant
Compact with a small footprint, Beam Air even has wheels attached to fit perfectly into your studio.
Materials & Attrition
Scroll horizontally to read all material ratings
| Material | Dust-Removal | Deodorization | Attrition |
|---|---|---|---|
| Paper | Great | Great | Great |
| Leather | Great | Great | Good |
| Wood | Great | Great | Good |
| Acrylic | Great | Good | Good |
| MDF board | Great | Great | Reduces Faster |
- Great
- Good
- Reduces Faster
Specifications
General
- Dimensions
- 470 x 260 x 490 mm
- Weight
- 17 kg
- Power
- AC 110V
- Max. fan volume
- 350CFM, 9800L per min
- Voltage
- 180W
- Inlet diameter
- Φ 100mm
- Filter
- Pre-Filter, H13 HEPA filter, activated charcoal filter
Filter Replacement
- Pre-filter
- 10 – 30 hr
- Medium efficiency filter
- 50 – 150 hr
- Activated charcoal filter
- 300 – 600 hr
- HEPA filter
- 100 – 300 hr
